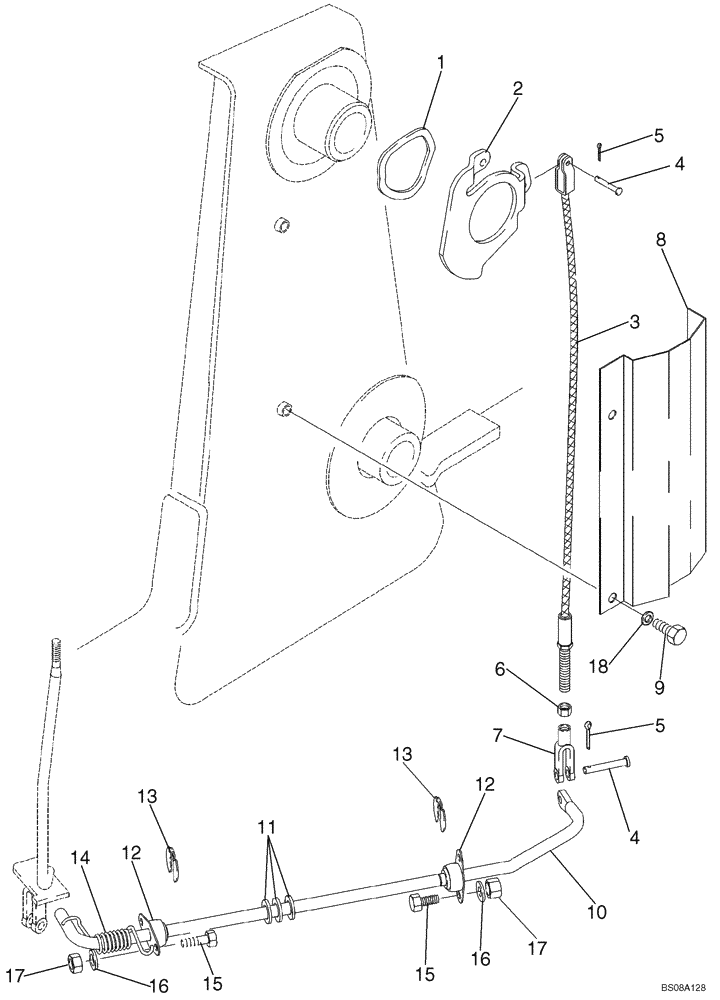

Запчасти Case 570MXT (09-03) - CONTROLS - LOADER SELF-LEVELING (09) - CHASSIS/ATTACHMENTS

1

137283A1

WAVE WASHER,85.6mm ID x 109.22mm OD x 1.14mm Thk

1шт.

2

142404A1

CAM

Self Leveling (Return to Dig)

1шт.

3

87313378

FLEXIBLE CABLE,663mm L, 8.15mm ID, 5/16" - 24 RH Thd

663 mm (26-1/8 in)

1шт.

4

D149287

PIN,7.9mm OD x 26.72mm L

2шт.

5

432-612

COTTER PIN,3/32" x 3/4"

2шт.

6

425-115

NUT,5/16"-24, G5

1шт.

7

239406A1

CLEVIS,5/16-24"

1шт.

8

139865A1

SHIELD

1шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

87417601

ROD ASSY.

642 mm (25 - 9/32 in) From End to End; Incl. Refs. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Rod

1шт.

11

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

49/64 x 1-15/64 x 1/32

3шт.

12

L15401

BEARING,15.89mm ID

2шт.

13

D143591

RING, SNAP,12.7mm ID, Ext

RING SNAP

2шт.

14

124721A1

SPRING,Extension, 19mm ID x 61mm L

1шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
