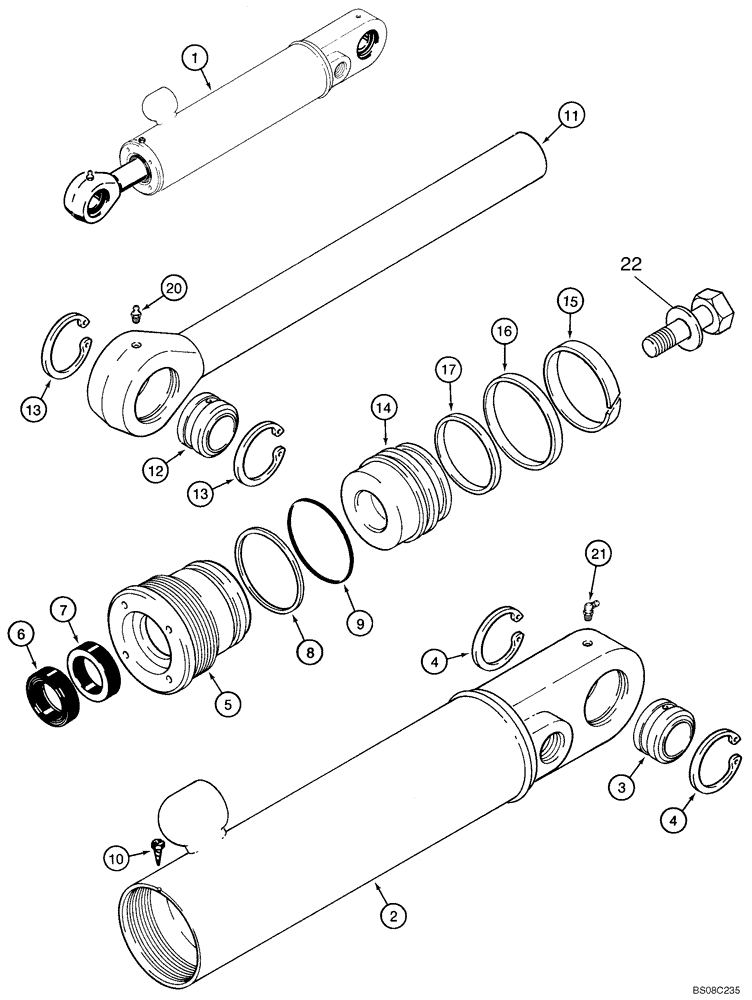

Запчасти Case 570MXT (08-30) - CYLINDER ASSY - HITCH PITCH, THREE POINT (08) - HYDRAULICS

1

87602156

HYDRAULIC CYLINDER,Double Acting, 31.8mm Rod, 178mm Stroke

Three-Point Hitch Pitch, 64 ID x 178 mm strk, Inc. Refs. 2 - 22

1шт.

1

87602156R

REMAN-HYD CYLINDER

Reman Three-Point Hitch Pitch, 64 ID x 178 mm strk, Inc. Refs. 2 - 22

1шт.

1

87602156C

CORE-HYD CYLINDER

Return Number

1шт.

1

84214699

CYLINDER,Double Acting, 31.8mm Rod, 178mm Stroke

Thre Point Hitch Pitch, Inc. 2-22

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

138236A1

TUBE,63.5mm Dia

Use with 87602156, Inc 3,4

1шт.

2

84214713

CYLINDER,63.42mm Bore Dia

Use with 84214699, Inc 3,4

1шт.

3

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

1шт.

4

81821513

SNAP RING,1 5/8" OD x 0.065" Thk

Snap

2шт.

5

118115A2

GLAND

1шт.

86982374

SEAL KIT

Use with 87602156, Inc 6-9, 15-17

1шт.

183286A1

SEAL KIT

Use with 84214699, Inc 6-9, 15-17

1шт.

6

D95141

WIPER SEAL

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

1шт.

8

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

9

510185

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

10

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

11

87613501

PISTON ROD,31.8mm Dia

Use with 87602156, Inc. 12,13

1шт.

11

138847A1

PISTON ROD

Use with 84214699, Inc. 12,13

1шт.

12

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

1шт.

13

81821513

SNAP RING,1 5/8" OD x 0.065" Thk

Snap

2шт.

14

137528A1

PISTON

1шт.

15

G100714

RING

1шт.

16

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

1шт.

17

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

1шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

21

80719

LUBE NIPPLE,1/8" NPT

1шт.

22

86982434

SPECIAL BOLT,3/4" - 16 x 2"

3/4 x 2.0; Includes Washer

1шт.
