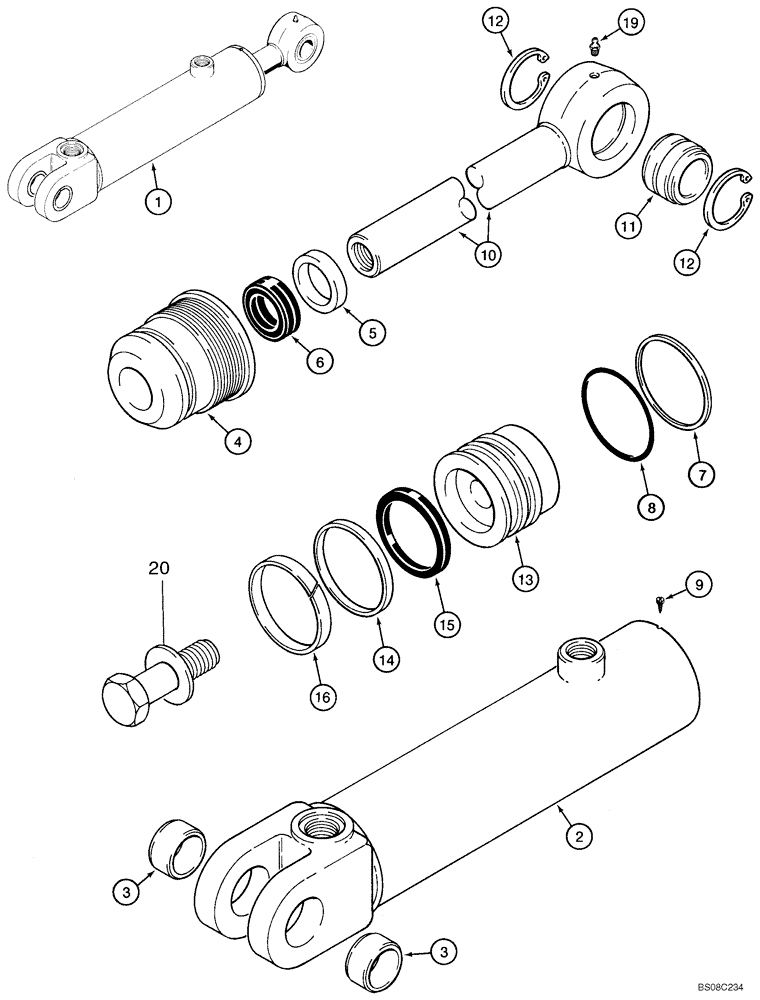

Запчасти Case 570MXT (08-29) - CYLINDER ASSY - HITCH TILT, THREE POINT (08) - HYDRAULICS

1

86982482

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

Three-Point Hitch Tilt, 64 ID x 160 mm strk, Incl. Refs. 2- 20

1-2шт.

2

137913A1

TUBE,356.5 mm Length

Incl. Ref. 3

1шт.

3

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

2шт.

4

118115A2

GLAND

1шт.

86982384

SEAL KIT

Seal Kit Includes Ref 5 - 8, 14 - 16

1шт.

5

D95141

WIPER SEAL

1шт.

6

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

1шт.

7

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

8

510185

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

9

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

10

137917A1

PISTON ROD

32 mm (1-1/4 in) dia, Incl. Refs. 11, 12

1шт.

11

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

1шт.

12

271429

SNAP RING,1.625", Int, #162

2шт.

13

137528A1

PISTON

1шт.

14

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

1шт.

15

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

1шт.

16

G100714

RING

1шт.

19

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

20

86982434

SPECIAL BOLT,3/4" - 16 x 2"

3/4 x 2.0; Includes Washer

1шт.
