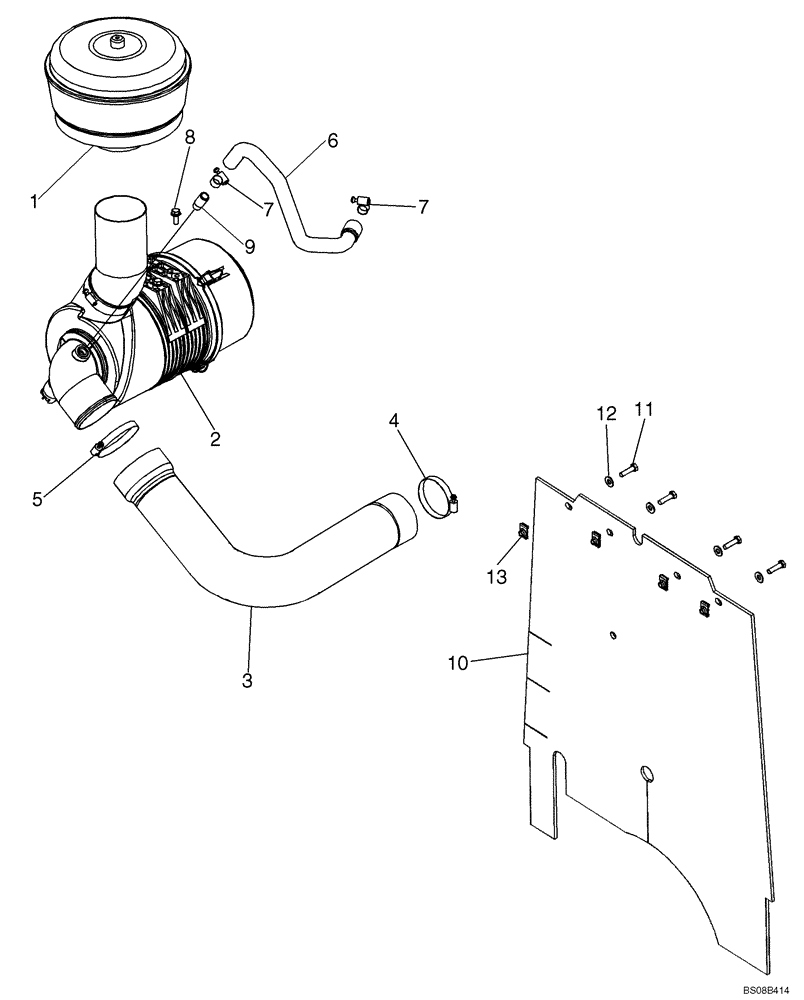

Запчасти Case 570MXT (02-04) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

228120A1

PRECLEANER

See Figure 02-05

1шт.

2

87687227

AIR CLEANER

Air Cleaner Assy; See Figure 02-05

1шт.

3

87687235

INTAKE AIR HOSE,76.00 mm ID, 88.90 mm ID x 300.00 mm, SAE J20

Hose, Air Cleaner To Engine

1шт.

4

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

1шт.

5

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

6

87687237

HOSE,17.00 mm ID, 22.00 mm ID x 176.90 mm, SAE J30R6

4шт.

7

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

8

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

9

L17985

FITTING,3/8" - 18 NPT

1шт.

10

87687190

CURTAIN

Curtain, Barrier; Heat and Noise Reduction

1шт.

11

87026277

BOLT,Hex, M8 x 30mm, Cl 10.9, Full Thd

4шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

13

833-40408

NUT,M8, U

4шт.
