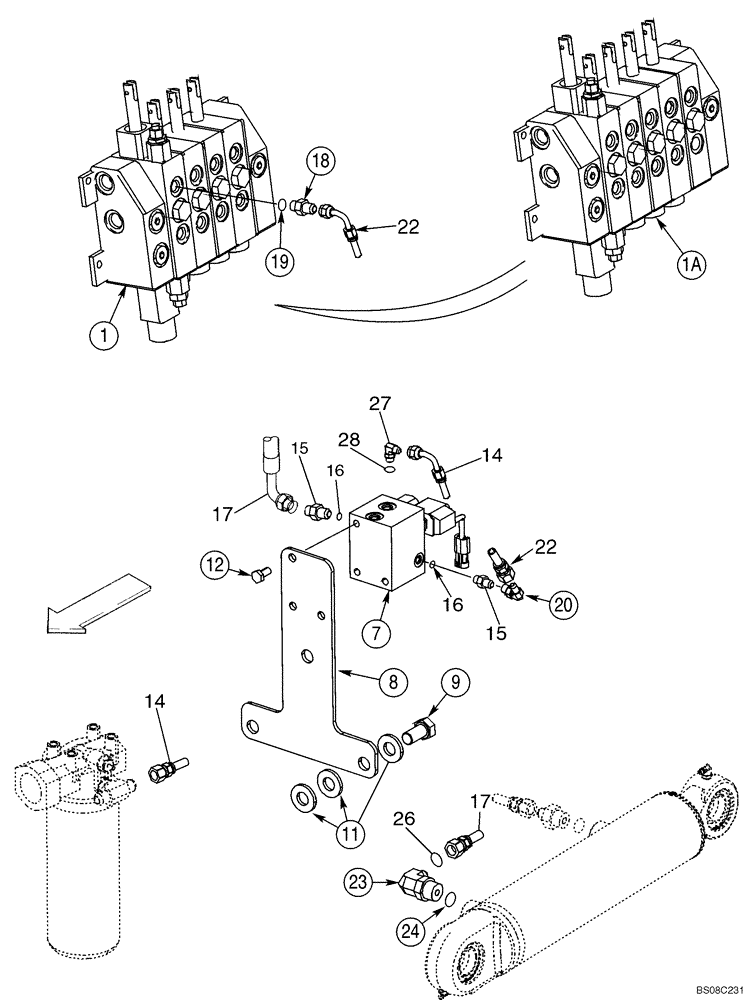

Запчасти Case 570MXT (08-11) - HYDRAULICS - HITCH LOCK VALVE, THREE POINT (08) - HYDRAULICS

1

392413A1

VALVE, CONTROL

Three Point Hitch; Four Spool; Models With Switch On Lift Spool; For Lock Valve, See Figure 08-16

1шт.

1a

405818A1

VALVE, CONTROL

Three Point Hitch; Five Spool; See Figure 08-17

1шт.

7

411316A1

VALVE, CONTROL

Lock Valve; See Figure 08-22

1шт.

8

86981889

PLATE

1шт.

9

614-18035

BOLT,Hex, M18 x 2.5 x 35mm, Cl 8.8, Full Thd

3шт.

11

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

9шт.

12

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

14

86982168

HOSE ASSY.

850 mm; Return; Holding Valve To Filter

1шт.

15

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. 16

2шт.

16

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

17

87561386

HOSE ASSY.,10mm ID x 855mm L, SAE 100R17

855 mm (33-11/16 in); Lift Cylinder Closed End

1шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 19

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

22

87573253

HOSE ASSY.,10mm ID x 1306mm L, SAE 100R17

1306 mm (51-7/16 in); Hitch Valve to Lock Valve

1шт.

23

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

86981925

RESTRICTOR

1шт.

27

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 28

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
