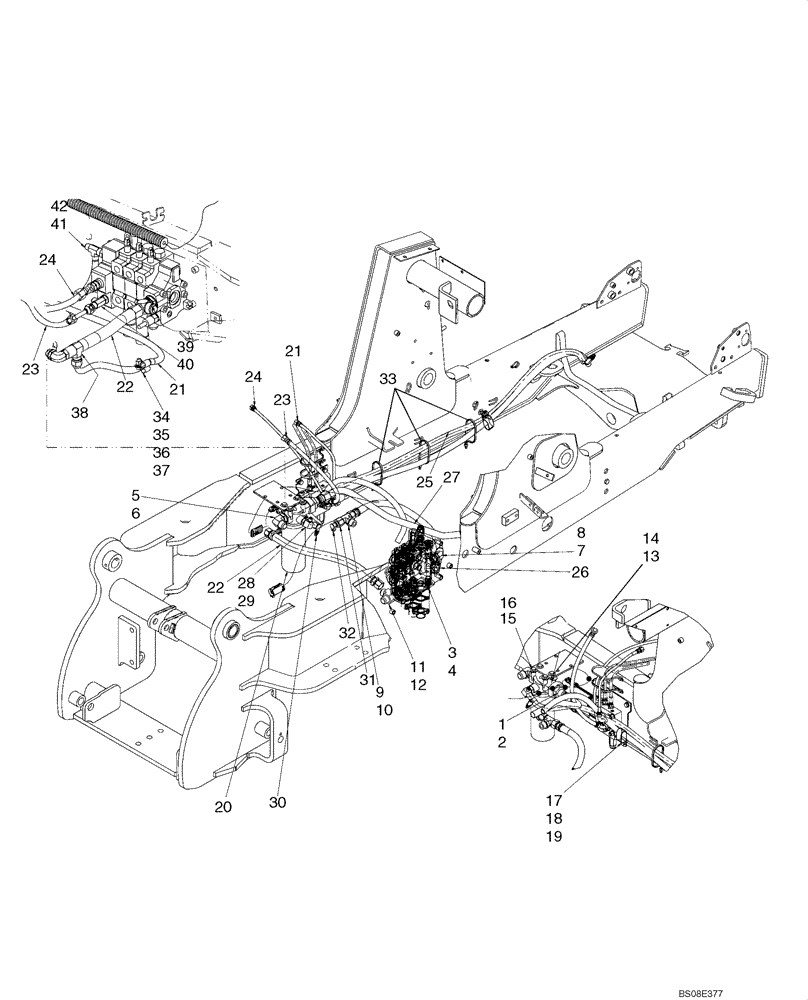

Запчасти Case 570MXT (08-07A) - HYDRAULICS - COUPLER, LOADER TOOL QUICK - CONTROL VALVE TO FILTER (08) - HYDRAULICS

1

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl. 2

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

3

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 4

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 8

2шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. 14

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

5шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

19

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

20

87440045

FILTER ASSY

Hydraulic Oil; See Figure 08-24

1шт.

21

87454402

HOSE ASSY.,3/8" ID x 980mm L, Flex-Pak 2

980 mm

1шт.

22

87454466

HOSE ASSY.,3/4" x 565mm L, 12-AT3K

Filter Return; 565 mm (22-1/4 in)

1шт.

23

87487871

HOSE ASSY.,10mm ID x 915mm L, SAE 100R16

Coupler Pressure; 915 mm (36 in)

1шт.

24

87488009

HOSE ASSY.,6.3mm ID x 850mm L, SAE 100R16

Coupler Load Sense; 850 mm (33-1/2 in)

1шт.

25

87741913

HOSE,15.88mm ID x 1430mm L, SAE 100R16

Filter to Cooler

1шт.

26

87746453

HOSE ASSY.,19mm ID x 710mm L, SAE 100R17

Front Pump Section; 710 mm (28 in)

1шт.

27

87748435

HYD TUBE,25.4mm OD

Return Filter To Tank

1шт.

28

301104A1

FITTING,5/8" OD x 7/8" - 14 ORFS x 9/16" - 18 JIC

Special Tee W/Hose Barb, Incl. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

328186A1

HOSE CLAMP,400mm L

3шт.

31

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

1шт.

32

H434163

DUST CAP

1шт.

33

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

34

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

35

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

36

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

37

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

38

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

1шт.

39

218-5292

TEE,37 Degree, 3/4"-16, 7/8"-14 O-Ring Run, 3/4"-16

Incl. 40

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

41

282428A1

VALVE PRESSURE RELIE

Incl. 42

1шт.

42

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
