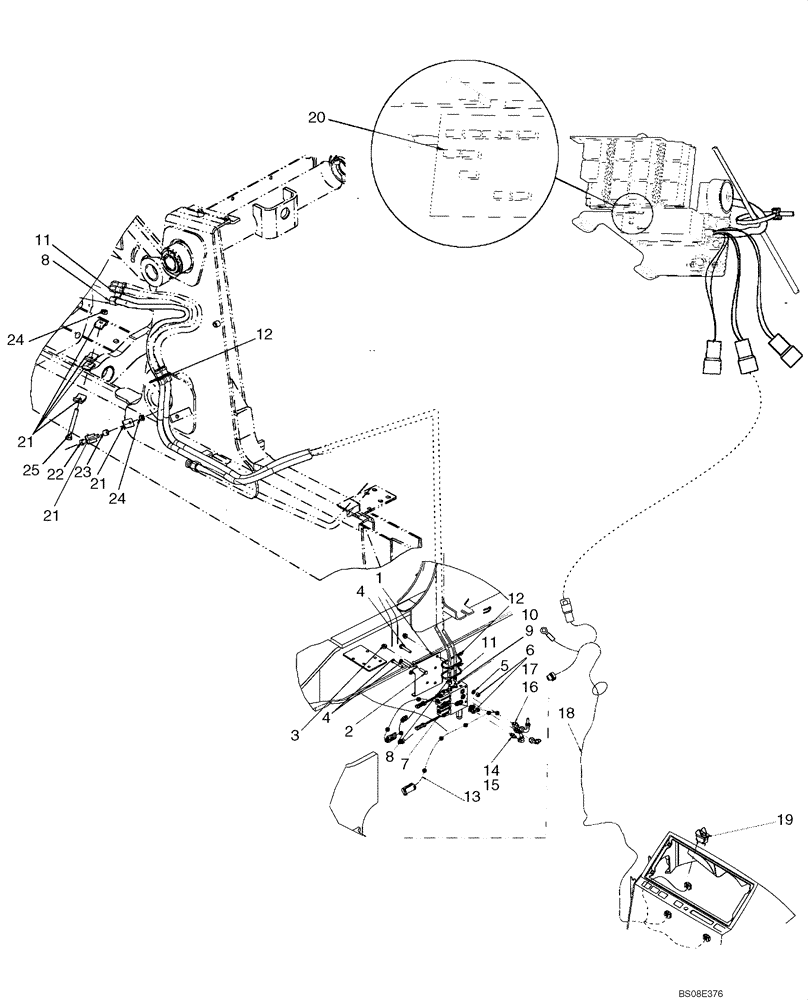

Запчасти Case 570MXT (08-07) - HYDRAULICS - COUPLER, LOADER TOOL QUICK - AT SOLENOID VALVE (08) - HYDRAULICS

1

87437263

BRACKET

1шт.

2

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

3

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.

4

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

3шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

7

87435909

SOLENOID VALVE

Coupler Valve; See Figure 08-09

1шт.

8

87427539

HYDRAULIC HOSE,1/4" ID x 1815mm L, 4-FXP2

1815 mm; Solenoid Valve Lower Port; For Attaching Parts, See Figure 08-09

1шт.

9

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 10

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

87427537

HYDRAULIC HOSE,1/4" ID x 1815mm L, 4-FXP2

1815 mm; For Attaching Parts, See Figure 08-09

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

13

87489430

WIRE HARNESS

Chassis Options

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 15

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. 17

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

400623A2

HARNESS

Side Console Options

1шт.

19

398675A2

ROCKER SWITCH

Loader Tool Quick Coupler

1шт.

20

121413A1

FUSE,15A, Mini, Blue

1шт.

21

D138055

CLAMP

6шт.

22

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

1шт.

23

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

25

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.
