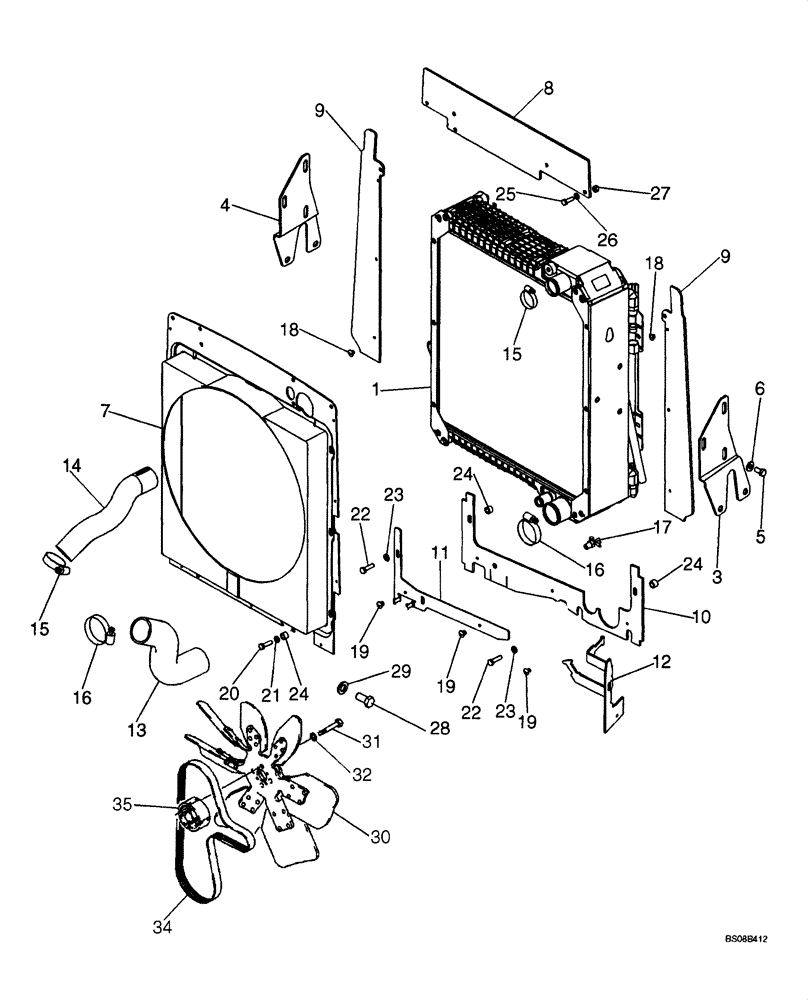

Запчасти Case 570MXT (02-01) - RADIATOR - MOUNTING (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
87576643
RADIATOR
3 Row, Component Parts Not Available At Time Of Printing; With Or Without Air Conditioning
1шт.
3
87740954
BRACKET, SUPPORTING
Bracket, RH Radiator Support
1шт.
4
87740955
BRACKET, SUPPORTING
Bracket, LH Radiator Support
1шт.
5
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
6шт.
6
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
6шт.
7
87686669
SHROUD
Shroud, Fan
1шт.
8
87687546
SEAL
Seal, Radiator, Top
1шт.
9
87687548
SEAL
Seal, Radiator, RH and LH
2шт.
10
87740962
SEAL
Seal, Radiator, Bottom
1шт.
11
87686110
PLATE
Plate, LH Lower Shroud
1шт.
12
87740975
FIXING PLATE
Plate, RH Lower Shroud
1шт.
13
87454378
RADIATOR HOSE,57.15 mm ID x 217.70 mm, SAE 20R4 CLASS D-1
Lower
1шт.
14
87454377
LARGE HOSE,45.00 mm ID x 289.50 mm, SAE 20R4 CLASS D-1
HOSE,LARGE Upper
1шт.
15
87647029
HOSE CLAMP,40-64mm
2шт.
16
214-1440
HOSE CLAMP,#40, 2.06" - 3", Type F Worm
2шт.
17
81465471
DRAINCOCK/TAP SUPPLY
Drain
1шт.
18
87301355
RIVET,Pop, 3/16" x .575"
6шт.
19
87301356
RIVET,Pop, 3/16" x .700"
3шт.
20
806-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9
4шт.
21
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
22
614-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
2шт.
23
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
24
407962A1
SPACER,9.8mm ID x 12.9mm OD x 11mm L
2шт.
25
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
2шт.
26
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
4шт.
27
832-10408
NUT,M8 x 1.25, Cl 8.8
2шт.
28
614-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
4шт.
29
896-12012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
4шт.
30
228133A2
FAN,7 Blades, 20 OD, CW Rotation
Models With Air Conditioning
1шт.
30
185377A1
FAN,7 blade, 499mm, CW rotation
Models Without Air Conditioning
1шт.
31
814-10090
BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8
4шт.
32
496-21041
WASHER,13/32" x 13/16" x .089", HDN
4шт.
33
87353191
SPACER
1шт.
Выбрано товаров: 34
