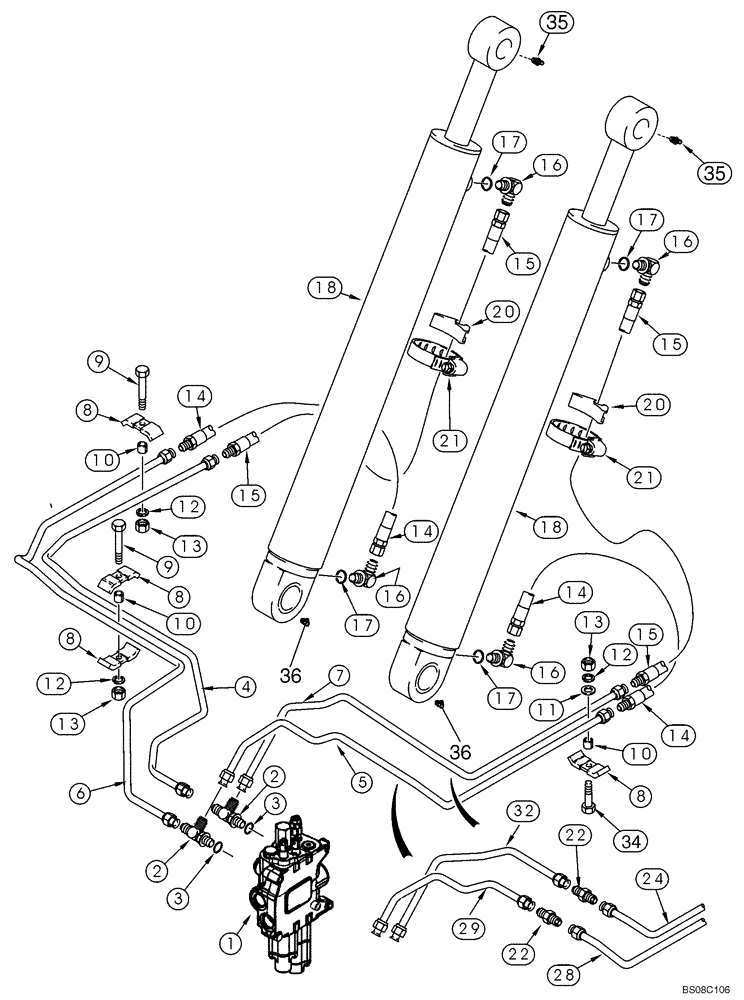

Запчасти Case 570MXT (08-02) - HYDRAULICS - CYLINDER, LOADER LIFT (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy; Control; Loader Control Valve; For Correct Assembly and Components, See Figure 08-14, 08-15; For Mounting, See Figure 09-01

1шт.

2

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

87482940

HYD TUBE,.625" OD

Upper Lift Port; Models Without Ride Control; For Parts Used On Models With Ride Control, See Figure 08-06; Replaces 87707595

1шт.

5

87447348

TUBE,11.66 mm ID x 15.88 mm OD

Lower Lift Port; For Service Order Ref 22, 28 & 29; 87313497 Tube at Loader Valve

1шт.

6

87482947

HYD TUBE

Lower Lift Port; Models Without Ride Control; For Parts Used On Models With Ride Control, See Figure 08-06; Replaces 87703687

1шт.

7

87447345

TUBE,11.66 mm ID x 15.88 mm OD

Upper Lift Port; For Service Order Ref 22, 24 & 32; 87313499 Tube at Loader Valve

1шт.

8

D138055

CLAMP

4шт.

9

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

10

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

3шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

12

892-11010

LOCK WASHER,M10

3шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

14

378172A1

HOSE ASSY.,9.53mm ID x 720mm L

720 mm (28-11/32 in)

2шт.

15

378173A1

HOSE ASSY.,9.53mm ID x 1090mm L

1090 mm (43 in)

2шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Inc. 17

4шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

384240A1

LIFT CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke

82.6 ID x 766 mm strk; Loader, See Figure 08-25

2шт.

18

384240A1R

REMAN-HYD CYLINDER

Lift Cylinder

2шт.

18

384240A1C

CORE-HYD CYLINDER

Return Number

2шт.

20

D142787

SPACER

2шт.

21

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

22

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

1-2шт.

24

221162A1

TUBE

1шт.

28

221158A1

TUBE

1шт.

29

87313497

TUBE,0.625" OD

Lower Lift Port

1шт.

32

87313499

TUBE,0.625" OD

Upper Lift Port

1шт.

34

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

36

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.
