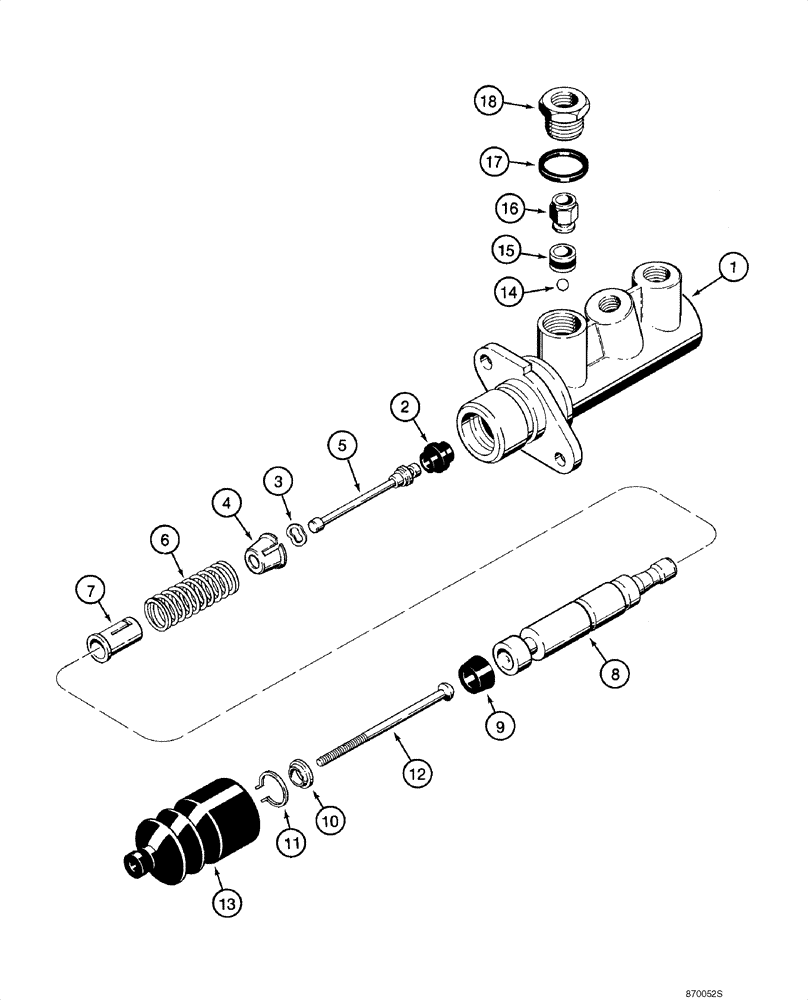

Запчасти Case 570MXT (07-05) - CYLINDER ASSY - BRAKE MASTER (07) - BRAKES

182445A1

MASTER CYLINDER,104.8mm Stroke

CYLINDER,MASTER Incl. Refs. 1 - 18

2шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Seal

1шт.

3

NSS

NOT SOLD SEPARAT

Washer

1шт.

4

NSS

NOT SOLD SEPARAT

Seat

1шт.

5

NSS

NOT SOLD SEPARAT

Plunger

1шт.

6

NSS

NOT SOLD SEPARAT

Spring

1шт.

7

NSS

NOT SOLD SEPARAT

Seat

1шт.

8

NSS

NOT SOLD SEPARAT

Piston

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Washer

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

12

NSS

NOT SOLD SEPARAT

Rod

1шт.

13

NSS

NOT SOLD SEPARAT

Boot

1шт.

14

NSS

NOT SOLD SEPARAT

Ball

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Valve, Check

1шт.

17

NSS

NOT SOLD SEPARAT

Seal

1шт.

18

NSS

NOT SOLD SEPARAT

Adapter

1шт.

N14784

KIT

Seal, Incl. Refs. 2, 3, 9, 11, 13 - 15, 17

1шт.
