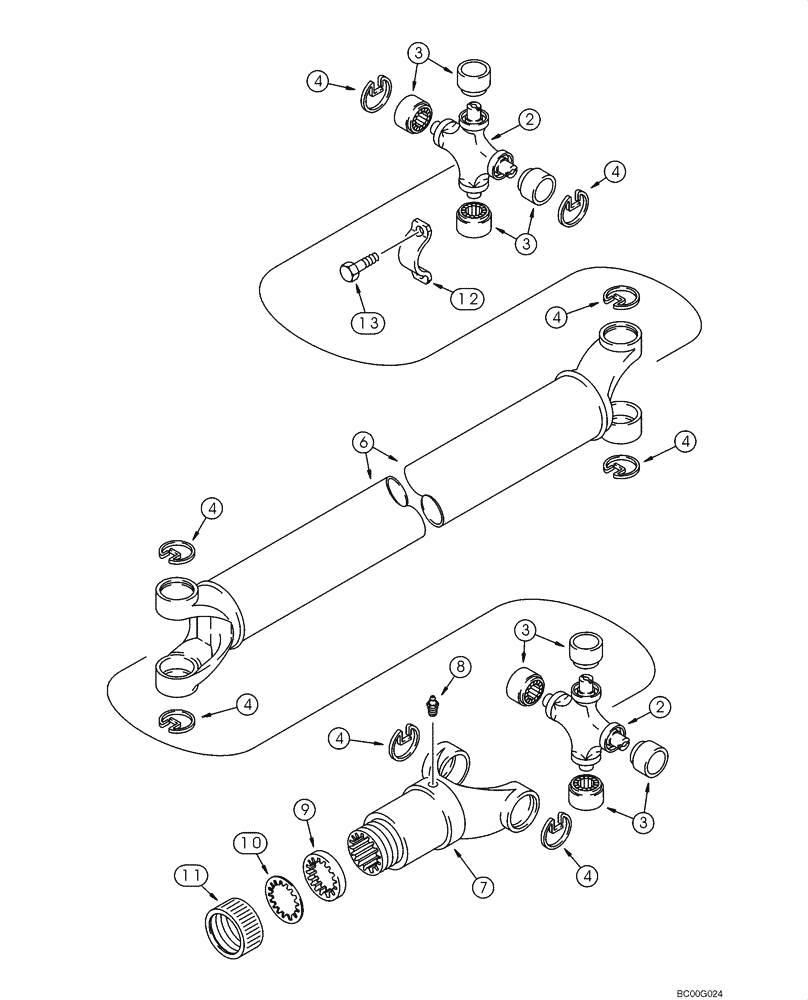

Запчасти Case 570MXT (06-32) - DRIVE SHAFT, REAR AXLE (06) - POWER TRAIN

367860A3

DRIVE SHAFT

Incl. 393231A1, Ref 2 - 13; Dana Brand; No Longer Available, Order 87405325 Driveshaft

1шт.

87405325

DRIVE SHAFT

Neapco Brand; Component Parts Not Available

1шт.

393231A1

SPIDER

Kit, Universal Joint, Incl. Ref 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

3

NSS

NOT SOLD SEPARAT

Bearing, Journal

4шт.

4

NSS

NOT SOLD SEPARAT

Ring

4шт.

6

393233A1

DRIVE SHAFT

1шт.

7

144279A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

D149860

SERVICE KIT

Incl. Ref 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Washer, Cork

1шт.

10

NSS

NOT SOLD SEPARAT

Washer, Steel

1шт.

11

NSS

NOT SOLD SEPARAT

Cap

1шт.

12

86014090

RETAINER

Clamp

2шт.

13

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

4шт.
