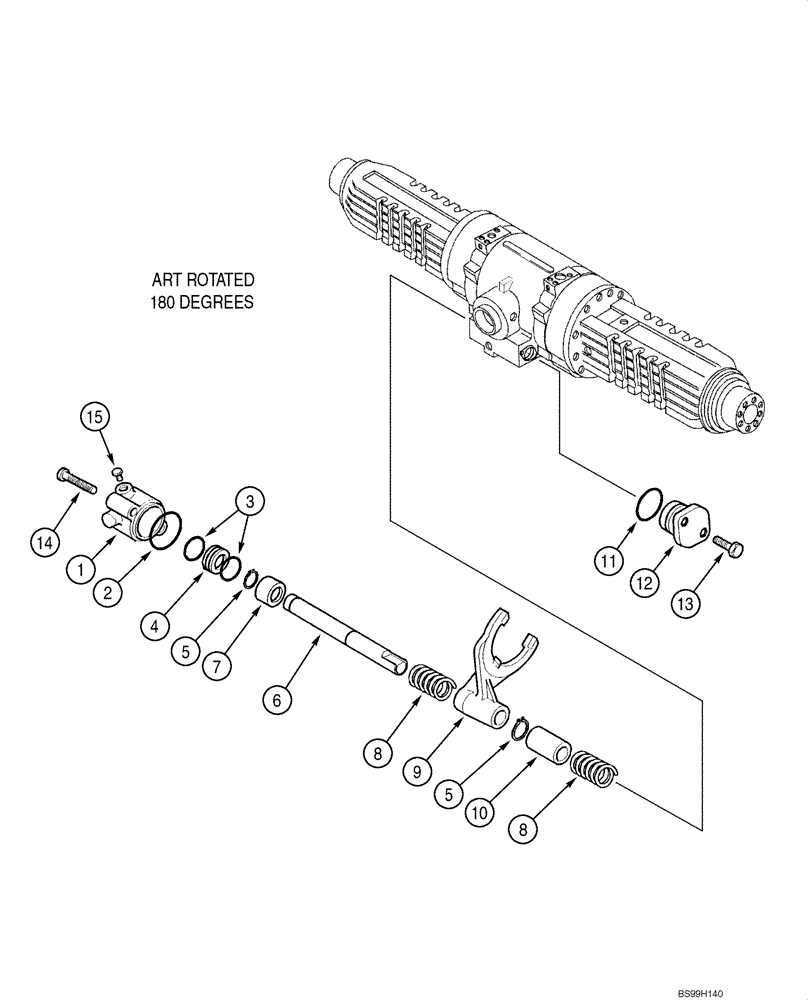

Запчасти Case 570MXT (06-30) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (06) - POWER TRAIN

87422891

AXLE, REAR

AXLE REAR Incl. Ref 1 - 15; Also Includes Parts On Figure(s) 06-27 - 06-31, 07-01, 07-02; Four Spider Differential

1шт.

87422891R

REMAN-REAR AXLE

Remanufactured, Rear, 4 Spider Differential

1шт.

87422891C

CORE-REAR AXLE

Return Part Number Rear, 4 Spider Differential

1шт.

384952A1R

REMAN-AXLE

Reman For New P/N 87422891

1шт.

384952A1C

CORE-AXLE

Four Spider Differential

1шт.

1

292213A1

CYLINDER

1шт.

2

305152A1

O-RING

1шт.

3

292210A1

SEAL

2шт.

4

292212A1

PISTON

1шт.

5

800-5120

SNAP RING,M20, Ext

2шт.

6

292214A1

SHAFT

Rail, Shifter Fork

1шт.

7

292902A1

RING

Bushing

1шт.

8

175966A1

SPRING

2шт.

9

175964A2

FORK

1шт.

10

175965A1

BUSHING

1шт.

11

128376A1

O-RING

1шт.

12

175968A1

SUPPORT

Cover

1шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

14

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

15

NSS

NOT SOLD SEPARAT

Plug

1шт.
