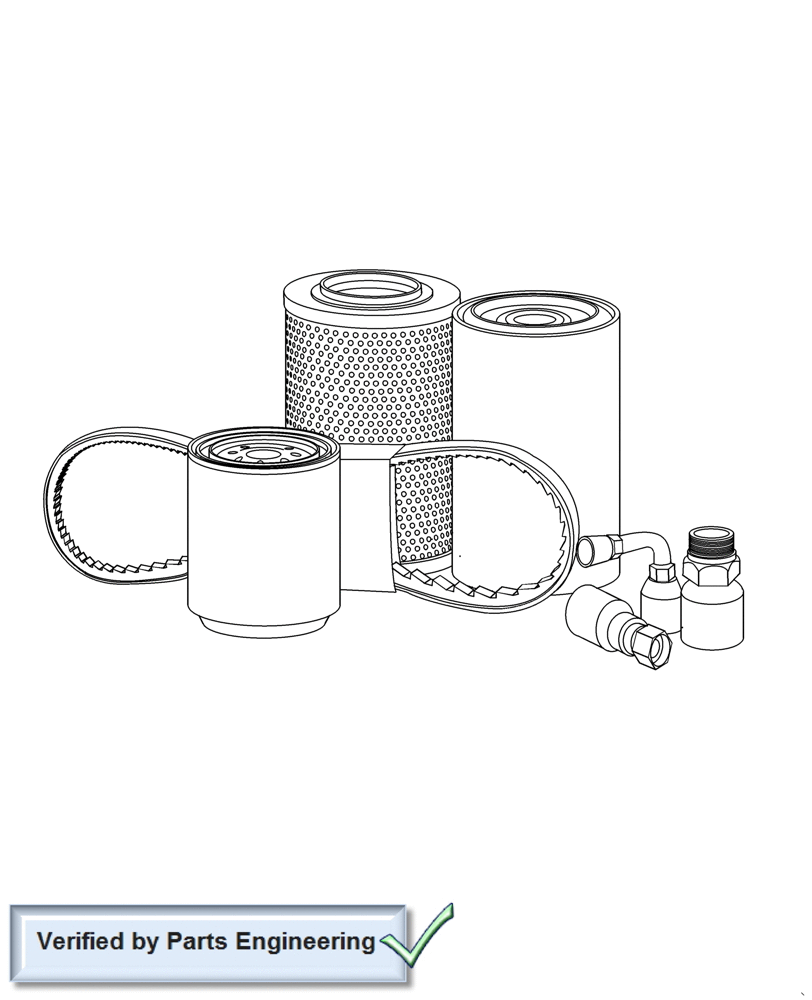

Запчасти Case 570MXT (00-01) - INITIAL STOCKING LIST (ISL) (00) - PICTORIAL INDEX

LIST A

Parts Required For Preventative Maintenance

1шт.

1

87803261

ENGINE OIL FILTER

1шт.

2

84171692

FUEL FILTER

1шт.

3

84239751

HYDRAULIC OIL FILTER

1шт.

4

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary, Element

1шт.

5

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary, Element

1шт.

6

87733726

FUEL FILTER

In-Line

1шт.

7

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Transmission Oil

1шт.

8

85826230

V-BELT,28.48 mm W x 1440.00 mm L, 8 Ribs

Belt

1шт.

9

87393292

V-BELT,13.5 mm W x 1206.5mm L

A/C

1шт.

LIST B

Parts Required For Preventative Maintenance And Basic Repair

1шт.

11

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

1шт.

12

85803019

RADIATOR CAP

Pressurized

1шт.

13

A187911

LAMP

Rear Flood Bulb

8шт.

14

A187912

LAMP,12V, 50W

Front Drive Bulb

8шт.

15

529068

BULB,#1156, 12V, 21W

Turn Signal & Flasher Lamp

4шт.

16

282775A1

IGNITION SWITCH

1шт.

17

2852136

CAP,48mm ID x 56mm OD x 18mm W

Oil Fill Tube

1шт.

18

2830734

THERMOSTAT

1шт.

19

D121152

LAMP,12V

Assembly

2шт.

20

87355337

RELAY,12V, 45A

30 Amp

12шт.

21

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

Bushing

4шт.

22

D137363

SWITCH

1шт.

23

87578455

RELAY,12V, Turn Signal and Hazard

1шт.

24

D148108

SWITCH

1шт.

25

85805990

OIL SEAL

Steering Cylinder

1шт.

26

D149860

SERVICE KIT

Dust Cap

1шт.

27

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

Bucket Cylinder Link

1шт.

28

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

Oil Drain Plug Washer Seal

1шт.

29

2856086

PLUG

Oil Drain

1шт.

30

L71879

DIODE ELEMENT,400V, 3A

9шт.

31

N14466

BULB

Dome Light

1шт.

32

N14784

KIT

Master Cylinder Brake Seal

1шт.

33

86537133

BULB,C6, #1157, 12.8V

2шт.

34

100696A1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

Bucket Cylinder Link Pivot

4шт.

35

104824A1

PIN,12.7mm OD

Lock

1шт.

36

87528887

ALARM

Back-Up

1шт.

37

112946A1

EDGE, CUTTING

1шт.

38

114980A1

GAS STRUT

Spring Hood Cylinder

2шт.

39

87522597

FUSE,10A, Mini, Red

10 Amp

8шт.

40

87524877

FUSE,15A, Mini, Blue

15 Amp

6шт.

41

10401190

FUSE,20A, Mini, Yellow

20 Amp

1шт.

42

10401290

FUSE,25 amp Mini

25 Amp

1шт.

43

122178A2

COUPLING, BREAK AWAY

Male Quick Disconnect

1шт.

44

122179A1

COUPLING, BREAK AWAY

Female Quick Disconnect

1шт.

45

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

3 Pt Hitch Cylinder

1шт.

46

1543267C1

SEAL KIT

Loader Clam

2шт.

47

1543260C1

SEAL KIT

Loader Lift Cylinder

2шт.

48

175251A1

SEAL KIT

Bucket Cylinder Seal

2шт.

49

87335469

LOCKABLE FUEL CAP,Male, Lockable

Fuel

1шт.

50

138595A1

FILLER CAP,Male, Lockable

Hydraulic Oil Tank

1шт.

51

87454378

RADIATOR HOSE,57.15 mm ID x 217.70 mm, SAE 20R4 CLASS D-1

Lower

1шт.

52

87454377

LARGE HOSE,45.00 mm ID x 289.50 mm, SAE 20R4 CLASS D-1

HOSE,LARGE Upper

1шт.

53

85807283

SPIDER

Universal

4шт.

54

85804347

PRESCREENER

Air

1шт.

55

248071A1

SERVICE KIT

Brake Self Adjust

2шт.

56

2852889

PRESSURE SWITCH

Oil

1шт.

57

91946C1

LAMP

Front Drive Bulb

2шт.

58

91947C1

LAMP

Rear Flood Bulb

6шт.

59

393231A1

SPIDER

Universal Joint Kit

2шт.

60

87687237

HOSE,17.00 mm ID, 22.00 mm ID x 176.90 mm, SAE J30R6

CCV (570MXT-T3)

1шт.

61

87687235

INTAKE AIR HOSE,76.00 mm ID, 88.90 mm ID x 300.00 mm, SAE J20

Air Cleaner

1шт.
