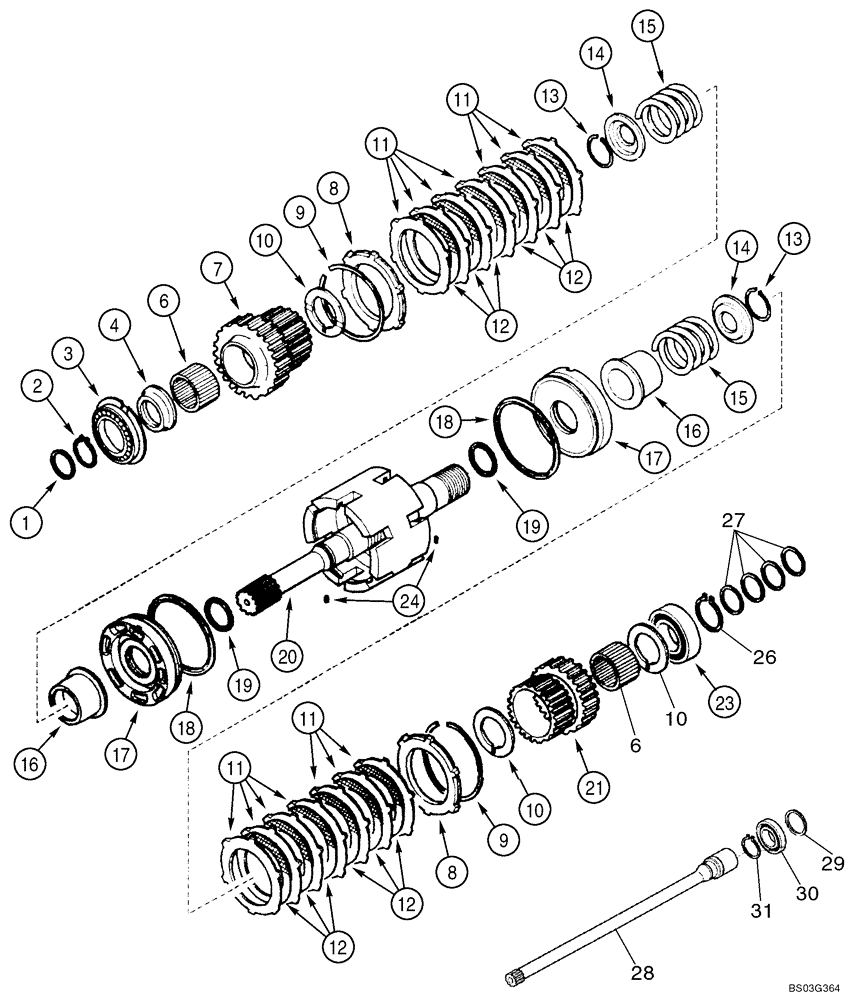

Запчасти Case 570MXT (06-19) - TRANSMISSION ASSY - SHAFT, INPUT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
87660860
TRANSMISSION
Two Wheel Drive, Incl. Ref 1 - 25; Also Includes Parts On Figures 06-13, 06-14, 06-16 - 06-20, 06-22
1шт.
87660860R
REMAN-TRANSMISSION
Remanufactured, Two Wheel Drive
1шт.
87660860C
CORE-TRANSMISSION
Return Number, Two Wheel Drive
1шт.
87660861
TRANSMISSION
Four Wheel Drive, Incl. Ref 1 - 25; Also Includes Parts On Figures 06-13, 06-15 - 06-23
1шт.
87660861R
REMAN-TRANSMISSION
Remanufactured, Four Wheel Drive
1шт.
87660861C
CORE-TRANSMISSION
Return Number, Four Wheel Drive
1шт.
1
358645A1
SEALING RING
1шт.
2
A48041
CIRCLIP,41.5mm ID x 2.5mm Thk
1шт.
3
181128A1
BEARING, BALL,45mm ID x 85mm OD x 19mm W
1шт.
4
358635A1
SPACER
68 x 45 x 105 mm
1шт.
6
358633A1
BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W
2шт.
7
366318A1
GEAR
Gear, 29T
1шт.
8
310519A1
PLATE
2шт.
9
181116A1
RING, LOCKING,146.6mm ID x 2.5mm Thk
RING, LOCK
2шт.
10
358640A1
WASHER
3шт.
13
181111A1
RING, LOCKING,47.8mm ID x 1.5mm Thk
RING, LOCK
2шт.
14
181161A1
PLATE, THRUST
Pressure
2шт.
15
358637A1
SPRING
2шт.
16
358641A1
TRANSMISSION SLEEVE
2шт.
17
358644A1
PISTON
2шт.
18
358643A1
SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk
SEALRING
2шт.
19
358642A1
SEALING RING
SEALRING
2шт.
20
87429973
SHAFT
Input Shaft, Charge; Includes D6x5,84 Rivet in Shaft End Which Is Not Serviced Separately; No Longer Available, Order 87525849 Input Shaft Kit
1шт.
20
87525849
REPAIR KIT
Input Shaft, Includes (1) 87429973 Input Shaft, (4) Rivets; Component Parts Not Serviced Separately
1шт.
21
358638A1
PINION,39T
Gear, 29T
1шт.
24
181108A1
SPLIT PIN,3mm OD x 8mm L
2шт.
26
800-1150
SNAP RING,M50, Ext
1шт.
27
87429984
RING
Seal Ring
4шт.
28
87429981
SHAFT
1шт.
29
358645A1
SEALING RING
1шт.
30
87429983
BALL BEARING,30mm ID x 55mm OD x 13mm W
1шт.
31
800-1130
SNAP RING,M30, Ext
1шт.
Выбрано товаров: 35
