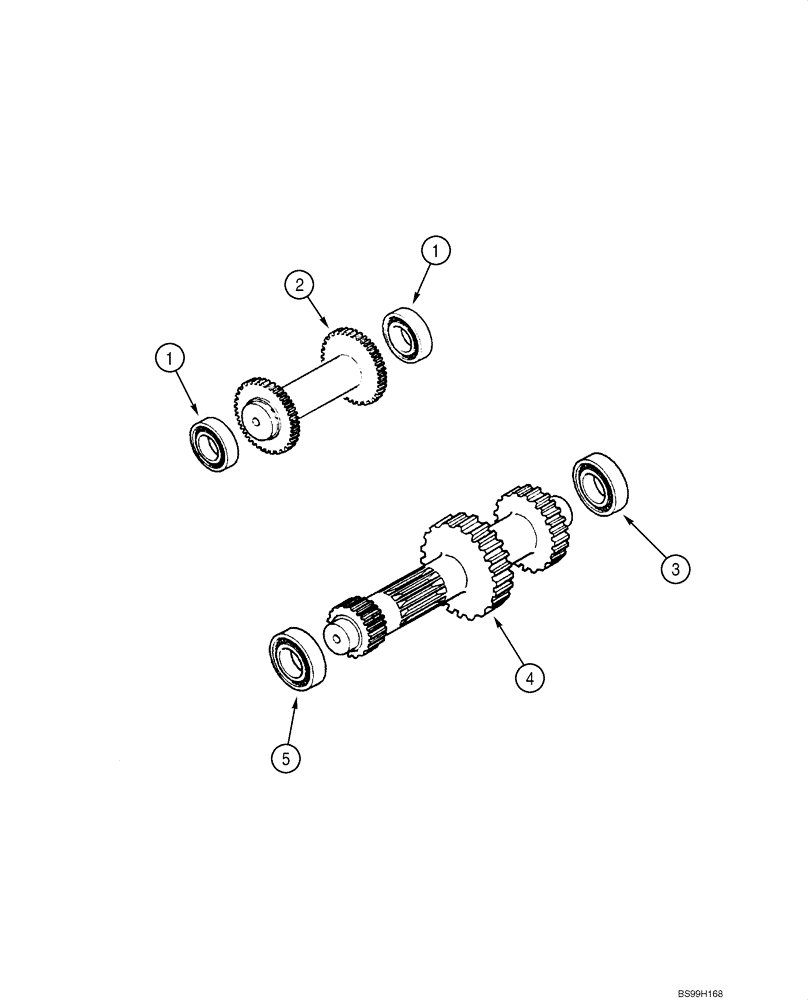

Запчасти Case 570MXT (06-18) - TRANSMISSION ASSY - SHAFT, IDLER AND PRIMARY (06) - POWER TRAIN

87660860

TRANSMISSION

Two Wheel Drive, Incl. Ref 1 - 6; Also Includes Parts On Figures 06-13, 06-14, 06-16 - 06-20, 06-22

1шт.

87660860R

REMAN-TRANSMISSION

Remanufactured, Two Wheel Drive

1шт.

87660860C

CORE-TRANSMISSION

Return Number, Two Wheel Drive

1шт.

87660861

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 6; Also Includes Parts On Figures 06-13, 06-15 - 06-23

1шт.

87660861R

REMAN-TRANSMISSION

Remanufactured, Four Wheel Drive

1шт.

87660861C

CORE-TRANSMISSION

Return Number, Four Wheel Drive

1шт.

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

2шт.

2

366237A1

SHAFT

Idler

1шт.

3

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

4

358646A1

SHAFT

Primary

1шт.

5

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

6

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

Not Illustrated

1шт.
