Запчасти Case 570MXT (06-16) - TRANSMISSION ASSY - PUMP, OIL (06) - POWER TRAIN

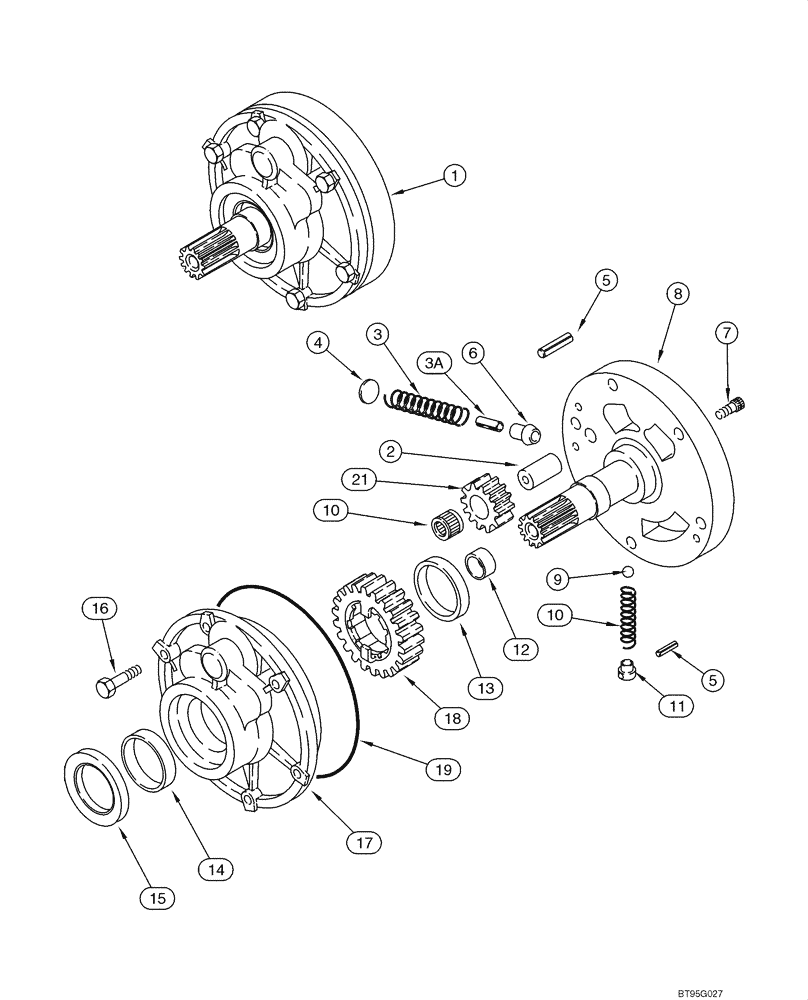

Схема запчастей Case 570MXT - (06-16) - TRANSMISSION ASSY - PUMP, OIL (06) - POWER TRAIN
4
5
7
1
17
5
8
6
10
10
3
21
2
19
9
14
18
15
11
16
13
3a
12

Артикул

Название

Примечание

Количество

87660860

TRANSMISSION

Two Wheel Drive, Incl. Ref 1 - 21; Also Includes Parts On Figures 06-13, 06-14, 06-16 - 06-20, 06-22

1шт.

87660860R

REMAN-TRANSMISSION

Remanufactured, Two Wheel Drive

1шт.

87660860C

CORE-TRANSMISSION

Return Number, Two Wheel Drive

1шт.

87660861

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 21; Also Includes Parts On Figures 06-13, 06-15 - 06-23

1шт.

87660861R

REMAN-TRANSMISSION

Remanufactured, Four Wheel Drive

1шт.

87660861C

CORE-TRANSMISSION

Return Number, Four Wheel Drive

1шт.

1

87429970

PUMP

Charge, Incl. Ref 2 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft

1шт.

3

NSS

NOT SOLD SEPARAT

Spring

1шт.

3a

NSS

NOT SOLD SEPARAT

Pin

1шт.

4

NSS

NOT SOLD SEPARAT

Stop

1шт.

5

NSS

NOT SOLD SEPARAT

Pin, Roll

2шт.

6

NSS

NOT SOLD SEPARAT

Piston

1шт.

7

NSS

NOT SOLD SEPARAT

Bolt

2шт.

8

NSS

NOT SOLD SEPARAT

Support

1шт.

9

NSS

NOT SOLD SEPARAT

Ball

1шт.

10

NSS

NOT SOLD SEPARAT

Spring

1шт.

11

NSS

NOT SOLD SEPARAT

Guide

1шт.

12

NSS

NOT SOLD SEPARAT

Bushing

1шт.

13

NSS

NOT SOLD SEPARAT

Bushing

1шт.

14

NSS

NOT SOLD SEPARAT

Bushing

1шт.

15

87429971

OIL SEAL

1шт.

16

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

6шт.

17

NSS

NOT SOLD SEPARAT

Housing

1шт.

18

NSS

NOT SOLD SEPARAT

Gear, 23T

1шт.

19

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

Bearing, Needle

1шт.

21

NSS

NOT SOLD SEPARAT

Gear, 12T

1шт.

Выбрано товаров: 28
