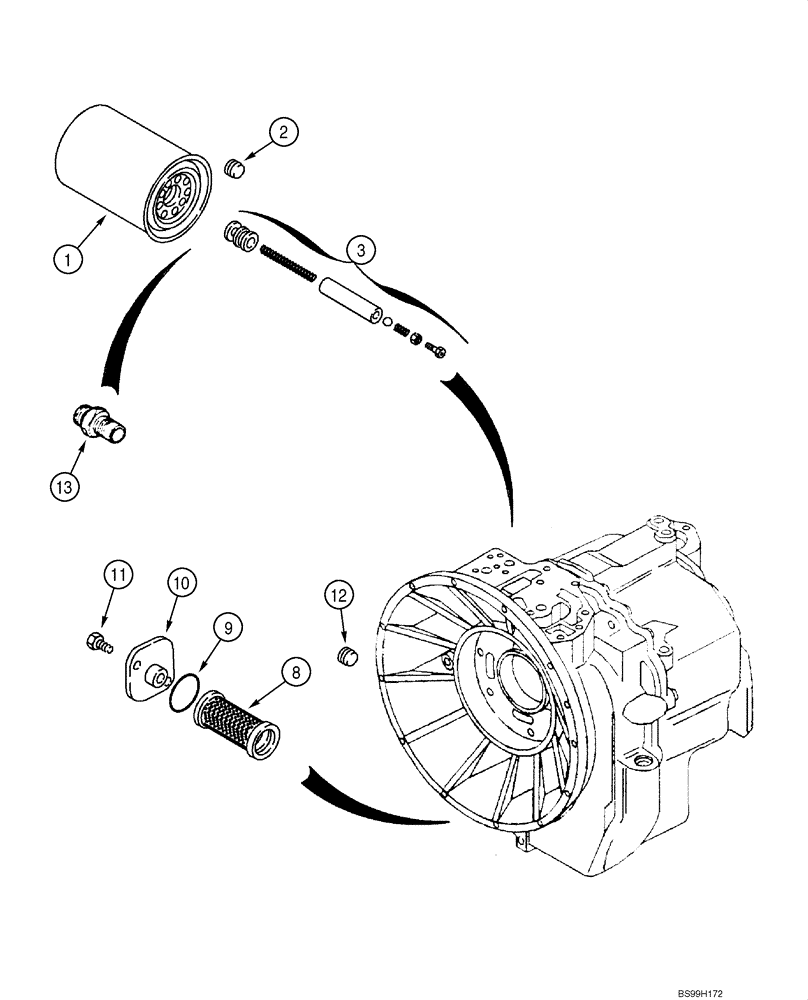

Запчасти Case 570MXT (06-13) - TRANSMISSION ASSY - FILTER, OIL (06) - POWER TRAIN

87660860

TRANSMISSION

Two Wheel Drive, Incl. Ref 1, 8 - 11, 13; Also Includes Parts On Figures 06-13, 06-14, 06-16 - 06-20, 06-22

1шт.

87660860R

REMAN-TRANSMISSION

Remanufactured, Two Wheel Drive

1шт.

87660860C

CORE-TRANSMISSION

Return Number, Two Wheel Drive

1шт.

87660861

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 13; Also Includes Parts On Figures 06-13, 06-15 - 06-23

1шт.

87660861R

REMAN-TRANSMISSION

Remanufactured, Four Wheel Drive

1шт.

87660861C

CORE-TRANSMISSION

Return Number, Four Wheel Drive

1шт.

1

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Oil

1шт.

2

181101A1

PLUG,M14 x 1.5

14 - 1.5 mm; Four Wheel Drive Models Only

1шт.

3

181274A1

REPAIR KIT

Valve; Four Wheel Drive Models Only

1шт.

8

278534A1

FILTER SCREEN

Oil

1шт.

9

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

10

181219A1

COVER

1шт.

11

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

12

181102A1

PLUG

Four Wheel Drive Models Only

1шт.

13

181202A1

FITTING

1шт.
