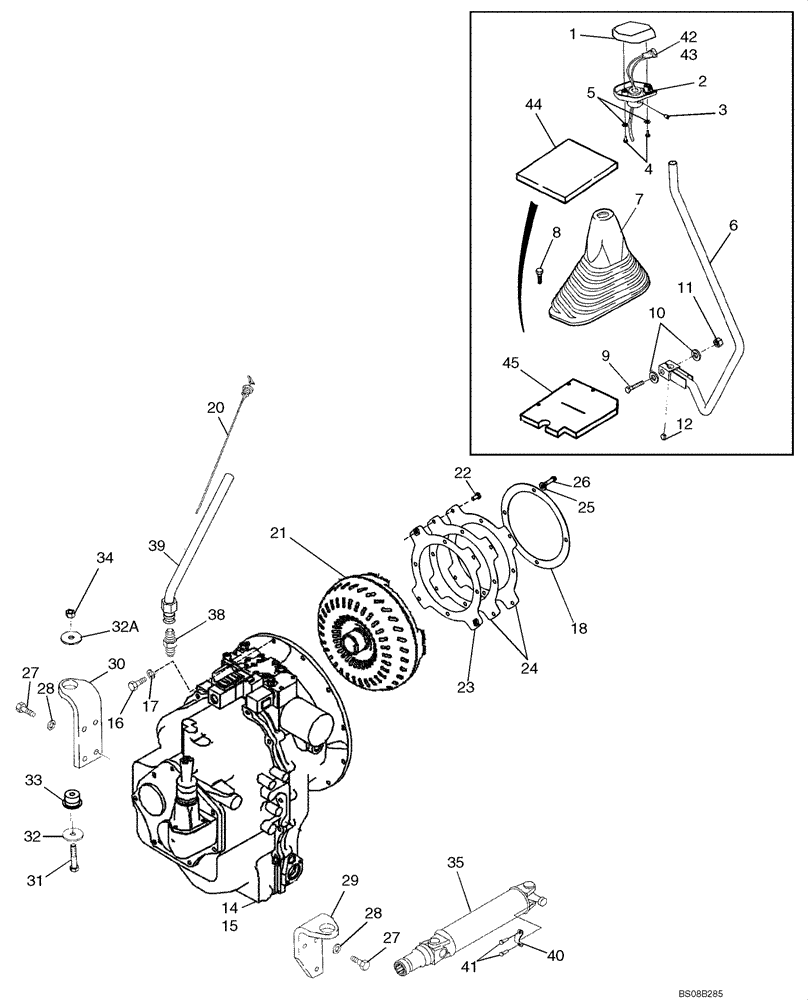

Запчасти Case 570MXT (06-12) - TRANSMISSION - MOUNTING (06) - POWER TRAIN

309747A1

KNOB

Gear Shift Lever, Includes NSS Gasket, Incl. Ref 1, 2, 4, 5

1шт.

NSS

NOT SOLD SEPARAT

GASKET, Knob

2шт.

1

187714A1

KNOB

Upper

1шт.

2

187715A1

KNOB

Lower

1шт.

3

484-6316

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

1шт.

4

87020181

SCREW,Phillips Drive, Pan HD, #10 - 32 x 7/8"

Pan Head Cross Recess, No. 10 NF x 7/8, Use With Loctite 242

2шт.

5

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

6

179689A2

LEVER

Gear Shift Lever

1шт.

7

190618A1

BELLOWS

Boot

1шт.

8

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

4шт.

9

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

12

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

13

143370A1

SPRING

1шт.

14

87660860

TRANSMISSION

Two Wheel Drive Models, See Figures 06-13, 06-14, 06-16 - 06-20, 06-22

1шт.

14

87660860R

REMAN-TRANSMISSION

Remanufactured, Two Wheel Drive

1шт.

14

87660860C

CORE-TRANSMISSION

Return Number, Two Wheel Drive

1шт.

15

87660861

TRANSMISSION

Four Wheel Drive Models, See Figures 06-13, 06-15 - 06-23

1шт.

15

87660861R

REMAN-TRANSMISSION

Remanufactured, Four Wheel Drive

1шт.

15

87660861C

CORE-TRANSMISSION

Return Number, Four Wheel Drive

1шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

18

87409201

BACKING PLATE,228mm ID x 280mm OD x 1.5mm Thk

1шт.

20

87430618

DIPSTICK,669mm L

1шт.

21

87702194

TORQUE CONVERTER

1шт.

21

87702194R

REMAN-TORQUE CONVERT

ER Remanufactured

1шт.

21

87702194C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number

1шт.

22

87019767

12 PT SCREW,M10 x 1.25 x 30mm, Cl 10.9

4шт.

22

1183269

12 PT SCREW,M10 x 1.5 x 30mm, Cl 10.9

Use with kit 47442982

4шт.

23

87406934

PLATE

1шт.

23

47442982

KIT

Flex With Caged Nut

1шт.

24

86993546

PLATE,224mm ID x 284mm OD x 0.5mm Thk

2шт.

25

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

26

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

27

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

7шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

29

87735097

SUPPORT

Bracket, Right-Hand

1шт.

30

87735096

SUPPORT

Bracket, Left-Hand

1шт.

31

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

2шт.

32

85802618

SEALING WASHER,13mm ID x 41mm OD x 3mm Thk

2шт.

32a

85801585

SEALING WASHER,13mm ID x 65mm OD x 5mm Thk

2шт.

33

87416967

SUPPORT

Insulator

2шт.

34

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

35

367860A3

DRIVE SHAFT

Transmission to Rear Axle, Incl. Ref 40, 41; See Figure(s) 06-32; Dana Brand; No Longer Available, Order 87405325 Driveshaft

1шт.

35

87405325

DRIVE SHAFT

Transmission to Rear Axle; Neapco Brand; Component Parts Not Available

1шт.

38

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.

39

395344A1

TUBE,25.4mm OD x 397.85 L

Dipstick

1шт.

40

86014090

RETAINER

2шт.

41

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16

4шт.

42

123097A1

SWITCH

Push Button, Clutch Cutout

1шт.

43

123809A2

WIRE HARNESS

Transmission Gear Shift Lever, Clutch Cutout

1шт.

44

292514A1

INSULATOR

Seal, Noise Reduction, Cab Models

1шт.

45

298394A1

FOAM INSULATION

Foam, Cab Models

1шт.
