Запчасти Case 570MXT (06-10) - COOLING SYSTEM - TRANSMISSION (06) - POWER TRAIN

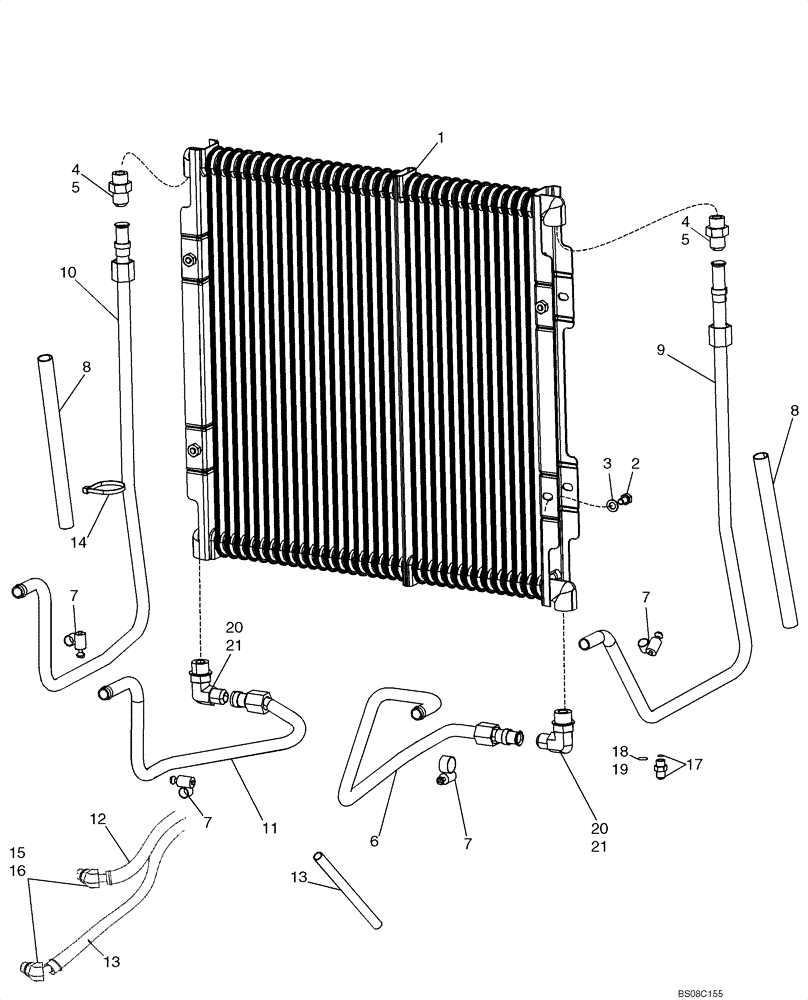

Схема запчастей Case 570MXT - (06-10) - COOLING SYSTEM - TRANSMISSION (06) - POWER TRAIN
8
5
2
9
7
16
15
7
21
7
20
19
6
17
18
21
10
5
1
7
4
8
14
20
3
13
12
11
4
13

Артикул

Название

Примечание

Количество

1

87441876

OIL COOLER

Hydraulic

1шт.

2

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

87482004

HYD TUBE,15.875 mm OD

Tube, RH Lower Cooler

1шт.

7

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

4шт.

8

87311219

HOSE PROTECTION,16.80 mm ID x 250.00 mm

2шт.

9

87482006

HYD TUBE,15.875 mm OD x 580, 342 mm L

Tube, RH Upper Cooler

1шт.

10

87482002

HYD TUBE,15.875 mm OD x 571, 322 mm L

Tube, LH Upper Cooler

1шт.

11

87481997

HYD TUBE,15.8 mm ID x 15.875 mm OD

Tube, LH Lower Cooler

1шт.

12

87741916

HOSE,15.88mm ID x 1010mm L, SAE 100R6

Transmission to Cooler Inlet

1шт.

13

87741917

HOSE,15.88mm ID x 1300mm L, SAE 100R6

To Transmission to Cooler Outlet

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

15

217-314

FITTING,45 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

Incl. 17

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

D132982

PADDLE,26.87mm ID x 400mm L

On Ref. 13, 87741917 Hose, Not Illustrated

1шт.

Выбрано товаров: 22
