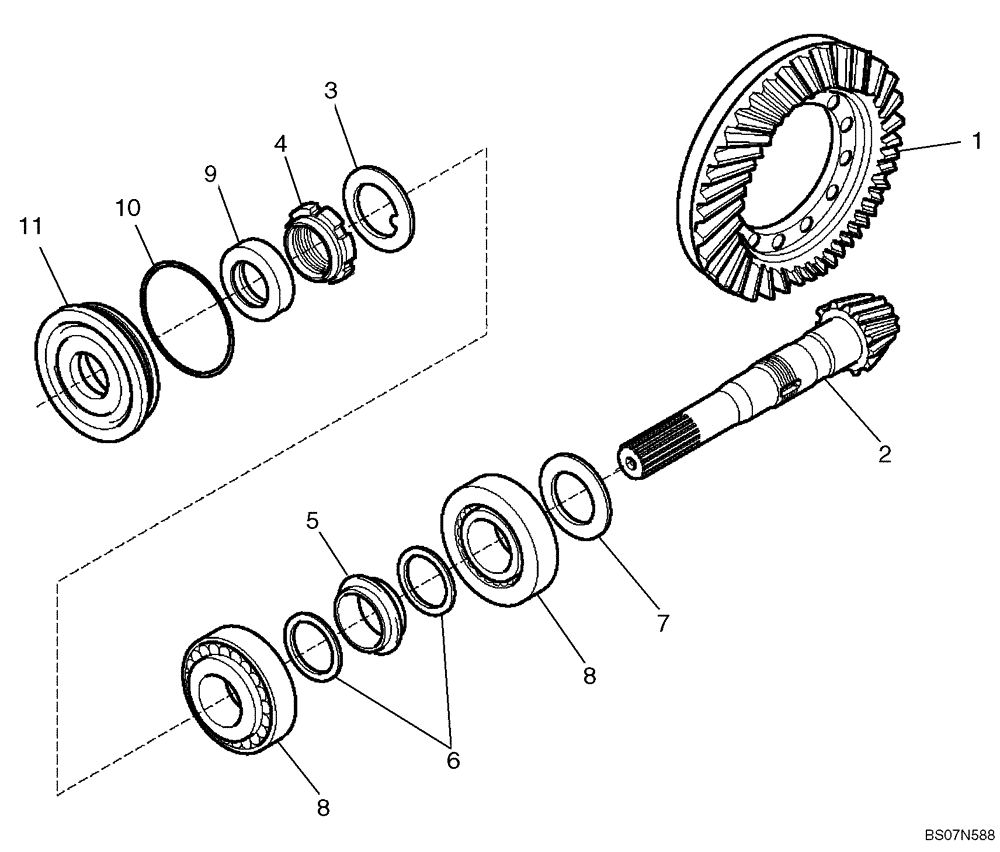

Запчасти Case 570MXT (06-08) - AXLE, FRONT DRIVE (4WD) - RING AND PINION (IF USED) (06) - POWER TRAIN

87395365

4WD AXLE ASSY

Front, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-02 - 06-08; See Figure 06-01 For Remanufactured Axle Part Number570MXT SERIES 3 LOADER LANDSCAPER TIER 3 (4/08-)

1шт.

87395365R

REMAN-AXLE DIFFERENT

570MXT SERIES 3 LOADER LANDSCAPER TIER 3 (4/08-)

1шт.

87395365C

CORE-AXLE, MFD

Return Number

1шт.

144460A1

GEAR SET

Ring and Pinion, Incl Ref 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Gear

1шт.

2

NSS

NOT SOLD SEPARAT

Pinion Gear

1шт.

3

9968031

WASHER,41mm ID x 62mm OD x 2mm Thk

1шт.

4

K261014

RING NUT,M40 x 1.5

Ring

1шт.

5

1349058C1

SPACER

Collapsible

1шт.

6

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

2шт.

7

140954A1

SHIM,2.50mm Thk

(0.098")

1шт.

7

140953A1

SHIM,2.60mm Thk

(0.102")

1шт.

7

140951A1

SHIM,2.70mm Thk

(0.106")

1шт.

7

140949A1

SHIM,2.80mm Thk

(0.110")

1шт.

7

140948A1

SHIM,2.90mm Thk

(0.114")

1шт.

7

140943A1

SHIM,3.00mm Thk

(0.118")

1шт.

7

140944A1

SHIM,3.10mm Thk

(0.122")

1шт.

7

140945A1

SHIM,3.20mm Thk

(0.125")

1шт.

7

140946A1

SHIM,3.30mm Thk

(0.129")

1шт.

7

140947A1

SHIM,3.40mm Thk

(0.133")

1шт.

8

K395090

TAPERED BEARING,40mm ID x 90mm OD

2шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

Oil

1шт.

10

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

11

128570A1

FLANGE

Cover, Differential

1шт.
