(06-04) - AXLE, FRONT DRIVE (4WD) - CYLINDER, STEERING (IF USED)

Запчасти Case 570MXT (06-04) - AXLE, FRONT DRIVE (4WD) - CYLINDER, STEERING (IF USED) (06) - POWER TRAIN

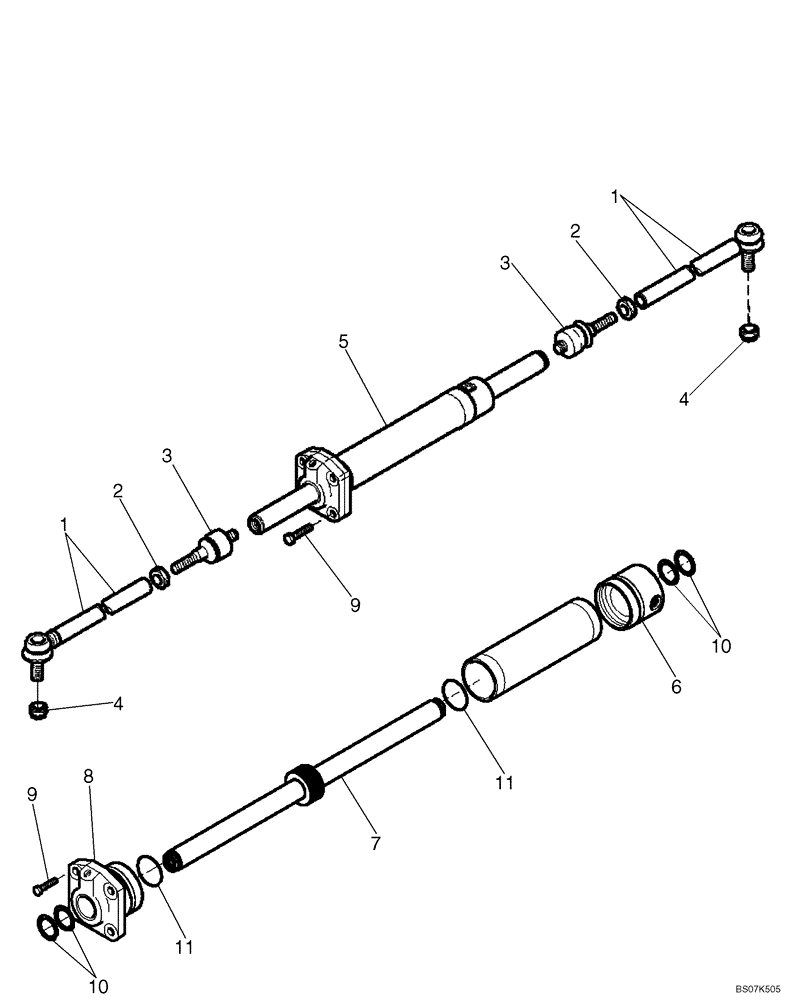

Схема запчастей Case 570MXT - (06-04) - AXLE, FRONT DRIVE (4WD) - CYLINDER, STEERING (IF USED) (06) - POWER TRAIN
5
2
11
10
6
4
9
3
2
11
1
9
4
3
8
10
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87395365

4WD AXLE ASSY

Front, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-02 - 06-08; See Figure 06-01 For Remanufactured Axle Part Number

1шт.

87395365R

REMAN-AXLE DIFFERENT

570MXT SERIES 3 LOADER LANDSCAPER TIER 3 (4/08-)

1шт.

87395365C

CORE-AXLE, MFD

Return Number

1шт.

144457A1

STEERING ARM

Incl Ref 1 - 3

2шт.

1

87710157

STEERING TIE-ROD,26mm OD x 265mm L

Ball Joint

1шт.

2

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

1шт.

3

112509A1

BALL JOINT

1шт.

4

905839R1

LOCK NUT,M18 x 1.5, Thin

2шт.

5

87710158

STEERING CYLINDER

Incl. Ref 6 - 11, Order 87710144 Kit to Service Seals

1шт.

6

87710142

CYLINDER HEAD

1шт.

7

87710143

ROD

1шт.

8

87710141

CYLINDER END CAP

1шт.

9

87710137

BOLT

M12 x 35

4шт.

10

NSS

NOT SOLD SEPARAT

Seal, Wiper

4шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

87710144

OIL SEAL

Incl. Ref 10, 11

1шт.
