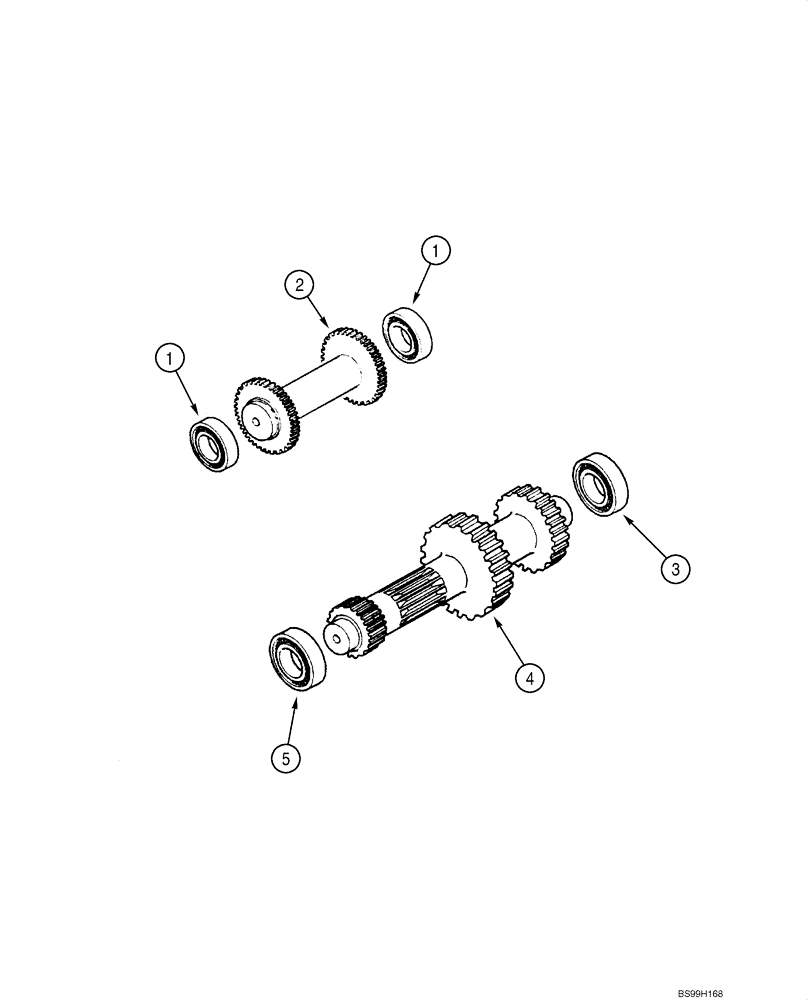

Запчасти Case 570MXT (06-18) - TRANSMISSION ASSY - SHAFT, IDLER AND PRIMARY (06) - POWER TRAIN

87396486

TRANSMISSION

Two Wheel Drive, Incl. Ref 1 - 6; Also Includes Parts On Figures 06-13 - 06-22B; Replaces 329081A1, 329081A2, 329081A3, 87456845

1шт.

87396486R

REMAN-TRANSMISSION

Remanufactured Transmission - Two Wheel Drive

1шт.

87396486C

CORE-TRANSMISSION

Return Part Number

1шт.

87396487

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 6; Also Includes Parts On Figures 06-13 - 06-23; Replaces 329082A1, 329082A2, 329082A3, 87456846

1шт.

87396487R

REMAN-TRANSMISSION

Remanufactured Transmission - Four Wheel Drive

1шт.

87396487C

CORE-TRANSMISSION

Return Part Number

1шт.

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

2шт.

2

366237A1

SHAFT

Idler Shaft

1шт.

3

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

4

358646A1

SHAFT

Primary Shaft

1шт.

5

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

6

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

Not Illustrated

1шт.
