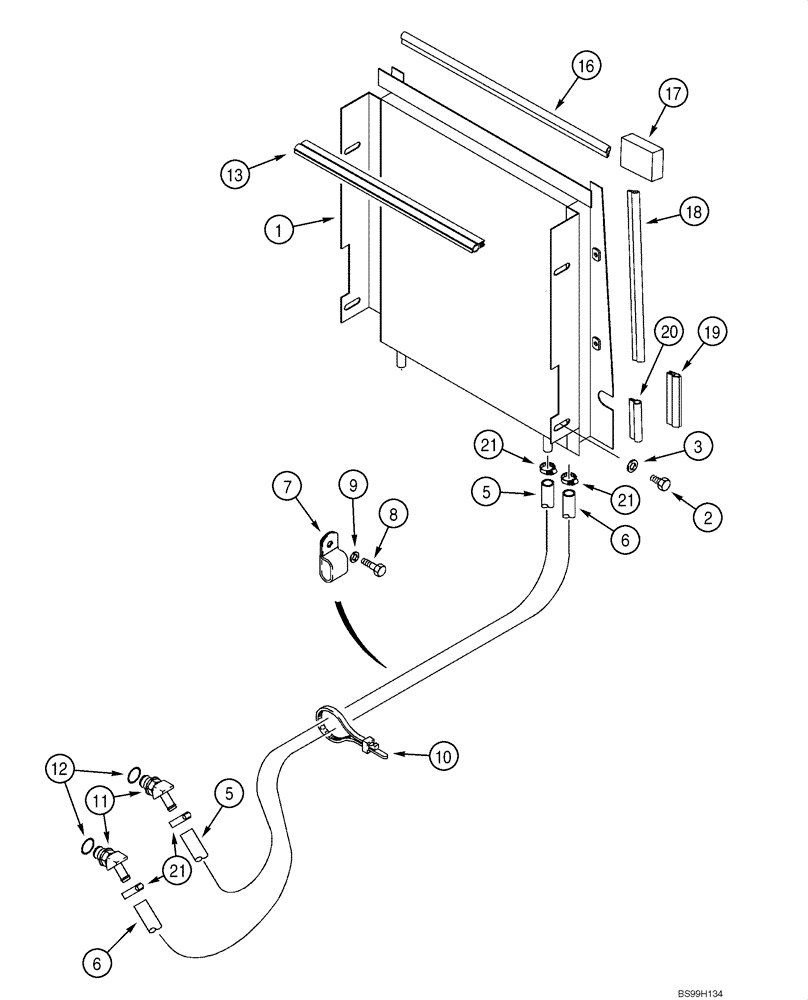

Запчасти Case 570MXT (06-10) - COOLING SYSTEM - TRANSMISSION (WITHOUT AIR CONDITIONING) (06) - POWER TRAIN

1

320877A1

COOLER, OIL

For Mounting Hardware, See Figure 09-20; For Additional Hydraulic Routing, See Figure(s) 8-02

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

5

319889A2

HOSE

1360 mm (53-9/16 in), Transmission to Cooler Inlet

1шт.

6

319888A2

HOSE

1630 mm (64-3/16 in), Cooler, Serial Range: Outlet-Transmission

1шт.

7

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

3шт.

11

217-314

FITTING,45 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

Incl. Ref 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

183735A1

OIL SEAL

Radiator to Oil Cooler

1шт.

16

233972A1

SEAL

564 mm (22-7/32 in), Cooler to Radiator Wrapper

1шт.

17

234719A1

SEAL

Seal, 70 x 100 x 32 mm, Upper Corner, Use With 345-44 Adhesive

2шт.

345-44

ADHESIVE

Spray Can, 3M No. 74, 23 ounce

1шт.

18

258746A1

SEAL

390 mm (15-3/8 in), Cooler Side

2шт.

19

258747A1

SEAL

132 mm (5-7/32 in), Cooler Slot

2шт.

20

258748A1

SEAL

100 mm (3-15/16 in), Cooler Side, Lower

2шт.

21

328186A1

HOSE CLAMP,400mm L

4шт.
