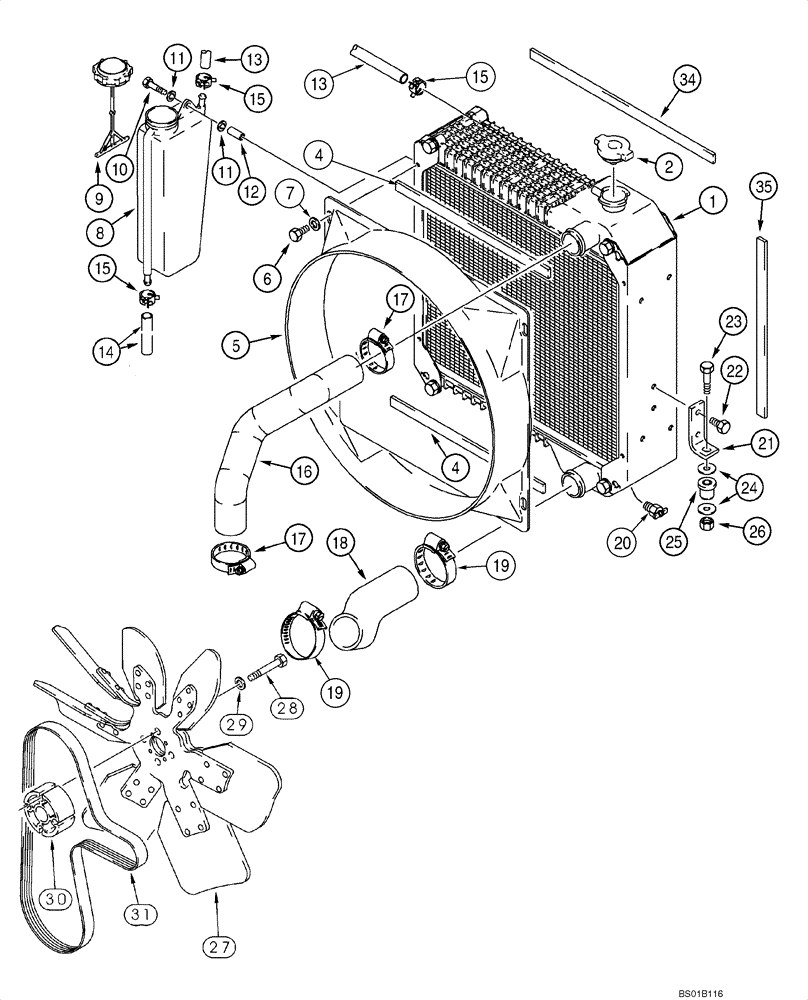

Запчасти Case 570MXT (02-01) - RADIATOR - MOUNTING (MODELS WITHOUT AIR CONDITIONING, 320877A1 OIL COOLER) (02) - ENGINE

1

234876A2

RADIATOR

4 Row; See Figure 02-03; Incl. REF 2; For Cooler and Baffles, See Figure 06-10

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

4

233272A1

SEALING STRIP,20mm W x 404mm L x 6mm Thk

20 x 404 x 6 mm; Adhesive Back; Radiator to Shroud; Upper And Lower

2шт.

5

186433A1

SHROUD

1шт.

6

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

4шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

8

131084A1

RESERVOIR

Incl. REF 9

1шт.

9

1547924C1

CAP

1шт.

10

806-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

132215A1

SPACER

2шт.

13

87305995

HOSE,8.50 mm ID x 595 mm

Coolant Recovery; Replaces 132218A1 591 mm (23-1/4 in) Hose, That Was Cut From L126767, Which Was Used On Some Models

1шт.

14

87306270

HOSE,8.30 mm ID x 125 mm

Coolant Overflow; Replaces 132217A1 Hose Used On Some Models

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

16

87306288

RADIATOR HOSE,44.45 mm ID, 265.00 mm

Upper; Replaces 232366A1 Hose Used On Some Models

1шт.

17

87647029

HOSE CLAMP,40-64mm

Replaces 214-1432 Clamp Used On Some Models

2шт.

18

87306292

RADIATOR HOSE,57.15 mm ID, 212.00 mm

Lower; Replaces 141513A1 Hose Used On Some Models

1шт.

19

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2шт.

20

217-92

COCK

1/4; Drain

1шт.

21

121501A2

SUPPORT

Lower; For Upper Bracket; See Figure 09-20

2шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

23

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

24

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

4шт.

25

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

Rubber

2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

27

127181A2

FAN

With Orange Identification Dot; Models Without Turbocharged Engine, Engine No. 394285A1; Replaces 127181A1

1шт.

27

228133A2

FAN,7 Blades, 20 OD, CW Rotation

Degree 39; With White Identification Dot; Models With Turbocharged Engine, Engine No. 380457A1; Replaces 228133A1

1шт.

28

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

4шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

30

A184545

SPACER

43 mm

1шт.

31

J925953

BELT,27.92 mm W x 1490.00 mm L, 8 Ribs

Alternator and Fan

1шт.

34

235040A2

SEALING STRIP,20mm W x 542mm L x 6mm Thk

20 x 542 x 6 mm; Adhesive Back; Horizontal; Radiator to Oil Cooler

2шт.

35

235038A2

RUBBER SEAL,20mm W x 490mm L x 8mm Thk

20 x 490 x 8 mm; Adhesive Back; Vertical; Radiator to Oil Cooler

2шт.
