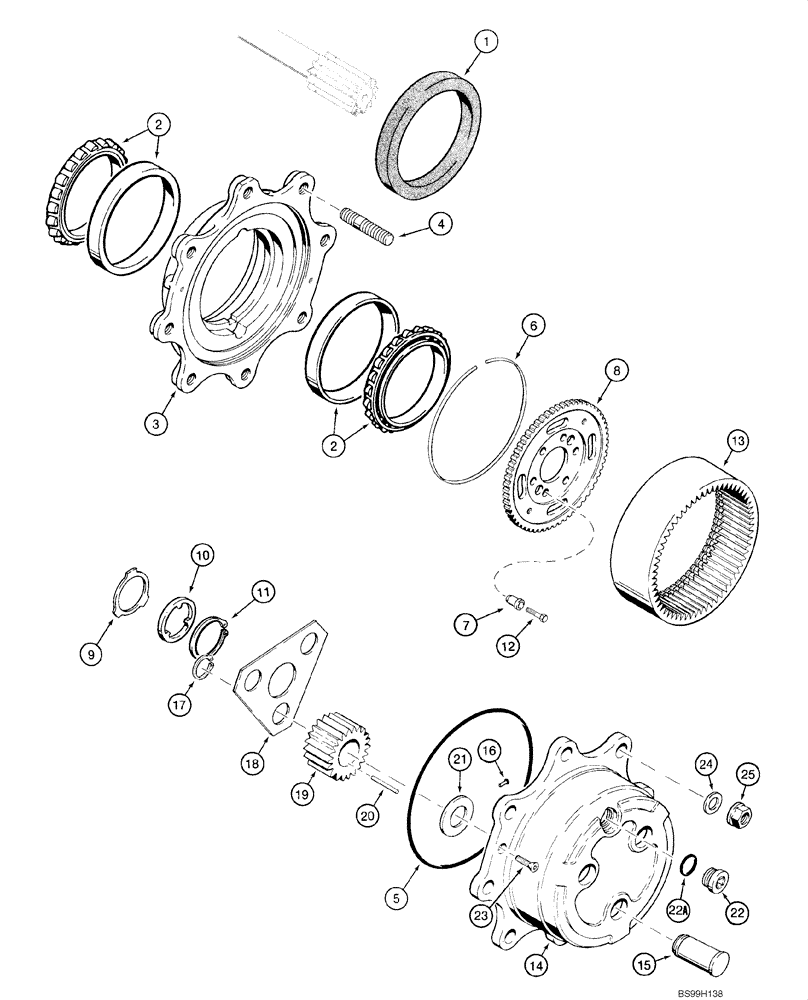

Запчасти Case 570MXT (06-06) - AXLE, FRONT DRIVE - PLANETARY (06) - POWER TRAIN

87417387

4WD AXLE ASSY

Front, Incl. Ref 1 - 25; Also Includes Parts On Figures 06-02 - 06-08; Replaces 427084A1

1шт.

87417387R

REMAN-AXLE

Remanufactured, 87417387 Axle

1шт.

87417387C

CORE-AXLE

Return Number, 87417387 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy,

1шт.

1

311569A1

OIL SEAL,130mm ID x 160mm OD x 14mm Thk

Triple Lip

2шт.

2

1966169C1

BEARING CONE,95 mm ID x 135 mm OD x 20 mm

4шт.

3

144466A1

HUB

Incl. Ref 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

Hub

1шт.

4

100556A1

STUD

8шт.

5

100552A1

O-RING,215.57mm ID x 220.81mm OD x 2.62mm Thk

2шт.

6

100559A1

SPECIAL RING

Backup

2шт.

7

116426A1

BUSHING

Bushing

12шт.

8

116427A1

GEAR

Ring Gear

2шт.

9

190684A1

THRUST WASHER

2шт.

10

190682A1

THRUST WASHER

2шт.

11

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

2шт.

12

116425A1

BOLT

12шт.

13

100561A1

GEAR

Ring

2шт.

14

100554A1

PINION CARRIER

Planetary; Incl. 100553A1, Ref 14 - 22A

2шт.

14

100553A1

HOUSING ASSY.

Carrier, Incl. Ref 14 - 16

2шт.

14

NSS

NOT SOLD SEPARAT

Carrier

1шт.

15

NSS

NOT SOLD SEPARAT

Shaft, Pinion

3шт.

16

K395093

HEADED PIN,12mm OD x 15mm L

1шт.

B17575

FLUID

89 ml, Black RTV Silicone, Planetary, Serial Range: Cover-Hub

1шт.

17

800-1134

SNAP RING,M34, Ext

6шт.

18

100555A1

LARGE PLATE

PLATE, LARGE Retainer

2шт.

19

K395114

GEAR

Sun - Not Shown

2шт.

19

100562A1

GEAR, PLANETARY

GEAR, PLANET Pinion Gear

6шт.

20

114295A1

10 NEEDLE BRG KIT

Package of 10 Needles

9шт.

21

K395091

THRUST WASHER

6шт.

22

100557A1

PLUG, DRAIN,M30 x 2

Incl. Ref 22A

2шт.

22a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

23

K395082

SCREW,M8 x 20mm

M8 x 20

4шт.

24

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

Not Included In Assembly, Purchase Separately

16шт.

25

825-11418

NUT,M18 x 1.5, Cl 8

Not Included In Assembly, Purchase Separately

16шт.

B17575

FLUID

89 ml, Black RTV Silicone, Planetary, Serial Range: Cover-Hub

1шт.
