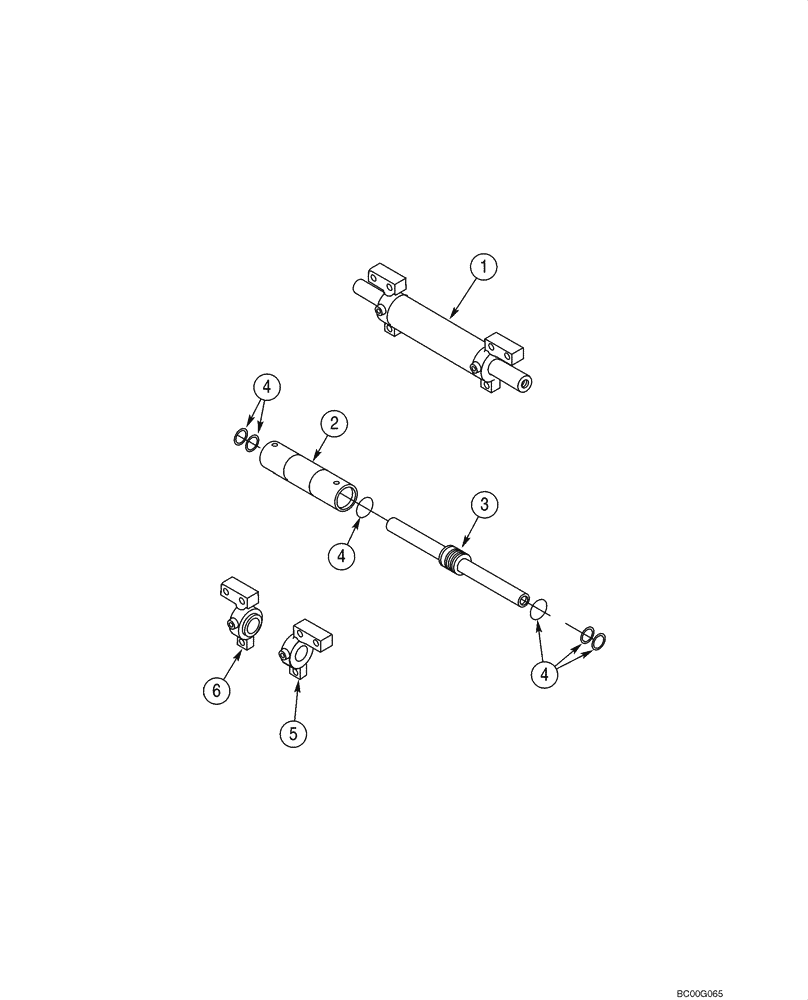

Запчасти Case 570MXT (05-10) - AXLE, FRONT (429229A1 / 86990837) - CYLINDER, STEERING (IF USED) (05) - STEERING

429229A1

STEERING AXLE

Front, Two Wheel Drive, Incl. Figures 05-08 - 05-11; No Longer Available, Order 86990837 Axle

1шт.

86990837

AXLE

Front, Two Wheel Drive, Incl. Figures 05-08 - 05-11

1шт.

1

401055A1

STEERING CYLINDER

(Two Wheel Drive) Incl. Ref 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

3

401062A1

PISTON ROD

1шт.

4

401061A1

SEAL KIT

Component Parts Not Serviced Separately

1шт.

5

401063A1

HEAD ASSY.

Right-Hand

1шт.

6

401064A1

HEAD ASSY.

Left-Hand

1шт.
