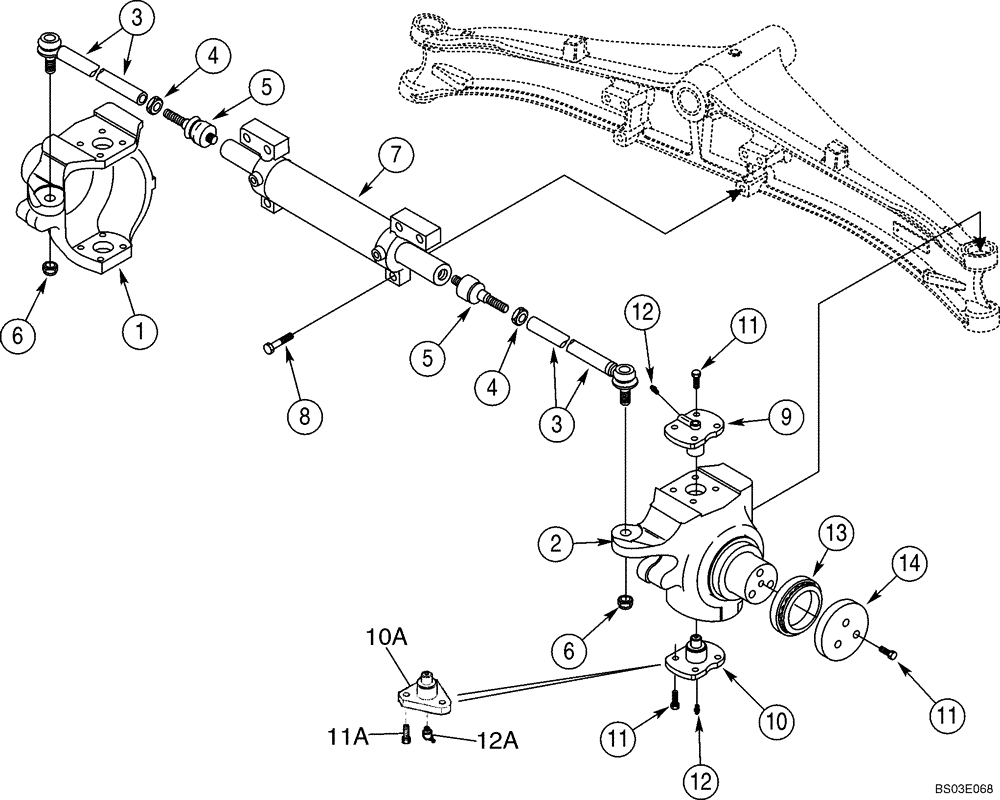

Запчасти Case 570MXT (05-09) - AXLE, FRONT (429229A1 / 86990837) - HOUSING, SWIVEL (IF USED) (05) - STEERING

429229A1

STEERING AXLE

Front, Two Wheel Drive, Incl. Figures 05-08 - 05-11; No Longer Available, Order 86990837 Axle

1шт.

86990837

AXLE

Front, Two Wheel Drive, Incl. Figures 05-08 - 05-11

1шт.

1

429231A1

STEERING KNUCKLE,RH

Swivel, Left-Hand

1шт.

2

429232A1

STEERING KNUCKLE,LH

Swivel, Right-Hand

1шт.

401052A1

STEERING ASSY

Arm, Incl. Ref 3 - 5

2шт.

3

401054A1

TIE-ROD,34mm OD x 260mm L

TIE ROD

1шт.

4

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

1шт.

5

112509A1

BALL JOINT

1шт.

6

905839R1

LOCK NUT,M18 x 1.5, Thin

2шт.

7

401055A1

STEERING CYLINDER

(Two Wheel Drive) See Figure(s) 5-10

1шт.

8

863-16070

HEX SOC SCREW,M16 x 70mm, Cl 12.9

6шт.

9

122265A1

PIN,35mm / 45mm OD x 45.5mm L

King, Upper

2шт.

10

122264A1

PIN

King, Lower, 429229A1 Axle

2шт.

10a

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

King Pin, Lower; 86990837 Axle, Triangular Shape

2шт.

11

100533A1

BOLT,Self-Lock, M12 x 30mm

Lock, M12 x 30; (14) 86990837 Axle; (22) 429229A1 Axle

14-22шт.

11a

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

Lock, M14 x 35; Lower King Pin, 86990837 Axle

6шт.

12

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

(2) 86990837 Axle; (4) 429229A1 Axle

2-4шт.

12a

N13505

LUBE NIPPLE,45 Degree, M6 x 1

Lower King Pin, 86990837 Axle

2шт.

13

401059A1

THRUST BEARING

Thrust

2шт.

14

401060A1

THRUST WASHER

2шт.
