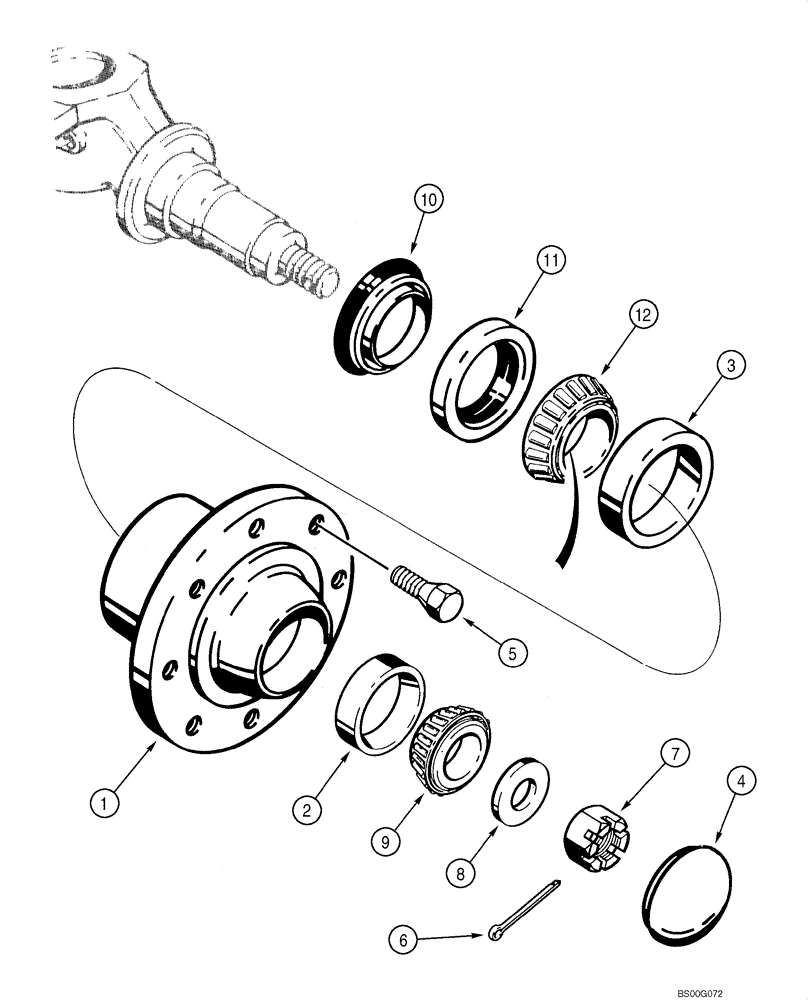

D75103
HUB
Assembly, Incl. Ref 1 - 3, 11, 12; Order Ref 1 - 3
2шт.
1
A66759
HUB
1шт.
2
619387R1
BEARING CUP
3-1/16 OD
1шт.
3
625743C1
BEARING CUP,90mm OD x 18.5mm W
3-35/64 OD
1шт.
4
D143405
CAP
2шт.
5
A38208
WHEEL BOLT,5/8-18 UNF Class 2A
16шт.
6
432-1232
COTTER PIN,3/16" OD x 2" L
2шт.
7
425-1918
SLOTTED NUT,1 1/8"-12, G5, Thk
2шт.
8
D74949
WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk
2шт.
9
G15215
ROLLER BEARING
2шт.
10
A61449
SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk
Spindle
2шт.
11
A61448
OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk
Hub
2шт.
12
296824A1
TAPERED BEARING,55mm ID x 23mm W
2шт.
