Запчасти Case 570MXT (05-04) - CYLINDER ASSY - STEERING (D138954 / 437320A1 FRONT AXLE) (IF USED) (05) - STEERING

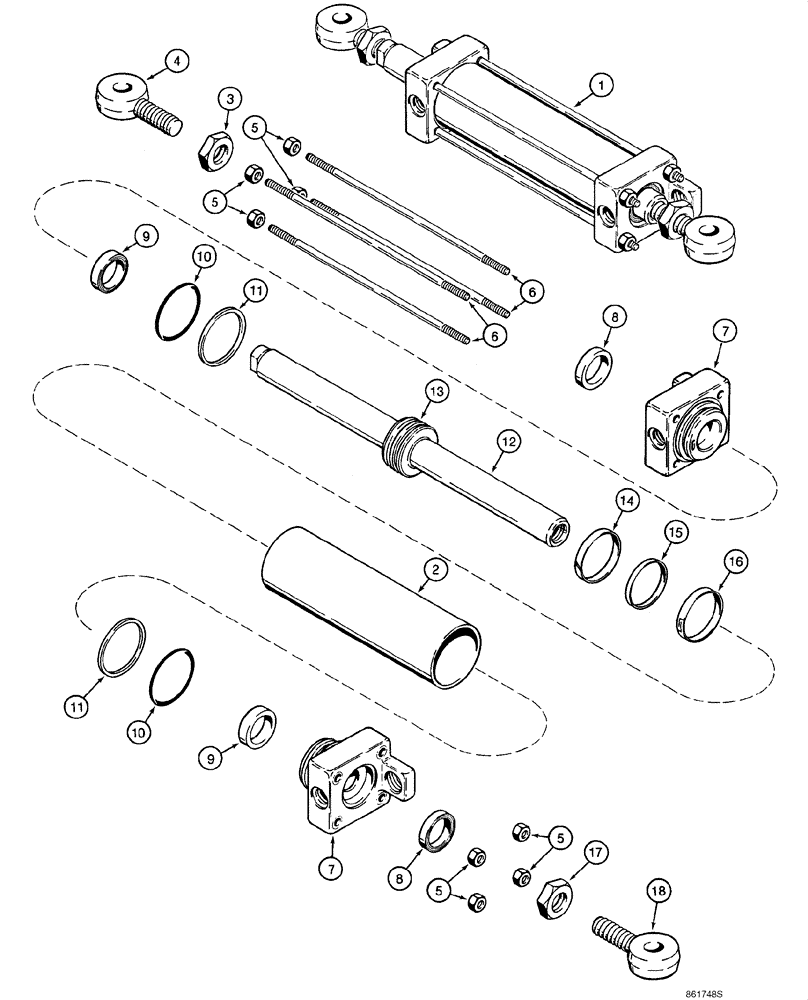

Схема запчастей Case 570MXT - (05-04) - CYLINDER ASSY - STEERING (D138954 / 437320A1 FRONT AXLE) (IF USED) (05) - STEERING
10
16
8
8
3
13
5
10
11
18
9
12
7
14
5
5
6
6
11
9
5
15
17
4
1
7

Артикул

Название

Примечание

Количество

1

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

Steering, 70 ID x 170 strk; Incl. Ref 1 - 18

1шт.

1

G107720R

REMAN-HYD CYLINDER

570MXT

1шт.

1

G107720C

CORE-HYD CYLINDER

Return Number

1шт.

2

G106808

TUBE,69.85 mm ID x 79.76 mm OD x 233.60 mm L

Tube

1шт.

3

129-369

JAM NUT,Jam, 7/8"-14, G5

1шт.

4

G106832

BALL JOINT

Eye, Left-Hand Thread

1шт.

5

425-106

NUT,3/8"-16, Cl 5

8шт.

6

G106817

TIE-ROD

TIE ROD 338 mm (13-5/16 in)

4шт.

7

G106810

CYLINDER END CAP,50.83mm Bore, 38.25mm Rod, 102mm W

Gland

2шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Wiper

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

1шт.

10

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

11

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

Backup

1шт.

G107721

ROD ASSY.

Piston, 38 mm (1-1/2 in) dia; Incl. Ref 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Piston Rod

1шт.

13

NSS

NOT SOLD SEPARAT

Piston

1шт.

14

G105187

RING

Wear

1шт.

15

G104439

RING

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

1шт.

17

425-1514

JAM NUT,Jam, 7/8"-14, G5

1шт.

18

G106813

BALL JOINT

Eye, Right-Hand Thread

1шт.

G110045

KIT

Seal, Incl. Ref 8 - 11, 14 - 16

1шт.

Выбрано товаров: 22
