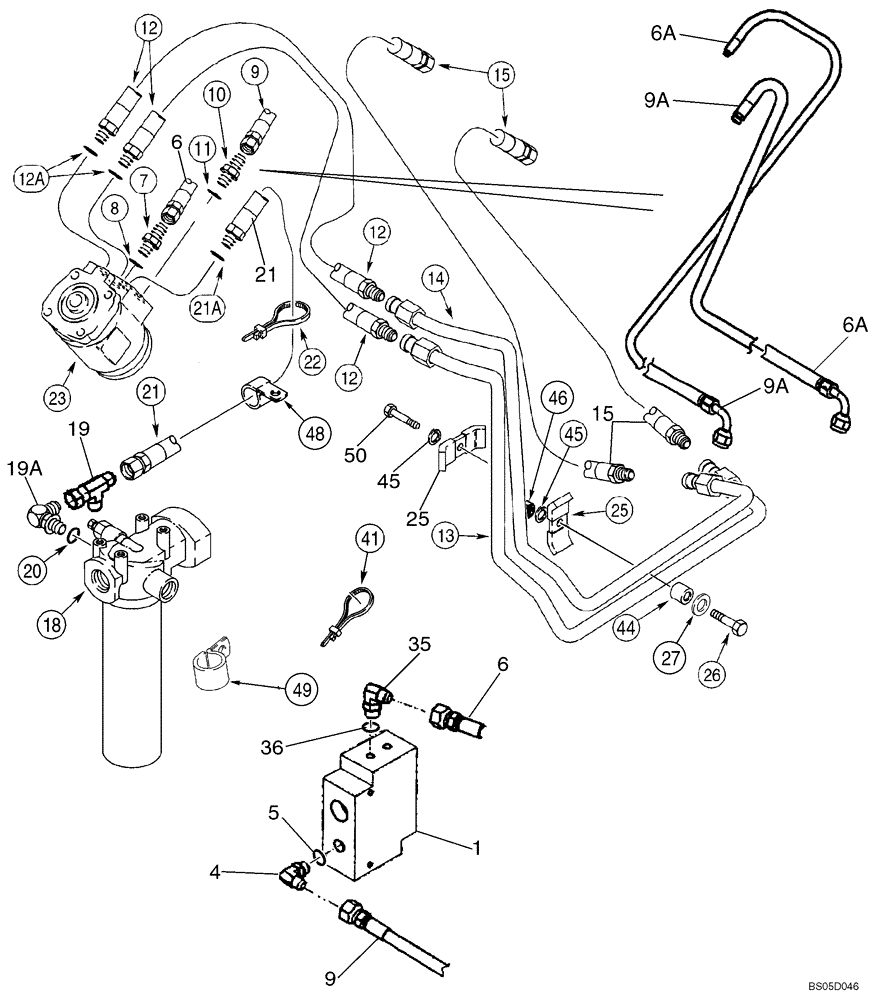

Запчасти Case 570MXT (05-02A) - HYDRAULICS - STEERING (MODELS WITH HUSCO LOADER VALVE) (05) - STEERING

.

MODELS WITH HUSCO LOADER VALVE

1шт.

1

87548326

HYDRAULIC VALVE

Priority Flow Divider; See Figure 08-38; If Used; Replaces D132476

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 5; Used On Models With Separate Flow Divider/Priority Valve

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

87452272

HOSE ASSY.

1540 mm (60-11/16 in); Steering Pilot; Steering Control Valve Small Center Port to Flow Divider Valve; Used On Models With Separate Flow Divider/Priority Valve

1шт.

6a

87358221

HOSE ASSY.

1450 mm (57-5/64 in), 7/16 elb x 7/16 fem; Strg Pilot; Attaches To Load Sense Port On Bottom Of Ldr Valve On Models W/Built-In Priority Valve; Therefore, Models W/O Separate Flow Divider/Priority Valve; Replaces 87323357 1400 mm Hose7/16 elb x 9/16 fem

1шт.

7

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref 8

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

87452271

HOSE ASSY.

1610 mm (63-7/16 in); Steering Pressure; Loader Control Valve to Flow Divider Valve; Used On Models With Separate Flow Divider/Priority Valve

1шт.

9a

87323356

HOSE ASSY.

1300 mm (51-3/16 in); Steering Pressure; Attaches to Priority Flow Port On Top Of Loader Valve On Models With Built-In Priority Valve; Therefore, Models Without Separate Flow Divider/Priority Valve

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

132929A1

HOSE

730 mm; Incl. Ref 12A

2шт.

12a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

120386A1

TUBE

Lower; To Steering Cylinder Right-Hand Port Hose

1шт.

14

120388A1

TUBE

Upper; To Steering Cylinder Left-Hand Port Hose

1шт.

15

144219A1

HOSE,9.53mm ID x 485mm L

To Steering Cylinder

2шт.

18

122536A1

HYDRAULIC OIL FILTER

Hydraulic Oil; See Figure 08-31; Models Without 3000 Pound Rear Counterweight (W PTO)

1шт.

18

87440045

FILTER ASSY

Hydraulic Oil; See Figure 08-31; Models With 3000 Pound Rear Counterweight (W/O PTO)

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

If Used

1шт.

19a

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 20; Models With Holding Valve Uses 218-5511 Tee

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

176328A1

HOSE

1730 mm; Return; Steering Control Valve Upper Right-Hand Port to Filter; Incl. Ref 21A

1шт.

21a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

4шт.

23

377805A1

PUMP

Steering; Incl. 396591A1, 396592A1, 396593A1

1шт.

23

377805A1R

REMAN-STEERING VALVE

Reman For New P/N 377805A1

1шт.

23

377805A1C

CORE-STEERING VALVE

Return Part Number

1шт.

396591A1

KIT

Seal

1шт.

396592A1

KIT

Anticavitation

1шт.

396593A1

KIT

Bolt

1шт.

25

D143846

CLAMP

2шт.

26

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

1шт.

27

368417A1

WASHER

1шт.

35

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Incl. Ref 36; Used On Models With Separate Flow Divider/Priority Valve

1шт.

36

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

7шт.

44

128265A1

SPACER,10.31mm ID x 15.85mm OD x 13mm L

1шт.

45

892-11010

LOCK WASHER,M10

2шт.

46

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

48

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

49

49773

CLAMP

1шт.

50

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.
