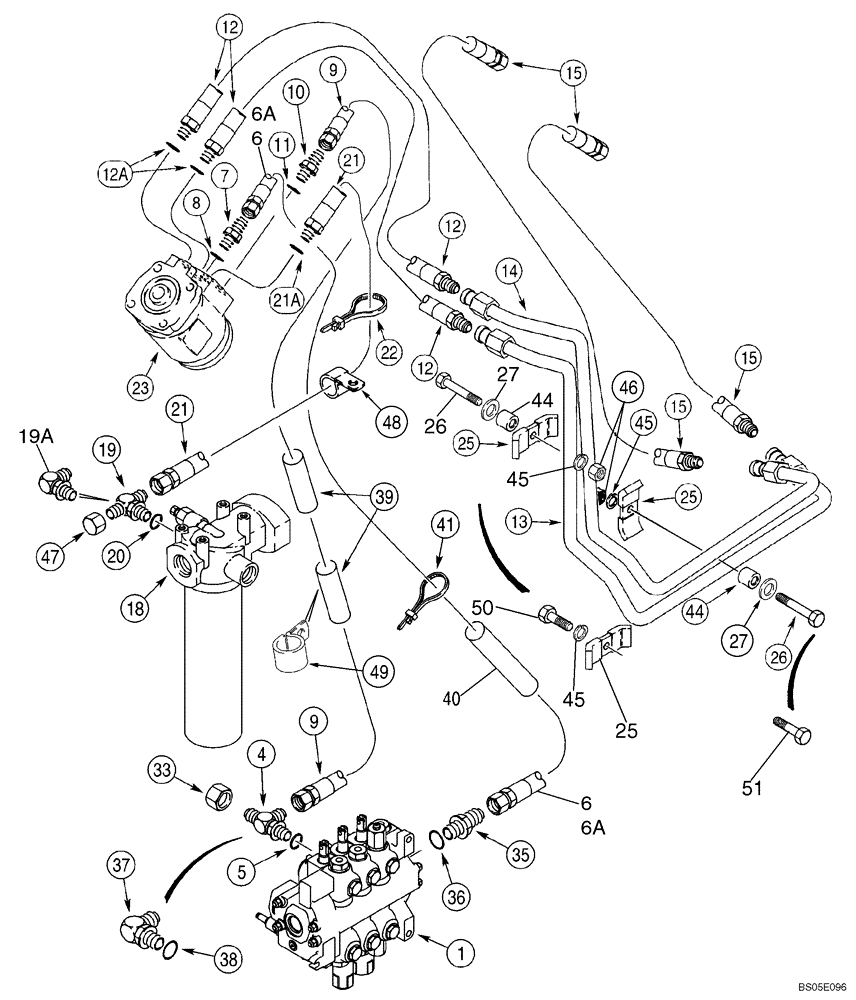

Запчасти Case 570MXT (05-02) - HYDRAULICS - STEERING (MODELS WITHOUT HUSCO LOADER VALVE) (05) - STEERING

.

MODELS WITHOUT HUSCO LOADER VALVE

1шт.

1

REF

INSTRUCTION

Valve, Control; Loader Control; See Figure 08-14, 08-15

1шт.

4

218-5292

TEE,37 Degree, 3/4"-16, 7/8"-14 O-Ring Run, 3/4"-16

Incl. 5; Models With Loader Tool Quick Coupler

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

409403A1

HOSE ASSY.

1605 mm; Steering Pilot; Steering Control Valve Small Center Port to Loader Control Valve; If Used

1шт.

6a

144221A1

HOSE

1275 mm (50-16/64 in); Steering Control; If Used

1шт.

7

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 8

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

224423A2

HOSE ASSY.

1300 mm (51-3/16 in); Steering Pressure; Loader Control Valve to Steering Control Valve Lower Right-Hand Port; Replaces 224423A1

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

132929A1

HOSE

730 mm; Incl. 12A

2шт.

12a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

120386A1

TUBE

Lower; To Steering Cylinder Right-Hand Port Hose

1шт.

14

120388A1

TUBE

Upper; To Steering Cylinder Left-Hand Port Hose

1шт.

15

144219A1

HOSE,9.53mm ID x 485mm L

To Steering Cylinder

2шт.

18

122536A1

HYDRAULIC OIL FILTER

Hydraulic Oil; See Figure 08-31; Models Without 3000 Pound Rear Counterweight (W PTO)

1шт.

18

87440045

FILTER ASSY

Hydraulic Oil; See Figure 08-31; Models With 3000 Pound Rear Counterweight (W/O PTO)

1шт.

19

218-5511

TEE,37 Degree, 3/4"-16 x 9/16"-18, O-Ring Br

Incl. 20; Used On Models With Holding Valve

1шт.

19a

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 20; Models Without Holding Valve

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

176328A1

HOSE

1730 mm; Return; Steering Control Valve Upper Right-Hand Port to Filter; Incl. 21A

1шт.

21a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

23

377805A1

PUMP

Steering; Incl. 396591A1, 396592A1, 396593A1

1шт.

23

377805A1R

REMAN-STEERING VALVE

Reman For New P/N 377805A1

1шт.

23

377805A1C

CORE-STEERING VALVE

Return Part Number

1шт.

396591A1

KIT

Seal

1шт.

396592A1

KIT

Anticavitation

1шт.

396593A1

KIT

Bolt

1шт.

25

D143846

CLAMP

2шт.

26

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

If Used

2шт.

27

368417A1

WASHER

1-2шт.

33

218-756

CAP,37 Degree, 7/8"-14

If Used

1шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 36

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 38

1шт.

38

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

39

D132982

PADDLE,26.87mm ID x 400mm L

2шт.

40

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

460 mm (18-1/8 in)

1шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

1шт.

44

128265A1

SPACER,10.31mm ID x 15.85mm OD x 13mm L

1-2шт.

45

892-11010

LOCK WASHER,M10

2шт.

46

829-1410

NUT,M10 x 1.5, Cl 10.9

1-2шт.

47

218-755

CAP,37 Degree, 3/4"-16

Used on Models with Three Point Hitch; Used with Ref 19

1шт.

48

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

49

49773

CLAMP

1шт.

50

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

If Used

1шт.

51

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

If Used

1шт.
