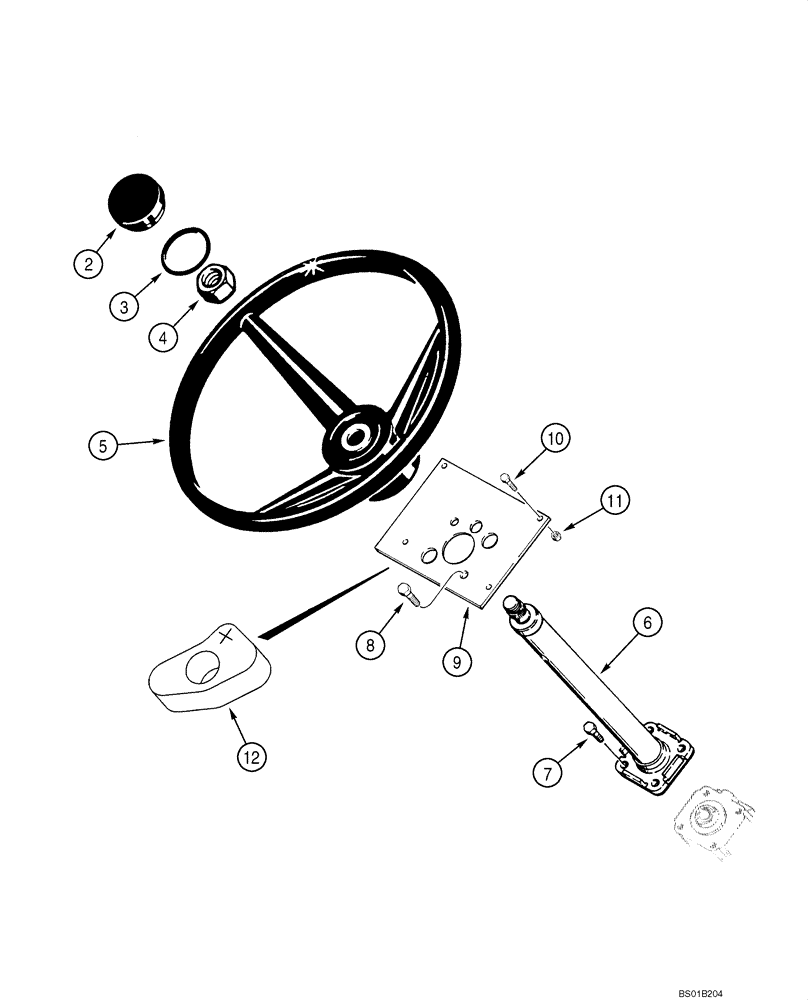

Запчасти Case 570MXT (05-01) - STEERING WHEEL - COLUMN (05) - STEERING

2

114882A2

CAP,Polystyrene

Replaces 114882A1

1шт.

3

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

4

1959509C1

NUT,Hex, M20 x 5, RH

1шт.

5

A65544

STEERING WHEEL

1шт.

6

142930A2

STEERING COLUMN

See Figure 05-03

1шт.

7

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

9

183085A2

LARGE PLATE

PLATE, LARGE

1шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

12

337482A1

PAD

Foam, Adhesive Back; Cab Models

1шт.
