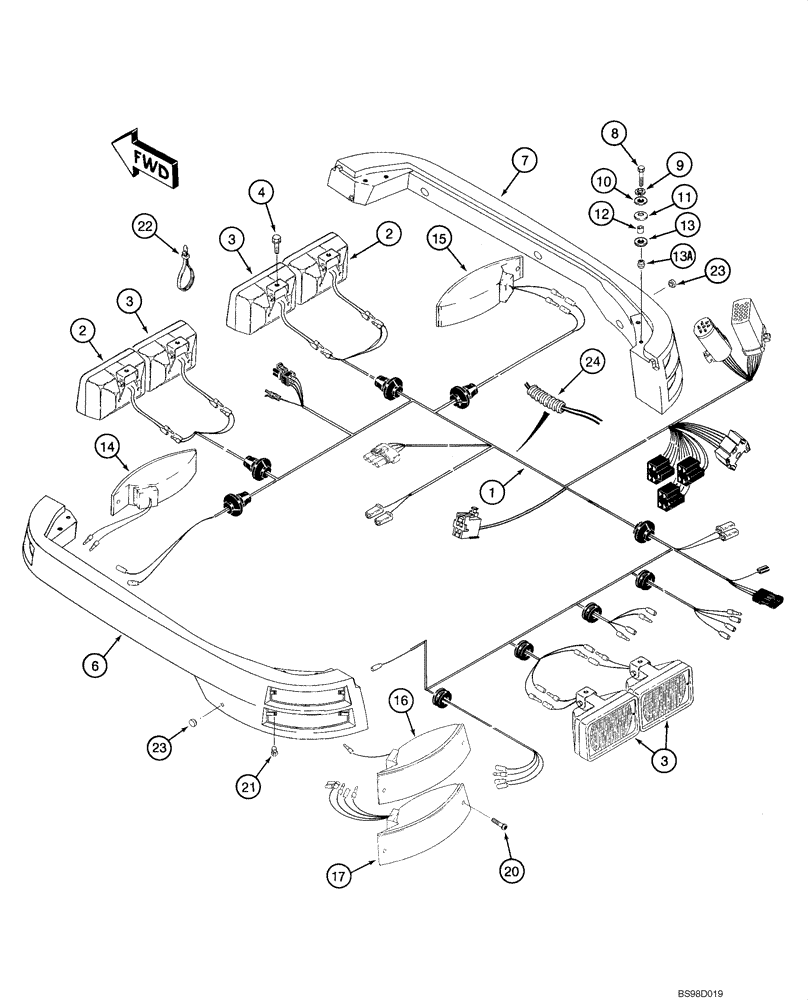

Запчасти Case 570MXT (04-15) - ELECTRICAL - LAMPS, ROPS CAB (04) - ELECTRICAL SYSTEMS

1

282017A2

HARNESS

Cab; Models Without Air Conditioning

1шт.

1a

282018A2

HARNESS

Cab; Models With Air Conditioning; Not Illustrated; For Service Order 282017A2, Ref 1; 130876A1, Figure 04-08; Ref 27

1шт.

2

398846A3

LIGHT ASSY.

Front Driving; Incl. 1312210C2, 404996A1; ABL Brand; If Used

2шт.

2

87343247

FRONT LAMP,Halogen, 12V, 55W, Clear

Driving; Outer; Incl. 1312210C2 Bulb; Cobo Brand; If Used

2шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, H3

1шт.

NSS

NOT SOLD SEPARAT

Lens

1шт.

3

398847A3

WORK LAMP,Halogen, 12V, 55W, Clear

Front and Rear Flood and Work Lamps; Incl. 1312210C2, 276498A1

2-6шт.

3

87443080

WORK LAMP,Halogen, 12V, 55W, Clear

Rear Flood; Incl. 1312210C2 Bulb; Cobo Brand; If Used

2-6шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, H3

1шт.

NSS

NOT SOLD SEPARAT

Lens, With Hardened Glass, Replaces 1964801C1 Non-Hardened Lens Used In Production

1шт.

4

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

M10 x 15

4-8шт.

6

187834A1

BRACKET

Left-Hand; Incl. (4) Ref 13A; (6) Ref 21

1шт.

7

187836A1

BRACKET

Right-Hand; Incl. (4) Ref 13A; (6) Ref 21

1шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

8шт.

9

892-11008

LOCK WASHER,8mm ID

8шт.

10

495-81001

WASHER,5/16"

8шт.

11

186756A1

SPRING WASHER

8шт.

12

183598A2

SPACER

8шт.

13

495-21056

WASHER,1/2"

8шт.

13a

181385A1

RIVET

M8

8шт.

14

131797A1

LIGHT,12V, 27W, Amber

Turn Signal and Flasher; Amber; Left Front Corner; See Figure 04-18

1шт.

15

131796A1

LIGHT,12V, 27W, Amber

Turn Signal and Flasher; Amber; Right Front Corner; See Figure 04-18

1шт.

16

183504A1

LIGHT,12V, 27W, Amber

Turn Signal and Flasher; Amber; Upper; Left Rear Corner; See Figure 04-18

1шт.

17

131795A1

LIGHT,12V, 27W, Red

Stop And Tail Lamp; Red; Lower; Left Rear Corner; See Figure 04-18

1шт.

18

183505A1

LIGHT,12V, 27W, Amber

Turn Signal and Flasher; Amber; Upper; Right Rear Corner; See Figure 04-18

1шт.

19

131794A1

LIGHT,12V, 27W, Red

Stop And Tail Lamp; Red, Lower; Right Rear Corner; See Figure 04-18

1шт.

20

190-105

SCREW,Phil Pan Hd, #10 - 32 x 1 3/4"

12шт.

21

181459A1

NUT

No. 10 NF

12шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

7шт.

23

L60224

BUMPER

2шт.

24

131371C1

CONDUIT

5/8 x 53/64 x 6 in lg

1шт.
