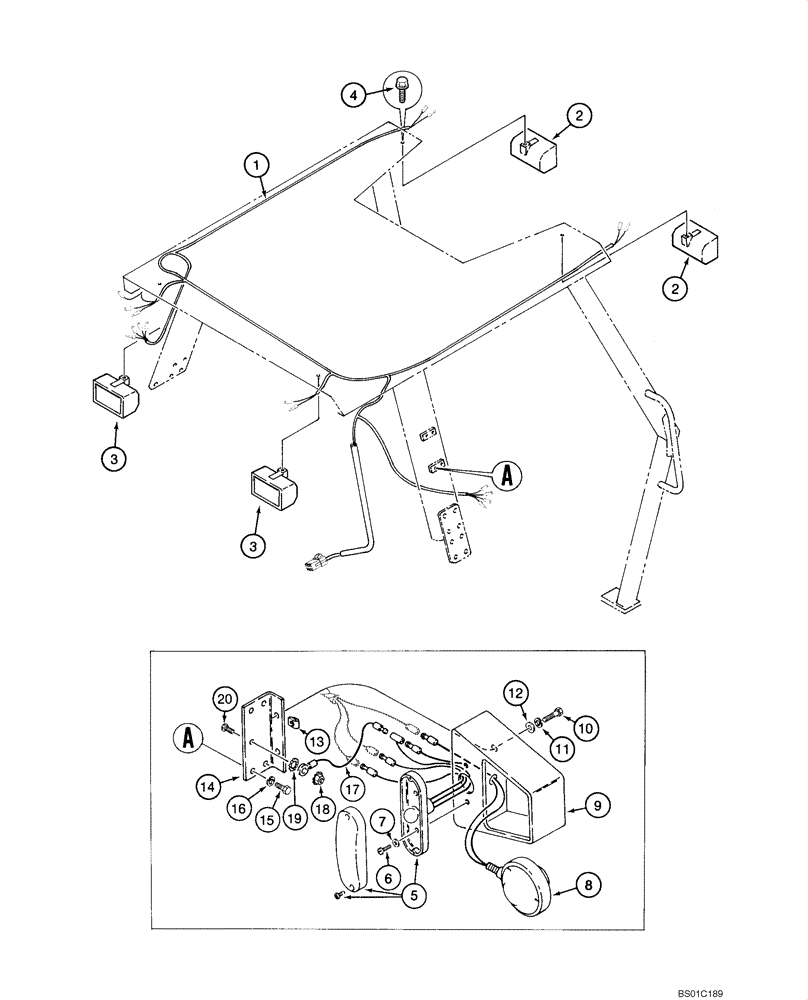

Запчасти Case 570MXT (04-14) - ELECTRICAL - LAMPS, SHORT ROPS CANOPY WITH MINIMAL ROOF (04) - ELECTRICAL SYSTEMS

1

295065A1

HARNESS

Canopy Lamps

1шт.

194262A1

GROMMET,25.4mm ID x 57.15mm OD x 12.7mm Thk

4шт.

2

398846A3

LIGHT ASSY.

Front Driving; Outer; Incl. 1312210C2, 404996A1; ABL Brand; If Used

2шт.

2

87343247

FRONT LAMP,Halogen, 12V, 55W, Clear

Driving; Outer; Incl. 1312210C2 Bulb; Cobo Brand; If Used

2шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, H3

1шт.

NSS

NOT SOLD SEPARAT

Lens

1шт.

3

398847A3

WORK LAMP,Halogen, 12V, 55W, Clear

Front and Rear Flood and Work Lamps; Incl. 1312210C2, 276498A1; ABL Brand; If Used

2шт.

3

87443080

WORK LAMP,Halogen, 12V, 55W, Clear

Rear Flood; Incl. 1312210C2 Bulb; Cobo Brand; If Used

2шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, H3

1шт.

NSS

NOT SOLD SEPARAT

Lens, With Hardened Glass; Replaces 1964801C1 Non-Hardened Lens Used In Production

1шт.

4

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

M10 x 15

4шт.

5

D121152

LAMP,12V

Stop And Tail; See Figure 04-16

2шт.

6

187-1917

SELF-TAP SCREW,Pan Hd, #8-16 x 5/8"

4шт.

7

495-21019

WASHER,#8

4шт.

8

D122121

LAMP,12V

Turn Signal and Flasher; See Figure 04-17

2шт.

9

D120124

BRACKET

2шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

11

492-11031

LOCK WASHER,5/16"

4шт.

12

495-21038

WASHER,5/16"

4шт.

13

131-636

SPRING NUT,J, Ret, 5/16"-18

4шт.

14

D134875

BRACKET

2шт.

15

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

16

492-11031

LOCK WASHER,5/16"

4шт.

17

D134918

ELECTRICAL WIRE

WIRE Ground

2шт.

18

193-1000

NUT,Keps, w/LW,#10-32

2шт.

19

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

2шт.

20

459-1106

SCREW,Slotted Pan Hd, #10-32 x 3/8"

2шт.
