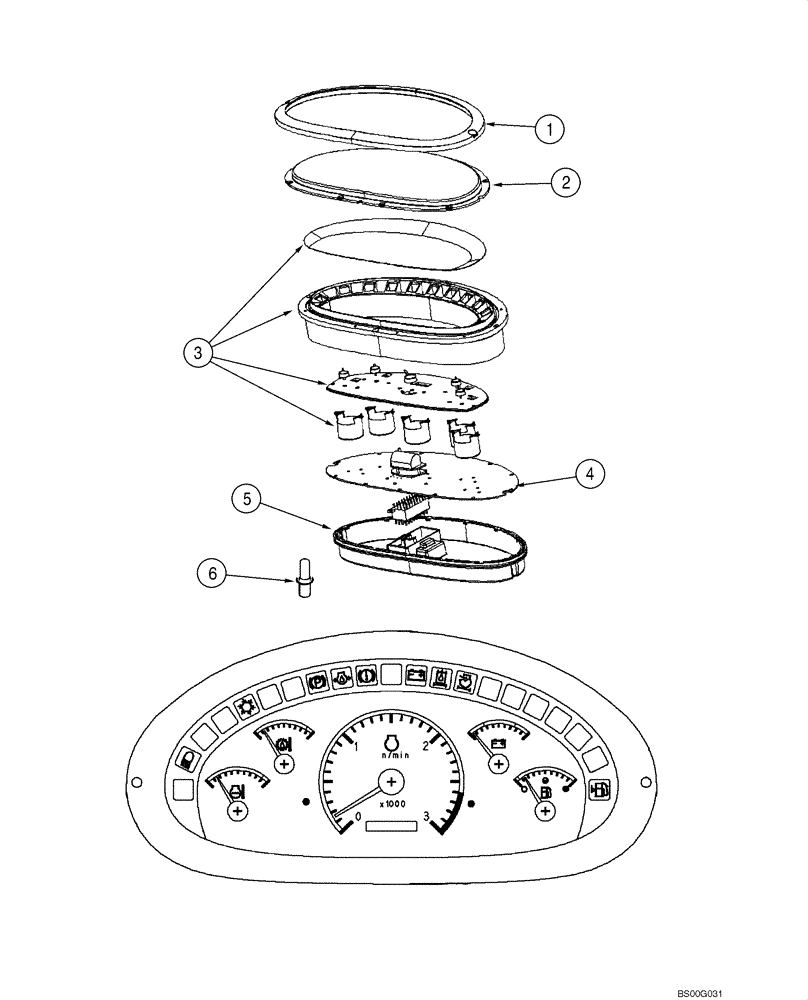

Запчасти Case 570MXT (04-12) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

395943A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Incl. Ref 1 - 4, 5, 6; Includes Analog Hourmeter, Ref 4; No Longer Available, Order 87339012 Cluster

1шт.

87339012R

REMAN-INSTR CLUSTER

570MXT; Reman for New P/N 395943A1

1шт.

87339012C

CORE-CLUSTER, INSTR

Return Number

1шт.

87339012

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Incl. Ref 1 - 3, 4A - 6; Includes Digital PCB/Hourmeter, Ref 4A

1шт.

87339012R

REMAN-INSTR CLUSTER

570MXT

1шт.

87339012C

CORE-CLUSTER, INSTR

Return Number

1шт.

1

370755A1

BEZEL

Black

1шт.

NSS

NOT SOLD SEPARAT

No. 6 x 1/4, Screw, Trim

2шт.

2

370756A1

LENS

Clear; Incl. O-Ring Which Is Not Serviced Separately

1шт.

3

NSS

NOT SOLD SEPARAT

Incl. Overlay, Seal and Gauges Which Are Not Serviced Separately

1шт.

4

370759A1

HOURMETER

Analog; Circuit Board; Incl. Seal and Hourmeter Which Are Not Serviced Separately; Used With 395943A1 Analog Cluster

1шт.

87339012R

REMAN-INSTR CLUSTER

570MXT; Reman for New P/N 370759A1

1шт.

87339012C

CORE-CLUSTER, INSTR

Return Number

1шт.

4a

NSS

NOT SOLD SEPARAT

Digital PCB/Hourmeter; Includes Seal and Hourmeter Which Are Not Serviced Separately; Interchangeable With Ref 4 Hourmeter In 395943A1 Analog Cluster

1шт.

NSS

NOT SOLD SEPARAT

No. 6 x 3/8; Screw

25шт.

5

370760A1

REAR COVER

Rear; Incl. O-Ring Which Is Not Serviced Separately

1шт.

NSS

NOT SOLD SEPARAT

No. 6 x 3/4; Screw; Rear Cover

2шт.

6

388053A2

BULB,14V, 1W

1W, 14V; Incl. Socket

1шт.
