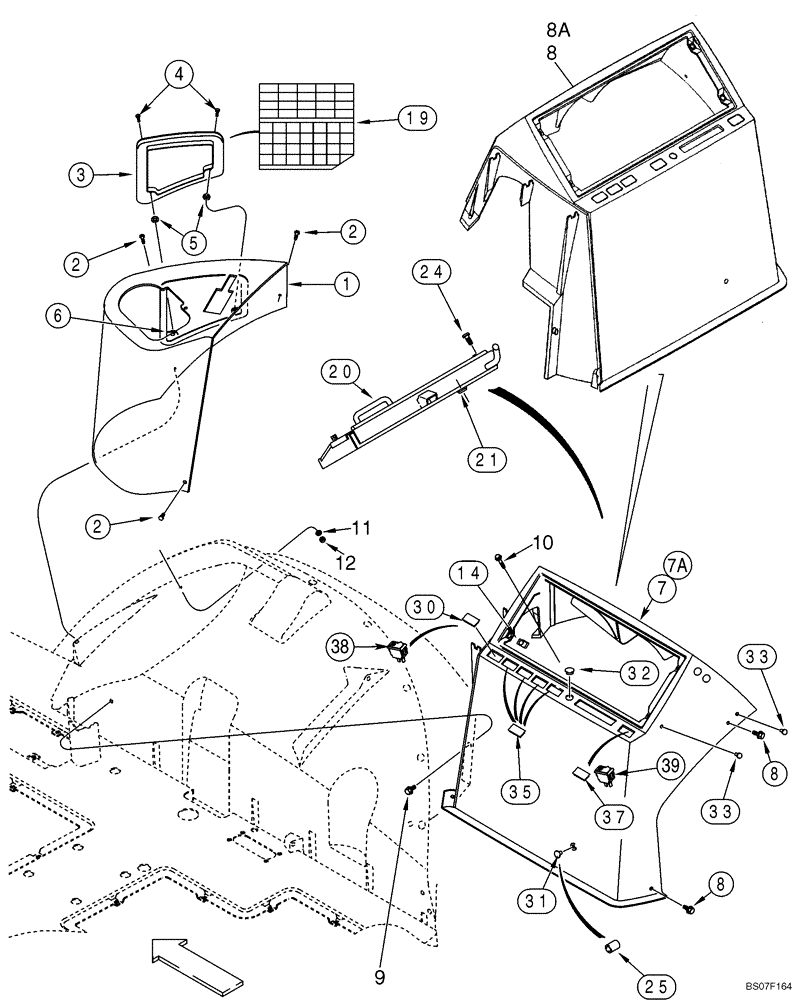

Запчасти Case 570MXT (04-11) - INSTRUMENT PANEL, SIDE - SWITCHES AND COVERS (04) - ELECTRICAL SYSTEMS

1

390993A1

COVER

Loader Control

1шт.

2

87310152

BOLT,M6 x 16 Full SST BLO

M6 x 16, Hex Flange, Stainless Steel; Replaces 555-10 Non-Stainless Steel Screw Used On Some Models; Used With 86625073 M6 Clip

3шт.

86625073

SPRING NUT,M6 x 1

Clip

3шт.

3

390992A1

PANEL

Fuse Access

1шт.

4

87310086

CAPTIVE WASHER SCREW,Sl Pan Hd, #10 - 16 x 17mm, Stainless Steel

Includes Washer, Stainless Steel; Replaces 182276A1 Non-Stainless Steel Screw Used On Some Models

2шт.

5

127009A1

CLIP,ELECTRICAL

2шт.

6

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

7

390720A1

CONSOLE

Side; Models Without Radio; Also Order (1) 181385A1 Threaded Insert; If Used; No Longer Available

1шт.

7a

390721A1

CONSOLE

Side; Models With Radio; Also Order (1) 181385A1 Threaded Insert; If Used; Not Illustrated

1шт.

8

395892A1

CONSOLE

Console, SideModels Without Radio; Also Order (1) 181385A1 Threaded Insert; If Used

1шт.

8a

395893A1

BRACKET

Console, Side; Models With Radio; Also Order (1) 181385A1 Threaded Insert; If Used; Not Illustrated

1шт.

9

87310098

BOLT,M6 x 20 Full SST BLO

Flange Head, M6 x 20, Stainless Steel; Replaces 555-2 Non-Stainless Steel Screw Used On Some Models

3шт.

10

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

11

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

12

832-10406

NUT,M6 x 1, Cl 8

1шт.

14

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

4шт.

19

REF

INSTRUCTION

Decal; Fuse and Relay; See Figure 09-64 - 09-66

1шт.

393009A1

FRAME

Gray; Instrument Panel; Anti-Vandalism; Canopy Models; Incl. 20, 21; Replaces 417301A1 Wheat Colored Panel Used On Some Models

1шт.

20

NSS

NOT SOLD SEPARAT

Cover

1шт.

21

F22426

STOP

3шт.

24

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

4шт.

25

181385A1

RIVET

M8

1шт.

30

86000535

PLUG,1.427" x .62", Plastic

Loader Tool Quick Coupler; If Used

1шт.

31

1340319C1

PLUG

7/16 dia; Replaces 353-425

1шт.

32

353-429

PLUG

11/16 dia

1шт.

33

353-401

PLUG,Dome, .312" hole, Nylon

2шт.

35

86000535

PLUG,1.427" x .62", Plastic

Accessory; If Used

1-4шт.

37

86000535

PLUG,1.427" x .62", Plastic

Three Point Hitch; If Used

1шт.

38

398675A1

SWITCH

Loader Tool Quick Coupler; If Used

1шт.

39

405512A1

ROCKER SWITCH

Three Point Hitch; If Used

1шт.
