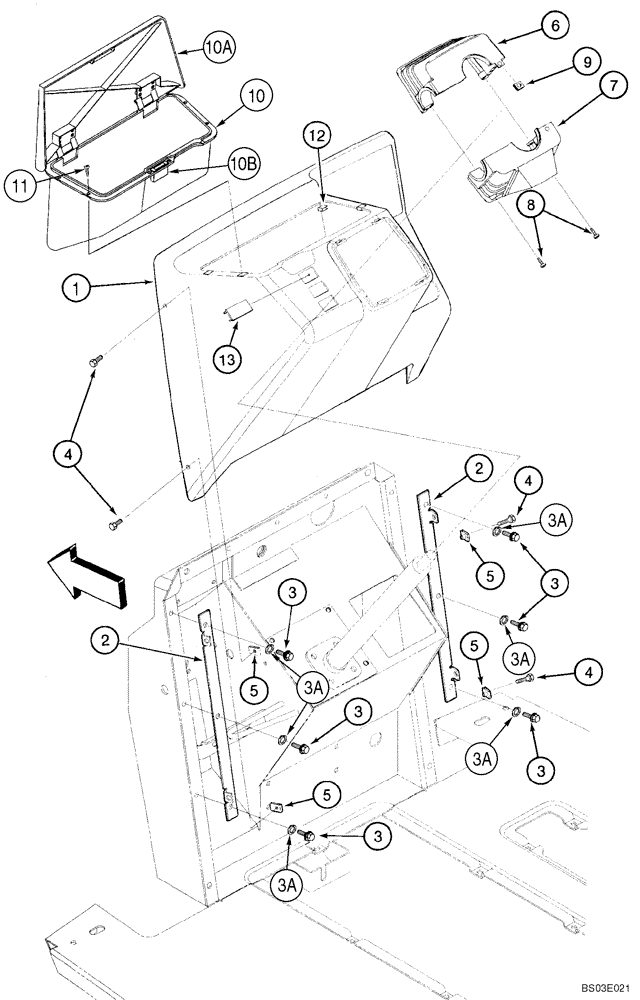

Запчасти Case 570MXT (04-10) - INSTRUMENT PANEL, FRONT - COVERS (04) - ELECTRICAL SYSTEMS

1

390757A1

CONSOLE

Front, Cab or Canopy Models

1шт.

2

137851A1

PLATE

2шт.

3

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

6шт.

3a

892-11008

LOCK WASHER,8mm ID

If Used

6шт.

3a

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If Used

6шт.

4

87310098

BOLT,M6 x 20 Full SST BLO

Flange Head, M6 x 20, Stainless Steel; Replaces 555-2 Non-Stainless Steel Screw Used On Some Models

4шт.

5

833-40406

NUT,M6, U

4шт.

6

119267A2

COVER

Steering Column

1шт.

7

119268A1

COVER

1шт.

8

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

Replaces 140-107 Non-Stainless Steel Screw Used On Some Models

3шт.

9

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

390701A1

BOX

Storage; Incl. 10 - 10B

1шт.

10

122641A2

BOX, TOOL

1шт.

10a

390687A1

COVER ASSY

1шт.

10b

D127335

CATCH

Magnetic

1шт.

11

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

No. 10 x 3/4, Stainless Steel; Replaces 140-107 Non-Stainless Steel Screw Used On Some Models

4шт.

12

176857A1

SPRING NUT

No. 10, J-Type

4шт.

13

86000535

PLUG,1.427" x .62", Plastic

Dome Lamp; If Used

1шт.
