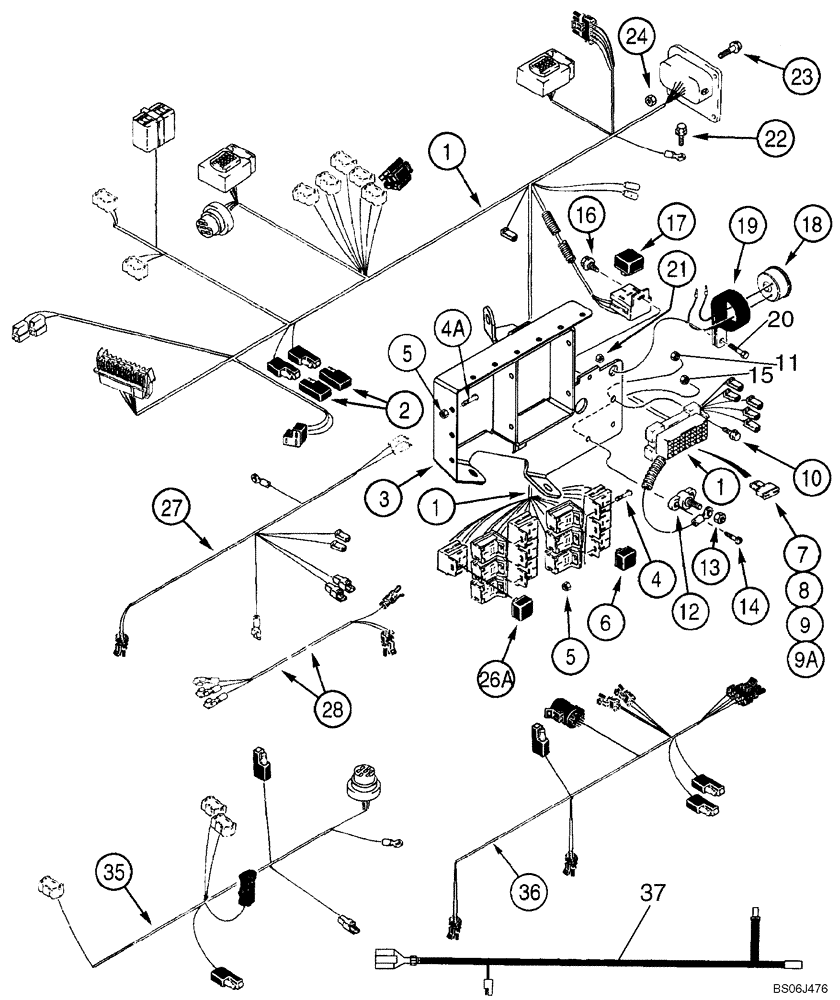

Запчасти Case 570MXT (04-08) - HARNESS, SIDE CONSOLE - MOUNTING AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

87517045

WIRE HARNESS

(4) diode; Side Console; Used With 26A Relay; Replaces 400015A2, 400015A3 (2) diode and 400015A4 (3) diode Harness

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

2-4шт.

3

304898A1

BRACKET

Fuse and Relay Mounting

1шт.

4

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

If Used

4шт.

4a

490-1106

SCREW,Cross Pan Hd, #10-32 x 3/8"

If Used

1шт.

4a

87301687

SCREW,HWH, #10 - 32 x 1/2"

If Used

5шт.

5

193-1000

NUT,Keps, w/LW,#10-32

5шт.

6

314451A1

RELAY

40 amp, 12V; Hella Brand; Models Without Husco Loader Valve; If Used

11шт.

6

87436836

RELAY,12V, 40 Amp

40 amp, 12V; ACB Brand; Models With Husco Loader Valve; If Used

11шт.

6

D128310

RELAY

30 amp, Models With Air Conditioning; Models Without Husco Loader Valve; If Used

1шт.

6

87436836

RELAY,12V, 40 Amp

40 amp, 12V; Models With Air Conditioning; Models With Husco Loader Valve; If Used

1шт.

7

121412A1

FUSE,10A, Mini, Red

Red

5-6шт.

8

121414A1

FUSE,20A, Mini, Yellow

Yellow

1шт.

9

121413A1

FUSE,15A, Mini, Blue

Blue

2-4шт.

9a

121416A1

FUSE,30A, Mini, Green

Green

2шт.

121415A1

FUSE,25A, Mini, Clear

Clear

1шт.

10

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

1шт.

12

184277A1

CONNECTION

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

15

193-1000

NUT,Keps, w/LW,#10-32

2шт.

16

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

1шт.

17

D147166

FLASHER UNIT

Turn Signal and Flasher

1шт.

18

D137468

BUZZER

Warning; Engine Water Temperature; Engine Oil Pressure and Parking Brake

1шт.

19

D120561

CLAMP

1шт.

20

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

22

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

Ground at loader control bracket brace

1шт.

23

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

24

832-10406

NUT,M6 x 1, Cl 8

2шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

26a

347706A3

RELAY,12V, 5A

Sealed Time Delay; Shuttle Interlock Timing Relay; Forward Reverse Control

1шт.

27

130876A1

HARNESS

Adapter; Cab; Attaches To Side Console Instrument Harness For Air Conditioning Connections

1шт.

28

186607A1

HARNESS

Adapter; Engine; Attaches To Side Console Instrument Harness For Air Conditioning Connections

1шт.

35

400623A2

HARNESS

Side Console Options; Incl. (1) L71879; Optional Equipment Harness

1шт.

36

400624A3

HARNESS

Chassis Options; Incl. (2) L71879; Optional Equipment Harness; Models Without Husco Loader Valve

1шт.

36

87452518

WIRE HARNESS

Chassis Options; Models With Husco Loader Valve

1шт.

L71879

DIODE ELEMENT,400V, 3A

1-2шт.

87516577

SERVICE KIT

Fuel Shutoff Solenoid; Incl. Ref 37, Plus Instructions; If Used

1шт.

37

87515549

WIRE HARNESS

Service For Cutout of Fuel Shutoff Solenoid; Incl. (1) L71879 Diode; Fuel Solenoid Relay to Oil Pressure Switch

1шт.
