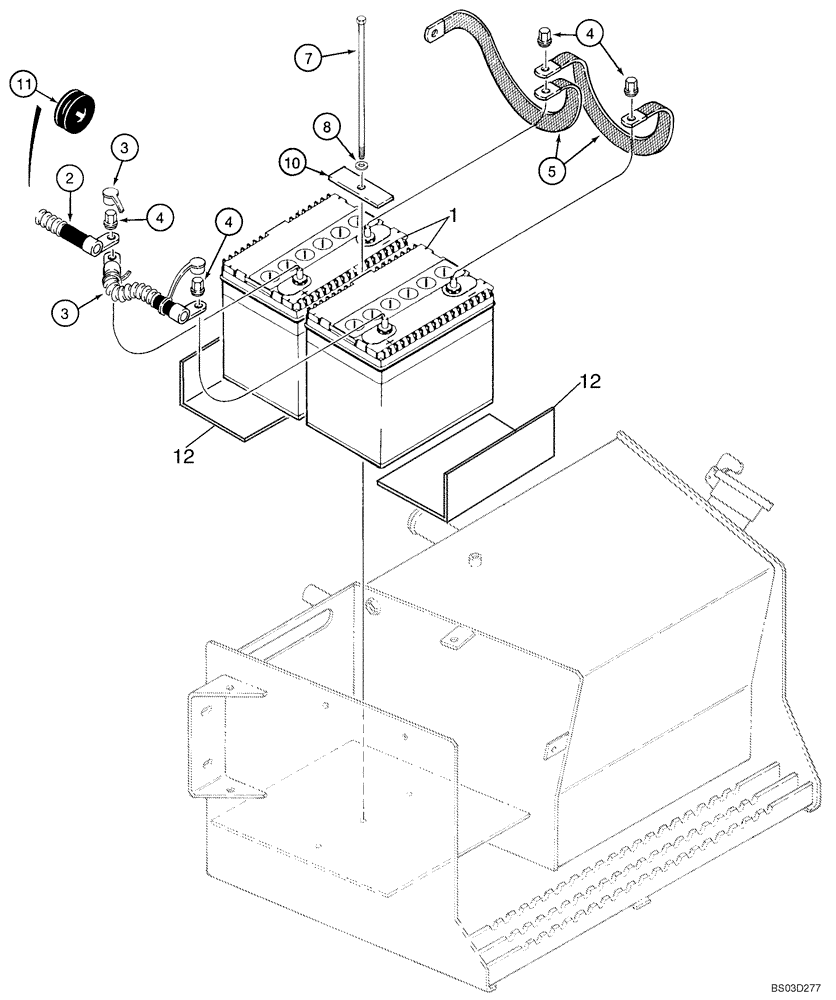

Запчасти Case 570MXT (04-06) - BATTERY, DUAL - COLD START (04) - ELECTRICAL SYSTEMS

1

BMF28S

BATTERY, DRY

BATTERY DRY

2шт.

2

184498A1

CABLE

Positive

1шт.

3

184497A1

CABLE

Positive Jumper

1шт.

4

D126409

NUT,Hex, M14, 20mm OD, 3/8" - 16

4шт.

5

D73383

STRAP

Flat

2шт.

7

814-10245

BOLT,Hex, M10 x 1.5 x 245mm, Cl 8.8

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

10

250854A1

STRAP

1шт.

11

257279A1

GROMMET

Battery Cable; Mounts In Chassis Side Channel

2шт.

12

408535A1

PLATE

Battery; Support

2шт.
