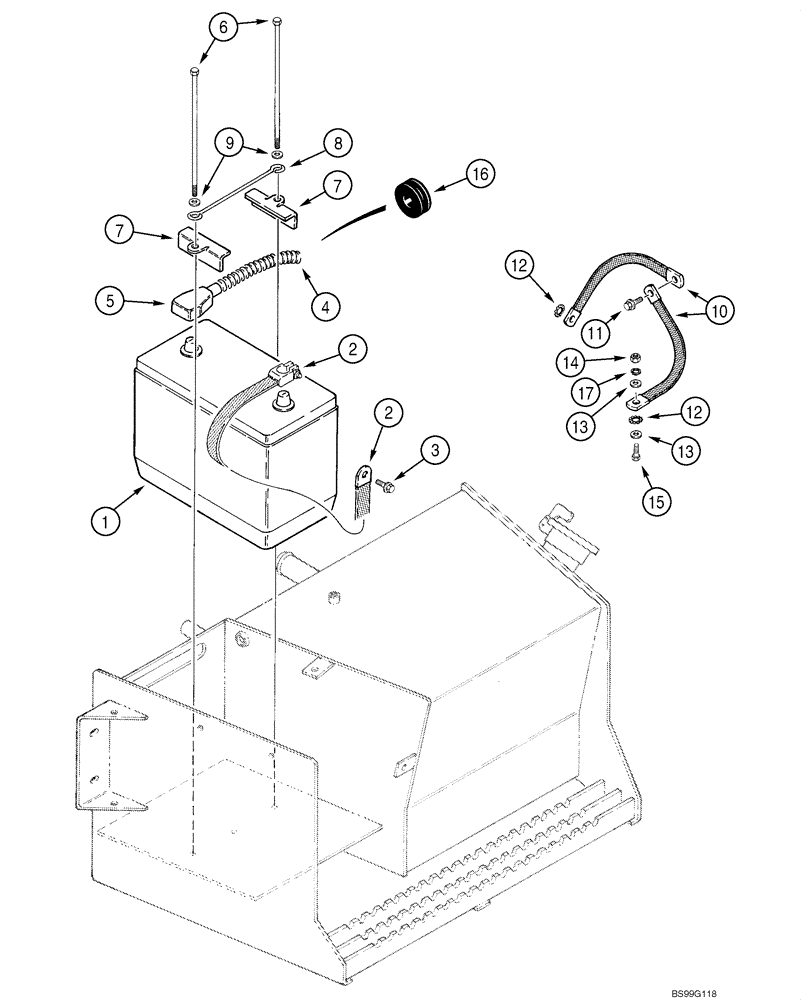

Запчасти Case 570MXT (04-05) - BATTERY - CABLES (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

12V; Models Without Cold Start

1шт.

2

D83485

CABLE,300mm L

Negative Ground

1шт.

3

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

Negative battery cable ground, bolt to chassis

1шт.

4

144171A1

CABLE

1500 mm; Positive; Incl. 5

1шт.

5

383619R1

COVER

1шт.

6

814-10245

BOLT,Hex, M10 x 1.5 x 245mm, Cl 8.8

2шт.

7

D125079

BRACKET

Battery Hold-Down

2шт.

8

D55561

RETAINER

1шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

10

D127018

STRAP

2шт.

11

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

12

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

2шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

16

257279A1

GROMMET

Battery Cable; Mounts In Chassis Side Channel

2шт.

17

892-11008

LOCK WASHER,8mm ID

1шт.
