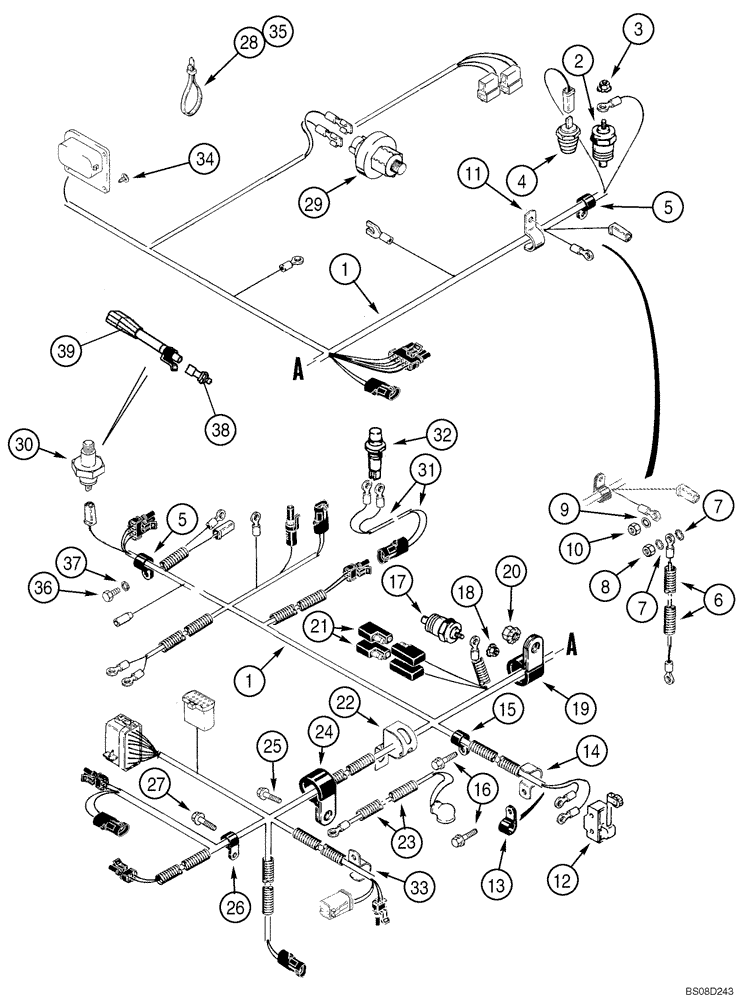

Запчасти Case 570MXT (04-04) - HARNESS, ENGINE - MOUNTING AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

413596A1

HARNESS

Engine; Models W/O Air Conditioning; Packard Connectors At Trans. Control Valve & 4WD Solenoids; For Service Order 282015A5 Harness, Ref 1; D139175 Backup Alarm Harness; and 284912A1 4WD Diode Harness; Models W/O Husco Ldr Valve

1шт.

87452515

WIRE HARNESS

Engine; Models W/O Air Conditioning; Deutsch Connectors At Trans. Control Valve & 4WD Solenoids; For Service Also Order 87450931 4WD Trans. Jumper Harness, 87456948 FWD/Rev Trans. Jumper Harness; Models W/Husco Ldr Valve

1шт.

413598A1

HARNESS

Engine; W/Air Conditioning; Packard Connectors At Trans. Control Valve & 4WD Solenoids; For Service Order 282015A5 Harness, Ref 1; 186607A1 A/C Adapter Harness; D139175 Backup Alarm Harness; and 284912A1 4WD Diode Harness; Models W/O Husco Ldr Valve

1шт.

87452517

WIRE HARNESS

Engine; Models W/Air Conditioning; Deutsch Connectors At Trans. Control Valve & 4WD Solenoids; For Service Also Order 87450931 4WD Trans. Jumper Harness, 87456948 Fwd/Rev Trans. Jumper Harness; Models W/Husco Ldr Valve

1шт.

87450931

WIRE HARNESS

4WD Transmission Jumper Harness; 1 Packard / 1 Deutsch; Attaches to 4WD Connection On Main Chassis Harness

1шт.

87456948

WIRE HARNESS

Fwd/Rev Transmission Jumper Harness; 1 Packard / 2 Deutsch; Attaches to Transmission Control Valve Solenoid Connection On Main Chassis Harness

1шт.

1

282015A5

HARNESS

Engine; Models Without Air Conditioning; Packard Connectors At Transmission Control Valve and 4WD Solenoids; Models Without Husco Loader Valve

1шт.

2

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Engine Water Coolant Temperature

1шт.

3

193-1000

NUT,Keps, w/LW,#10-32

1шт.

4

1345488C3

TEMPERATURE SWITCH

Coolant Temperature

1шт.

5

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

2шт.

5

D147383

CLIP,5/8" J

J-Clamp, 5/8; Left-Hand Side of Engine

1шт.

6

D143830

CABLE

, Serial Range: Alternator-Starter

1шт.

7

493-21033

LOCK WASHER,Int Tooth, 5/16"

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

9

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

10

824-1405

NUT,M5, Cl 5

1шт.

11

D147383

CLIP,5/8" J

J-Type, 5/8; Use Existing Hardware; If Used

1шт.

11

87032428

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, J Type

If Used

1шт.

12

D137363

SWITCH

Return To Dig; For Mounting, See Figure 09-04

1шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

14

D147383

CLIP,5/8" J

J-Type, 5/8; If Used

1шт.

14

87032428

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, J Type

If Used

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

17

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission Temperature

1шт.

18

193-1000

NUT,Keps, w/LW,#10-32

1шт.

19

242999A1

CLAMP

1шт.

20

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

21

L71879

DIODE ELEMENT,400V, 3A

2шт.

22

192196A2

CLAMP

Attaches to Backup Alarm Wire

1шт.

23

184188A1

HARNESS

1шт.

24

49773

CLAMP

1шт.

25

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

26

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

If Used; For Brake Cable Bracket, See Figure 07-06

1шт.

26

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

If Used

1-2шт.

27

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

27шт.

29

1983233C1

RESTRICTION SWITCH

SWITCH, Air Restriction

1шт.

30

277016A1

PRESSURE SWITCH

Oil, M10, Incl. 30A; If used

1шт.

30a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

Not Illustrated

1шт.

31

123809A2

WIRE HARNESS

Clutch Cutout; Transmission Gear Shift Lever; Incl 31A, 31B

1шт.

31a

246526A1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

31b

NSS

NOT SOLD SEPARAT

Eye; Not Illustrated

2шт.

32

123097A1

SWITCH

Clutch Cutout; Transmission Gear Shift Lever; For Lever and Knob, See Figure 06-17

1шт.

33

D147383

CLIP,5/8" J

J-Type, 5/8; If Used

1шт.

33

87032428

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, J Type

If Used

1шт.

34

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

2шт.

35

305342A1

STRAP,450mm L

450 mm (18 in); Air Filter Restriction Branch to Air Filter Inlet Tube

1шт.

36

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

37

892-11008

LOCK WASHER,8mm ID

1шт.

38

2852735

PRESSURE SWITCH,Oil Pressure

Oil Pressure; If Used

1шт.

39

87650813

WIRE HARNESS

Harness, Jumper; Used With Ref. 38 2852735 Sensor

1шт.
