Запчасти Case 570MXT (04-03) - STARTER MOUNTING - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

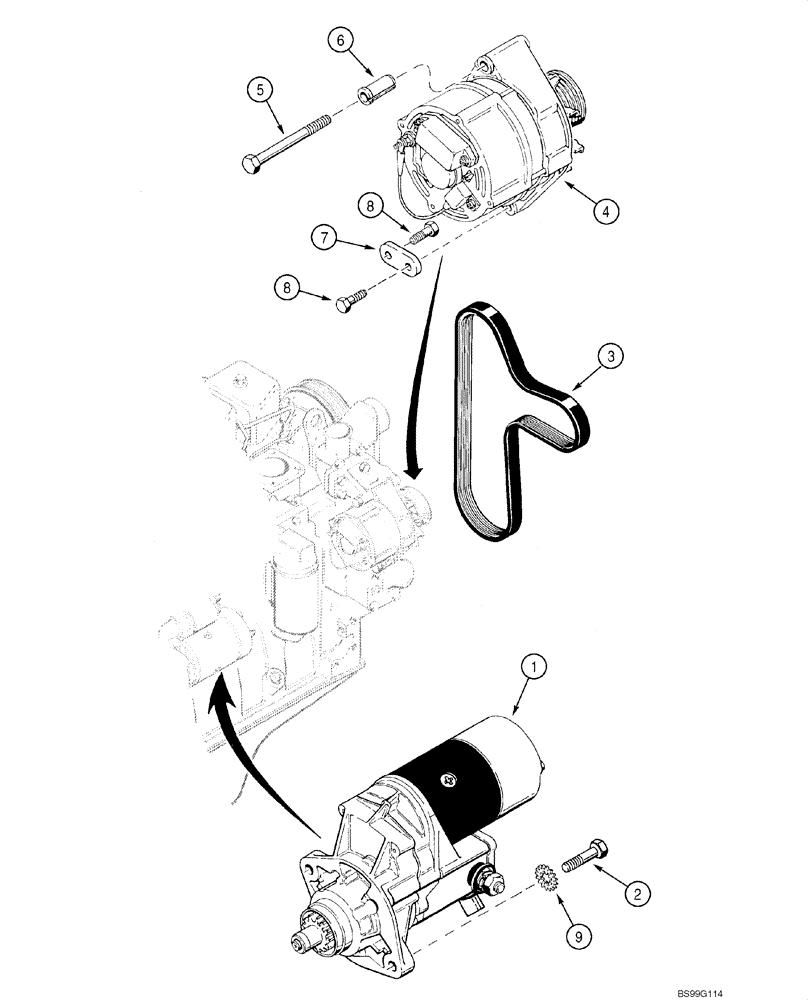

Схема запчастей Case 570MXT - (04-03) - STARTER MOUNTING - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS
5
1
6
3
8
2
8
9
4
7

Артикул

Название

Примечание

Количество

1

86982709

STARTER MOTOR,12V, 2.5kW

See Figure 04-01; Replaces 1987559C1

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured,Starter, 12 volt 2.5KW

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

1

87350916

REMAN-STARTER

Remanufactured, Parts On This Page Do Not Apply to Remanufactured Assy

1шт.

1

87350918

CORE-STARTER

Return Part Number, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

3

86982450

V-BELT

Alternator And Fan

1шт.

4

A187873

ALTERNATOR,12V, 65A

See Figure 04-02

1шт.

4

A187873GV

ALTERNATOR

1шт.

5

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

6

J902469

SPACER

1шт.

7

J903089

SUPPORT

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

9

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

Ground Strap

2шт.

Выбрано товаров: 16
