Запчасти Case 570MXT (03-06) - FUEL INJECTION PUMP AND DRIVE - 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

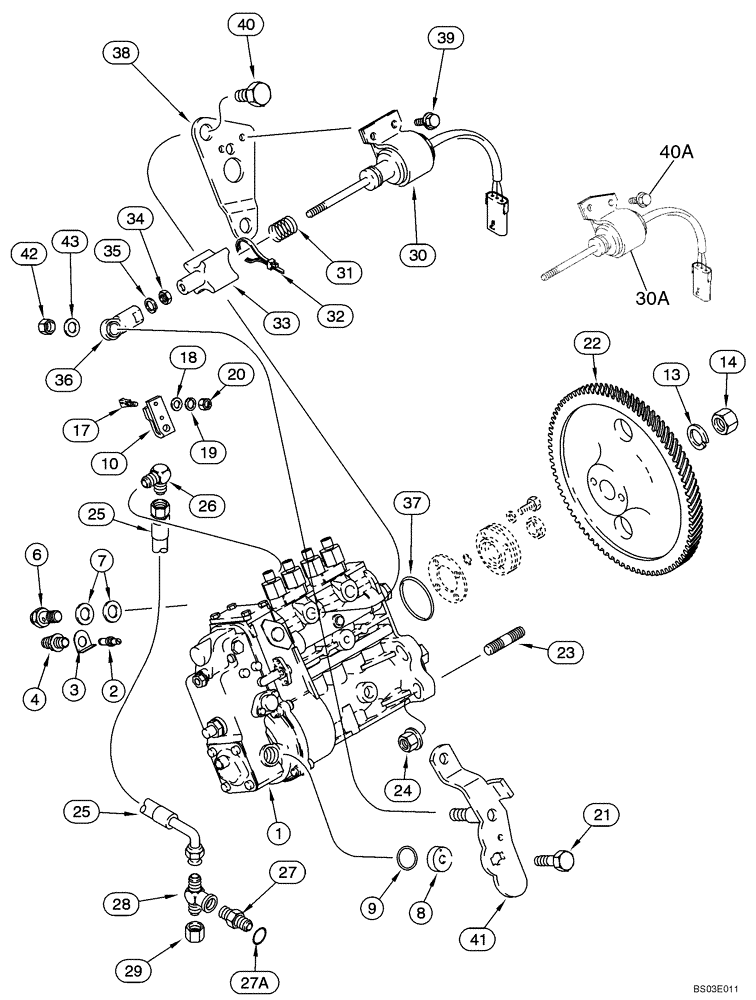

Схема запчастей Case 570MXT - (03-06) - FUEL INJECTION PUMP AND DRIVE - 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
27a
4
37
21
8
43
40a
25
38
39
31
10
7
34
24
30a
33
36
35
30
41
1
9
20
13
27
28
17
22
3
26
32
42
29
25
6
40
19
2
18
14
23

Артикул

Название

Примечание

Количество

1

J930143

PUMP, FUEL INJECTION

PUMP, INJECTION 4-390 Emission Certified Engine, Incl. 2 - 21, If Used

1шт.

1

JR930143

REMAN-INJECTION PUMP

4-390 Emission Certified Engine, No Longer Available, Order JR990615

1шт.

1

JC930143

CORE-INJECTION PUMP

Return Part Number

1шт.

1

J990615

PUMP, FUEL INJECTION

PUMP, INJECTION 4-390 Emission Certified Engine, Incl. 2 - 21, If Used

1шт.

1

JR990615

REMAN-INJECTION PUMP

Remanufactured Pump Assembly 4-390 Emission Certified Engine

1шт.

1

JC990615

CORE-INJECTION PUMP

Return Part Number, 4-390 Emission Certified Engine

1шт.

1

J930154

PUMP

4T-390 Emission Certified Engine, Incl. 2 - 21, If Used

1шт.

1

JR930154

REMAN-INJECTION PUMP

4T-390 Emissions Certified Engine, If Used

1шт.

1

JC930154

CORE-INJECTION PUMP

Return Part Number

1шт.

1

J991960

PUMP

4T-390 Emission Certified Engine, Incl. 2 - 21, If Used

1шт.

1

JR991960

REMAN-INJECTION PUMP

Remanufactured Pump Assembly; 4T-390 Emissions Certified Engine, If Used

1шт.

1

JC991960

CORE-INJECTION PUMP

Return Part Number, 4T-390 Emission Certified Engine

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

6

J932096

VALVE

Used With J930143 And J930154 Pump Assys

1шт.

6

87409051

VALVE

Used With J990615 And J991960 Pump Assys

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

2шт.

8

691292C1

RETAINER

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

10

87438537

LEVER

Replaces 1808728C1

1шт.

13

A77775

LOCK WASHER

1шт.

14

A41852

LOCK NUT

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

892-11006

LOCK WASHER,M6

1шт.

20

829-1306

NUT,M6, Cl 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

22

J934636

PINION

1шт.

23

86991263

STUD,M10 x 1.5 x 55

(2-5/32"); Replaces J915036

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

26

A77512

ELBOW

male

1шт.

27

J932321

UNION

Incl. 27A

1шт.

27a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

28

J924346

TEE

1/8 PT x 7/16

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

1шт.

30

J932529

SOLENOID

12V, 1-3/4 in, Incl. Ref 31 - 36; No Longer Used, Order J991167, Ref 30A

1шт.

30

87420952

SOLENOID VALVE

12V, Incl. Ref 31 - 36; If Used

1шт.

30

87420952R

REMAN-SOLENOID

570MXT

1шт.

30

87420952C

CORE-SOLENOID

Return Part Number

1шт.

30a

J991167

SOLENOID

12 V, 2 in, Incl. Ref 31 - 36; If Used

1шт.

30a

87420952R

REMAN-SOLENOID

570MXT

1шт.

30a

87420952C

CORE-SOLENOID

Return Part Number

1шт.

31

311100A1

SPRING

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

33

J925171

BOOT

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

492-11025

LOCK WASHER,1/4"

1шт.

36

311099A1

JOINT

Used With J932529 Solenoid, Ref 30

1шт.

36

87420849

END,1/4" - 28

Used With J991167 Solenoid, Ref 30A and 87420952

1шт.

37

J935032

SEAL

80 mm ID

1шт.

38

J930590

SUPPORT

Used With J932529 Solenoid, REF 30

1шт.

39

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

Used with J932529 Solenoid, Ref 30

2шт.

40

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

Used with J932529 Solenoid, Ref 30

2шт.

40a

J991132

SCREW,Hex, M16 x 1.5 x 16mm, Gr 8.8

Used With J991167 Solenoid, REF 30A and 87420952

2шт.

J802998

PACKAGE,SERVICE

Incl. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

Lever

1шт.

42

832-41306

NUT,M6 x 1, Cl 10

1шт.

43

J934022

WASHER

1шт.

Выбрано товаров: 60
