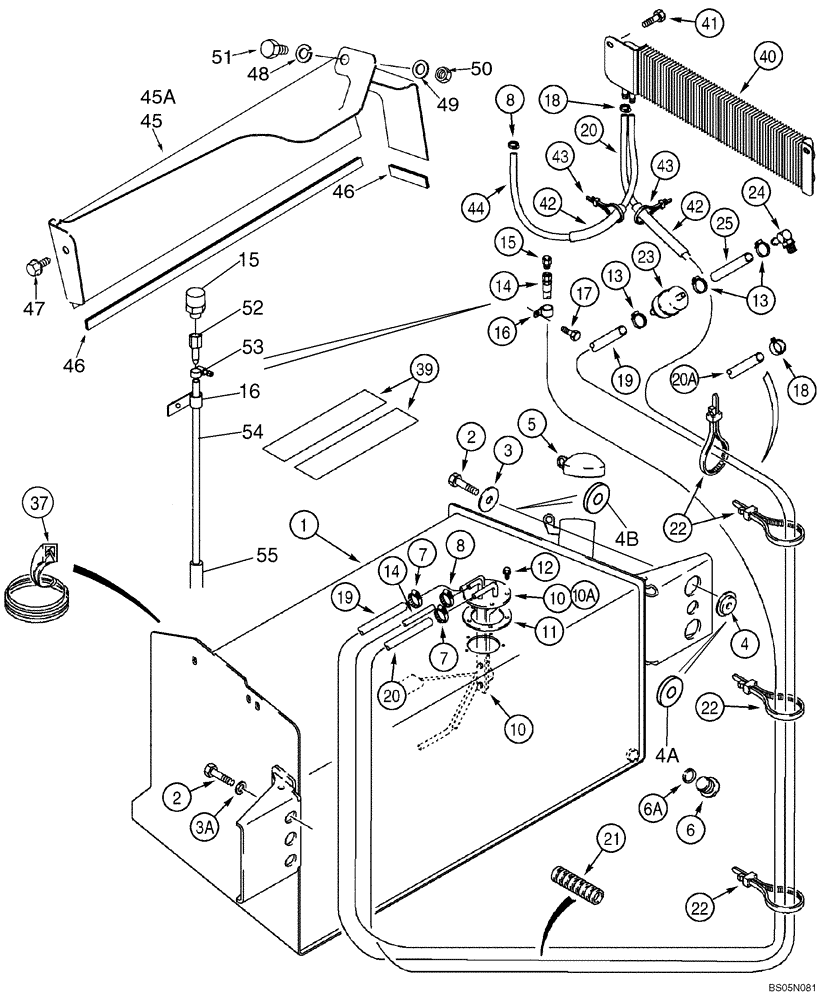

Запчасти Case 570MXT (03-01) - FUEL LINES, RESERVOIR - FILTER, IN-LINE FUEL (03) - FUEL SYSTEM

1

360629A6

FUEL TANK

31 gal; Incl. REF 6; Incl. Left Hand Steps; Mounts to Left Hand Side of Chassis; If Used

1шт.

1

87429259

TANK

31 gal; Incl. REF 6; Incl. Left Hand Steps; Mounts to Left Hand Side of Chassis; With Sensor Tubes Welded On Tank; If Used; Replaces 87419482

1шт.

1a

360630A4

FUEL TANK

40 gal; Incl. REF 6; Optional; Incl. Left Hand Steps; Mounts to Left Hand Side of Chassis; Not Illustrated; If Used

1шт.

1a

87429264

TANK

40 gal; Incl. REF 6; Optional; Incl. Left Hand Steps; Mounts to Left Hand Side of Chassis; With Sensor Tubes Welded On Tank; If Used; Not Illustrated; Replaces 87419585

1шт.

2

443375A1

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

M20 x 60; Incl. Loctite; Replaces 627-20060, Without Loctite

4шт.

3

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

3a

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

4

409472A1

SPACER

21 ID x 55.5 OD x 8.25 mm thk, With 40 mm dia x 6.6 mm thk Raised Surface; If Used; Left Hand Side of Tank

2шт.

4a

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

SPACER 22 ID x 57 OD x 8.25 mm thk, Flat; Used With Ref 4B; If Used

2шт.

4b

185926A1

SPACER,21mm x 40mm x 6.6mm Th

21 ID x 40 OD x 6.6 mm thk, Used W/Ref 4A; If Used

2шт.

5

87335469

LOCKABLE FUEL CAP,Male, Lockable

Replaces 130049A1 Fuel Cap Used On Some Models

1шт.

6

86625138

PLUG,7/18" - 14

Drain, Includes Ref. 6A; Included with Ref 1, 1A

1шт.

6a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

2шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

10

380440A1

SENDER UNIT

SENDER Fuel Level; 31 Gallon Tank; Incl. Grounding Nut, Lock Washer, Flat Washer; With Tubes On Sensor; If Used

1шт.

10

86989676

SENDER UNIT

Fuel Level; Used With 87419482 or 87429259 Tank; Incl. Seal, Grounding Nut, Lock Washer, Flat Washer; Without Tubes On Sensor; If Used

1шт.

10a

380442A1

SENDER UNIT

SENDER Fuel Level; 40 Gallon Tank; Incl. Grounding Nut, Lock Washer, Flat Washer; With Tubes On Sensor; If Used

1шт.

10a

87408480

SENDER UNIT

Fuel Level; Used With 87419585 or 87429264 Tank; Incl. Seal, Grounding Nut, Lock Washer, Flat Washer; Without Tubes On Sensor; If Used

1шт.

11

188311A2

GASKET,2.38mm Thk

If Used

1шт.

12

D75465

SCREW,#10 - 32 x 5/8"

No. 10 NF x 5/8

5шт.

13

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

3шт.

14

234892A1

HOSE

HOSE,LARGE 1/4 ID x 1100 mm (43-5/16 in), 1/4 NPTF Fem End x Cut Hose End; Vent; If Used

1шт.

15

130047A1

BREATHER ASSY.

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

17

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

1шт.

18

1348264C1

HOSE CLAMP

3/8 ID

1-2шт.

19

234888A1

FUEL HOSE,12.70 mm ID x 1280.00 mm , SAE 30R7

Fuel Supply, to Fuel Lift Pump

1шт.

20

244552A1

FUEL HOSE,9.53 mm ID x 2550.00 mm, SAE 30R7

Return; Fuel Cooler to Tank; Models Without Turbocharged Engine

1шт.

20a

284452A2

FUEL HOSE,9.53 mm ID x 1900.00 mm, SAE 30R7

Fuel Return, Attaches to Injector Return Line on Engine; Models With Turbocharged Engine

1шт.

21

130048A1

PROTECTOR

203 mm (8 in); If Used

1шт.

21

399004A1

HOSE PROTECTION,38.90 mm ID x 270.00 mm

If Used

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

23

194199A1

FUEL FILTER

In-Line Fuel Filter

1шт.

24

410847A1

FITTING

12 stem x 1/4 PT; With Loctite; To Engine Fuel Lift Pump; Replaces 217-372, Without Loctite

1шт.

25

393827A1

FUEL HOSE,12.70 mm ID x 152.00 mm, SAE 30R7

Fuel Filter to Lift Pump

1шт.

37

D40442

MOLDING

305 mm (12 in); Cut From F42827

1шт.

39

D80270

ANTI-SKID STRIP,635mm / 25 Inch

635 mm (25 in); 31 Gallon Tank

2шт.

39

307348A1

ANTI-SKID STRIP

700 mm (27-9/16"), 40 gallon tank

2шт.

40

379499A2

COOLER

1шт.

41

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

42

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

2шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

44

303922A1

FUEL HOSE

1225 mm (48-1/4 in); Injection Pump to Fuel Cooler

1шт.

45

189602A3

COVER

Mounted Above Fuel Reservoir; Models Without Clam Bucket Or Auxiliary Hydraulics

1шт.

45a

188009A3

COVER

Mounted Above Fuel Reservoir; Models With Clam Bucket

1шт.

46

191046A1

ORNAMENTAL STRIP

650 mm; Cut From A165860; Apply 75 mm (3 in) Of Trim To Front Lower Edge, 240 mm (9-1/2 in) Trim To Outside Lower Edge Of Cover

1шт.

47

307577A1

BOLT

M8 x 20

1шт.

48

892-11010

LOCK WASHER,M10

1шт.

49

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

50

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

51

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

Used with 188009A3 Cover on Models with Three Spool Loader Valve

1шт.

51

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Used with 189602A3 Cover On Models With Two Spool Loader Valve

1шт.

52

217-117

FITTING,1/4" Hose x 1/4" NPTF, Fem, Barbed

If Used

1шт.

53

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

If Used

1шт.

54

87362937

HOSE,6.35mm ID x 1080mm L, SAE 30R6

1/4 ID x 1080 mm; Cut Hose Both Ends; Fuel Vent; If Used

1шт.

55

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

Hose Sleeve; If Used

1шт.
