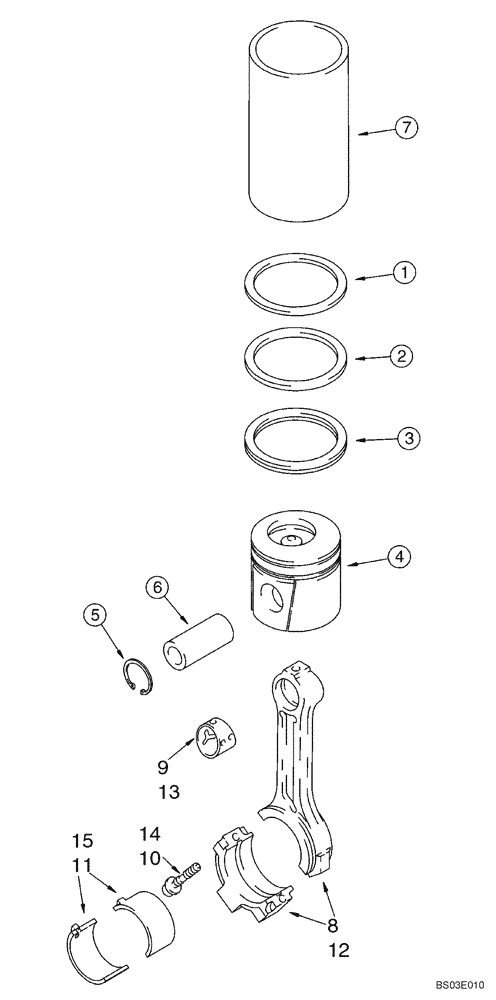

Запчасти Case 570MXT (02-27) - PISTONS AND CONNECTING ROD - 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
J800345
PISTON & RINGS KIT
Standard, Incl. 1 - 5, J804930; Use To Service Piston 3934975
4шт.
J800349
PISTON & RINGS KIT
Standard, Incl. 1 - 5, J804930; Use To Service Piston 3934976
4шт.
J804980
PISTON & RINGS KIT
Standard, Incl. 1 - 5, J804930; Use To Service Piston 3932514
4шт.
J804930
PISTON RING SET
Incl. 1 - 3
1шт.
1
NSS
NOT SOLD SEPARAT
Ring, Top
1шт.
2
NSS
NOT SOLD SEPARAT
Ring, Middle
1шт.
3
NSS
NOT SOLD SEPARAT
Ring, Oil
1шт.
4
NSS
NOT SOLD SEPARAT
Piston, Standard
1шт.
5
J920691
SPECIAL RING
2шт.
6
J934047
PIN,40mm OD x 82.68mm L
1шт.
J804981
PISTON & RINGS KIT
0,5 mm, Oversize, Incl. 1 - 5
4шт.
J804931
PISTON RING SET
0,5 mm, Incl. 1 - 3
1шт.
1
NSS
NOT SOLD SEPARAT
Ring, Top
1шт.
2
NSS
NOT SOLD SEPARAT
Ring, Middle
1шт.
3
NSS
NOT SOLD SEPARAT
Ring, Oil
1шт.
4
NSS
NOT SOLD SEPARAT
Piston, Oversize
1шт.
5
J920691
SPECIAL RING
2шт.
6
J934047
PIN,40mm OD x 82.68mm L
1шт.
J804982
PISTON & RINGS KIT
1,0 mm, Oversize, Incl. 1 - 5
4шт.
J804932
PISTON RING SET
1,0 mm, Incl. 1 - 3
1шт.
1
NSS
NOT SOLD SEPARAT
Ring, Top
1шт.
2
NSS
NOT SOLD SEPARAT
Ring, Middle
1шт.
3
NSS
NOT SOLD SEPARAT
Ring, Oil
1шт.
4
NSS
NOT SOLD SEPARAT
Piston
1шт.
5
J920691
SPECIAL RING
2шт.
6
J934047
PIN,40mm OD x 82.68mm L
1шт.
7
J904166
SLEEVE
Connecting Rods
1шт.
8
J942581
ROD, CONNECTING
Incl. 8 - 10; N.A. Built Engines Prior to SN 46231395; Great Britain Built Engines Prior to SN 21486151; Machined Rods; Machined Rods and Fractures Rods Can Not Be Used In The Same Engine Due To Weight Differences
4шт.
8
JR942581
REMAN-CONNECTING ROD
Machined Rod. Built Engines Prior to SN 46231395
4шт.
8
JC942581
CORE-ROD CONNECTING
Return Number
4шт.
9
J941476
BUSHING
1шт.
10
J900919
BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9
M11 x 59
2шт.
11
A77465
BEARING SET
Standard
4шт.
11
A77466
BEARING SET
0,25 mm, Oversize
4шт.
11
A77467
BEARING LINER
0,50 mm, Oversize
4шт.
11
A77468
BEARING SET
0,75 mm, Oversize
4шт.
11
A77469
BEARING SET
1,0 mm, Oversize
4шт.
12
87413279
ROD, CONNECTING
Incl. 12 - 14; N.A Built Engines SN 46231395 And After; Great Britain Built Engines SN 21486150 And After; Fractured Split; Machined Rods and Fractures Rods Can Not Be Used In The Same Engine Due To Weight Differences
4шт.
12
87417069
REMAN-CONNECTING ROD
Built Engines SN 46231395 And After, Fractured Split
4шт.
12
87417070
CORE-ROD CONNECTING
Return Number
4шт.
13
87403209
BUSHING,40.03mm ID x 43.1mm OD x 38.1mm L
1шт.
14
87413283
BOLT,Flng, M11 x 1.25 x 58mm, Cl 10.9
2шт.
15
87425525
CRANKSHAFT BEARING
BEARING, CON. ROD, Standard
4шт.
15
87425526
CRANKSHAFT BEARING
BEARING, CON. ROD, 0,25 mm, Oversize
4шт.
15
87425527
BEARING SET
BEARING, CON. ROD, 0,50 mm, Oversize
4шт.
15
87425528
CRANKSHAFT BEARING
BEARING, CON. ROD, 0,75 mm, Oversize
4шт.
15
87425529
CRANKSHAFT BEARING
BEARING, CON. ROD, 1,00 mm, Oversize
4шт.
Выбрано товаров: 47
