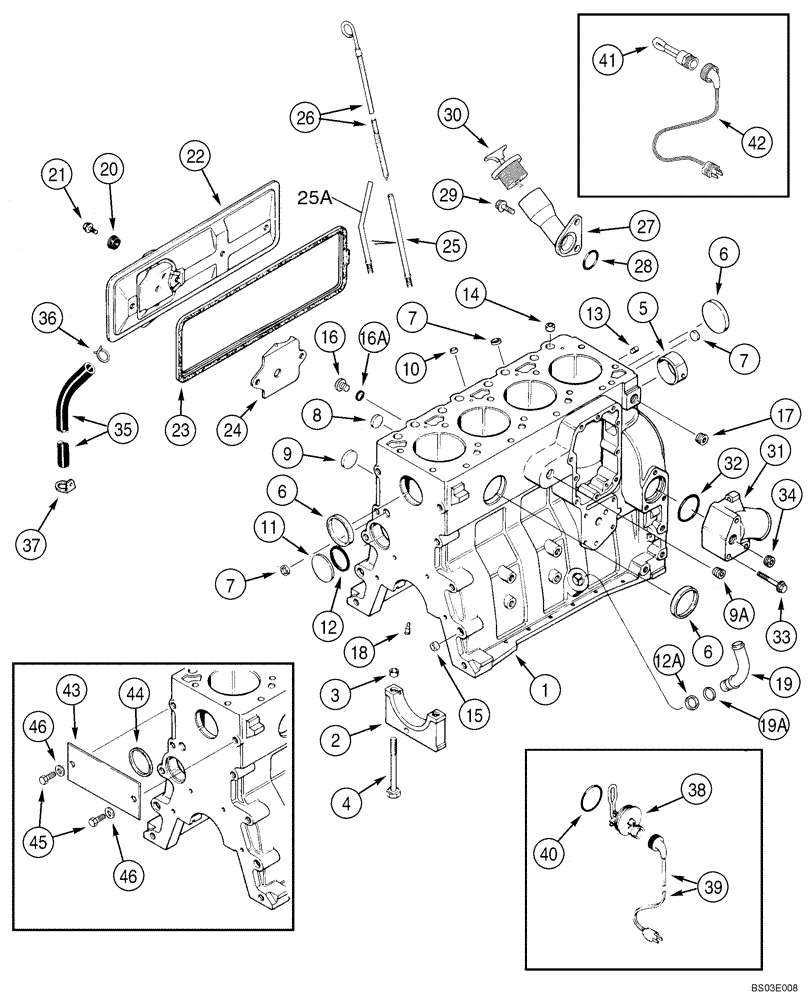

Запчасти Case 570MXT (02-22) - CYLINDER BLOCK - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

380457A1

ENGINE

Complete Engine, Includes All Parts Except Fan, Air Cleaner, Muffler and Exhaust Manifold; For Service Order 234277A2 Basic Engine

1шт.

380457A1R

ENGINE, EXCHANGE

ENGINE (EXCHANGE) Complete, Remanufactured; N.A. Only

1шт.

4T-390C

CORE-REPLACEMENT ENG

Return Number, Complete

1шт.

234277A2

BASIC ENGINE

Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner and Turbocharger; See Note

1шт.

234277A2R

REMAN-BASIC ENGINE

Reman For New PN 234277A2

1шт.

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

J933648

SHORT ENGINE

Short; Includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

J933648R

SHORT ENGINE

Remanufactured, Short

1шт.

J933648C

CORE-ENGINE

Return Number

1шт.

87605128

ENGINE

Remanufactured

1шт.

1

87444172

BLOCK ASSY.

Stripped, Incl. 2 - 8; Replaces J932012; Also Order J933220

1шт.

2

87579994

BEARING ASSY

Main Bearing Cap; Incl. 3; Replaces J936791

5шт.

3

J900068

BEARING WASHER

18 mm OD

2шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing, See Figure 02-21

1шт.

6

A77782

PLUG

58 mm

3шт.

7

J900956

PLUG

18 mm OD

3шт.

8

86625124

PLUG,Cup, 1", Stainless

Replaces 41-1616

2шт.

J933220

PACKAGE,SERVICE

Hardware Kit, Incl 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

1шт.

9a

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC Replaces A77505

1шт.

10

J900955

PLUG

10 mm OD

3шт.

11

172599

PLUG,Exp, 2 3/8"

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

22 mm OD

3шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

10 mm, Incl. 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

1шт.

17a

J678921

PLUG

14 mm, Incl. 17B, Not Illustrated; Not Used In This Application

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Not Illustrated

1шт.

17c

J932296

PLUG

Incl. 17D, Not Illustrated; Not Used In This Application

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

Not Illustrated

1шт.

18

J937214

NOZZLE CAP

4 Used In This Application

6шт.

19

J931973

TUBE,0.875" OD

1шт.

19a

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

20

J928759

SEALING WASHER

2шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J936186

COVER

Incl. 24

1шт.

23

J283767

GASKET,7.4mm Thk

1шт.

24

J907586

BAFFLE

1шт.

25

J937535

TUBE,0.375" OD

No Longer Available, Order J992053, REF 25A

1шт.

25a

J992053

TUBE,9.52 mm OD x 257, 52 mm L

1шт.

26

J937534

DIPSTICK

1шт.

27

CASJ934912

TUBE

North American Part Number is a TUBE (Mfr Code CAS)

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID

1шт.

29

844-12020

BOLT,Hvy Hex, M12 x 20mm, Cl 8.8

2шт.

30

A77424

FILLER CAP

1шт.

31

J934877

HYD CONNECTOR

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

34

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

2шт.

35

J918612

TUBE,360.00 mm

1шт.

36

J904230

CLAMP,25.4mm

1шт.

37

J928989

CLIP

1шт.

196803A1

KIT

Engine Block Heater, 120V; Incl. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

Element

1шт.

39

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

40

J910517

O-RING

1шт.

124340A1

KIT

Engine Block Heater, 240V, Europe Only; Incl. 38 - 40

1шт.

38

J916662

UNIT HEATER

1шт.

39

J905114

ELECTRIC CABLE

1шт.

40

J910517

O-RING

1шт.

309651A1

KIT

Engine Block Heater, 120V; Incl. 41, 42

1шт.

41

NSS

NOT SOLD SEPARAT

Element

1шт.

42

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

309652A1

KIT

Engine Block Heater, 240V, Europe Only; Incl. 41, 42

1шт.

41

NSS

NOT SOLD SEPARAT

Element

1шт.

42

J905114

ELECTRIC CABLE

1шт.

323698A1

KIT

Expansion Plug Repair Kit; Incl. 43 - 46; Not Part of Engine Assy.

1шт.

43

322984A1

PLATE

1шт.

44

J910530

SEAL

1шт.

45

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

46

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

A77887

PACKAGE,SERVICE

Incl. 47 - 54, Not Illustrated; N.A. Built Engines Prior To SN 46231395; Great Britain Built Engines Prior to SN 21486151

1шт.

87425543

KIT

PACKAGE, SERVICE; Incl. 47 - 54, Not Illustrated; N.A Built Engines SN 46231395 And After; Great Britain Built Engines SN 21486150 And After

1шт.

47

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

See Figure 02-26

4шт.

48

J934047

PIN,40mm OD x 82.68mm L

See Figure 02-26

4шт.

49

A77465

BEARING SET

See Figure 02-26

4шт.

50

A77405

CRANKSHAFT BEARING

See Figure 02-24

4шт.

51

A77896

BEARING SET

See Figure 02-24

1шт.

52

A77975

GASKET KIT

See Figure 02-28; Used in A77887 Package, Service

1шт.

52

87434406

GASKET

See Figure 02-28; Replaces 87405727; Used in 87425543 Package, Service

1шт.

53

J283333

CYLINDER HEAD GASKET,2.32mm Thk

See Figure 02-18

1шт.

54

A77673

GASKET KIT

See Figure 02-17

1шт.
