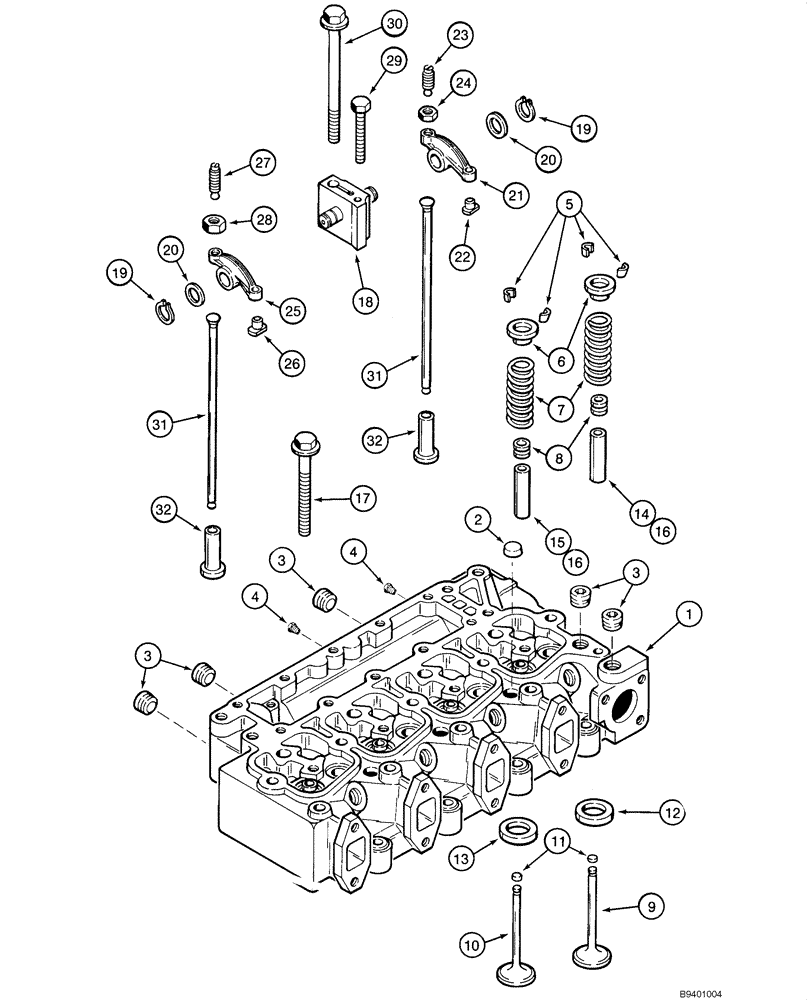

Запчасти Case 570MXT (02-19) - CYLINDER HEAD AND VALVE MECHANISM - 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

87429905

HEAD (CYLINDER)

With Valves; Incl. 1, 2, 5 - 11; Replaces J933494

1шт.

87429906

REMAN-CYLINDER HEAD

Cylinder Head

1шт.

87429907

CORE-CYLINDER HEAD

Return Part Number

1шт.

1

J933419

HEAD (CYLINDER)

Without Valves; Incl. 2; Part of J933494

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER HEAD; Without Valves; Incl. 2; Part of 87429905

1шт.

2

A77783

PLUG

21 mm OD

3шт.

3

86625118

DRAIN PLUG,1/2" - 14 NPT

Replaces 217-466

5шт.

4

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

5

CASJ900250

RETAINER

16шт.

6

J935038

RETAINER

Used With J933494

8шт.

6

87433959

RETAINER

Used With 87429905

8шт.

7

J932453

SPRING

8шт.

8

J921640

SEAL

Used With J933494

8шт.

8

87433962

SEAL

Used With 87429905

8шт.

9

J920867

VALVE

4шт.

10

J920868

VALVE

4шт.

11

J910412

WEAR PAD

Service Repair Only

1шт.

12

J906854

SEAT, VALVE

Intake, Service Repair Only

4шт.

13

J904105

SEAT, VALVE

Exhaust, Service Repair Only

4шт.

14

J904408

GUIDE

14 mm OD; Intake; Service Repair Only

4шт.

15

J904409

GUIDE

14 mm OD; Exhaust; Service Repair Only

4шт.

16

J906206

GUIDE

11 mm OD; Intake And Exhaust; Service Repair Only

8шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

10шт.

18

J922488

SUPPORT

4шт.

19

J900242

SNAP RING

8шт.

20

J900245

WASHER

8шт.

21

J910811

ROCKER

Intake; Incl. 22 -24

4шт.

22

NSS

NOT SOLD SEPARAT

Insert

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

Replaces J934086

1шт.

24

A77902

NUT

3/8 - 24 NF

1шт.

25

J910810

ROCKER

Exhaust; Incl. 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

Insert

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

Replaces J934086

1шт.

28

A77902

NUT

3/8 - 24 NF

1шт.

29

J901221

BOLT

M8 x 75

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

4шт.

31

J284377

PUSH ROD

8шт.

32

J931623

TAPPET

8шт.

33

87404692

GAUGE

Cylinder Head Bolt Length; Not Illustrated

1шт.
