(02-16) - OIL FILTER AND COOLER - 4-390/4T-390 EMISSIONS CERTIFIED ENGINE

Запчасти Case 570MXT (02-16) - OIL FILTER AND COOLER - 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

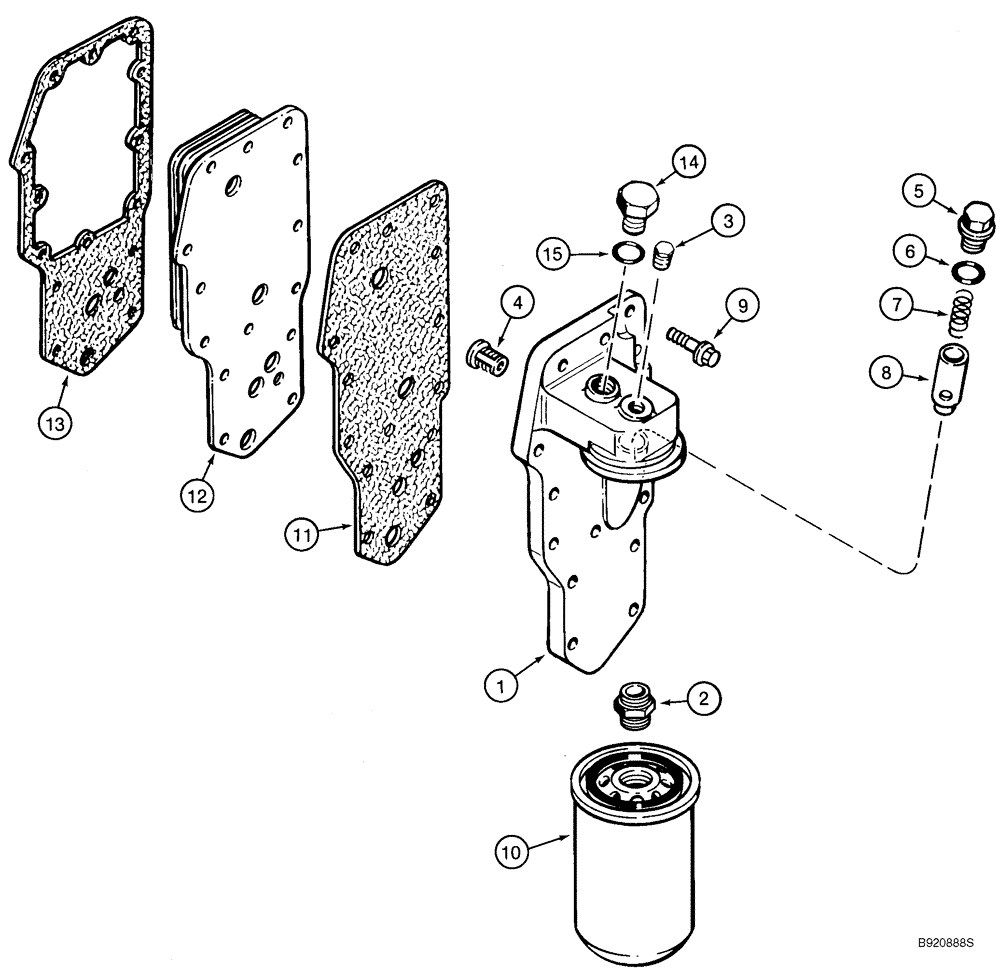

Схема запчастей Case 570MXT - (02-16) - OIL FILTER AND COOLER - 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
1
2
6
3
10
4
14
15
13
11
12
5
9
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

J918954

HEAD

Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Head

1шт.

2

J909355

ADAPTER

1шт.

3

J906619

PLUG,1/8" - 27

1/8 PT

1шт.

4

J936365

VALVE PRESSURE RELIE

1шт.

5

J915787

PLUG

1шт.

6

J929457

O-RING

23/32 ID x 7/64

1шт.

7

J918427

SPRING

1шт.

8

J918428

PLUNGER

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

Standard, If Used

1шт.

10

J934429

ENGINE OIL FILTER

Premium, If Used

1шт.

11

J942915

GASKET

1шт.

12

87416027

OIL COOLER

Replaces J921557

1шт.

13

87549580

GASKET,1.02mm Thk

Replaces J942914

1шт.

14

J919686

PLUG

12 mm; 4-390 Emissions Certified Engine Only; Incl. 15

1шт.

15

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

Replaces 238-5013

1шт.
