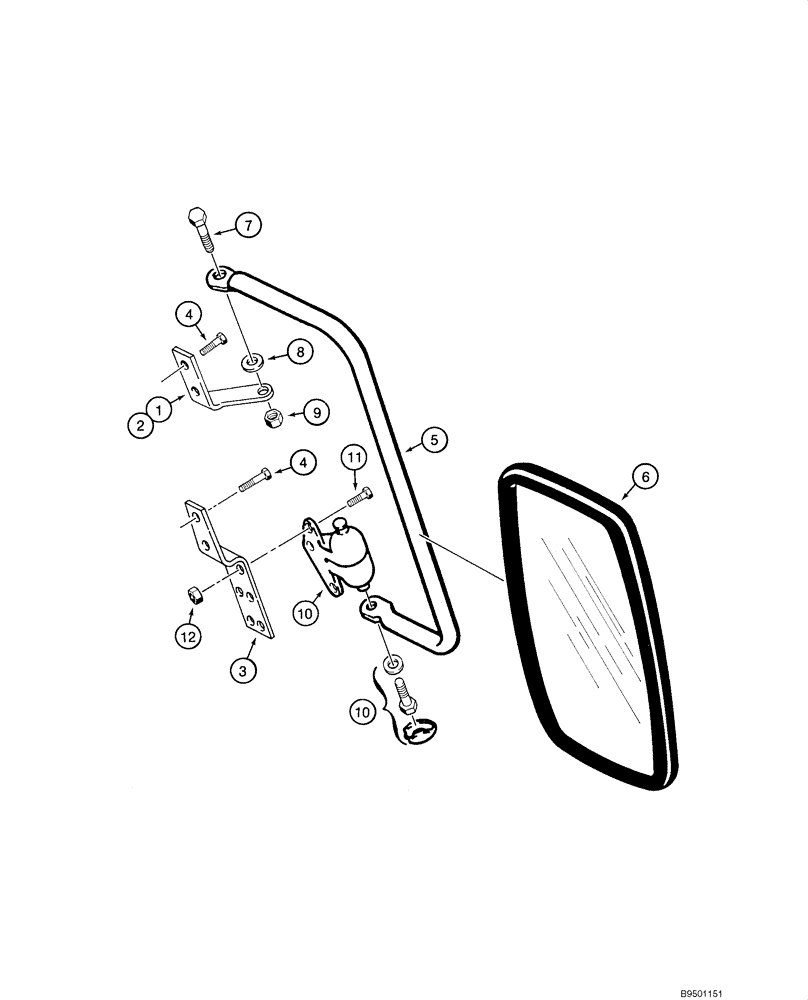

Запчасти Case 570MXT (09-57) - MIRROR, REAR VIEW - MOUNTING (CAB MODELS) (09) - CHASSIS/ATTACHMENTS

D102964

KIT

Rear View Mirror; Incl. 1 - 12

1шт.

1

D142084

BRACKET

Upper; Right-Hand

1шт.

2

D142085

BRACKET

Upper; Left-Hand; Not Illustrated

1шт.

3

D142083

BRACKET

Lower

2шт.

4

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

8шт.

5

D142086

TUBE

2шт.

6

R54682

MIRROR

Exterior

2шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

A167037

WASHER

2шт.

9

231-4115

NUT,5/16"-18, GB

2шт.

10

D142144

HINGE

Incl. Hardware

2шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

12

231-1444

NUT,1/4"-20, GB

6шт.
