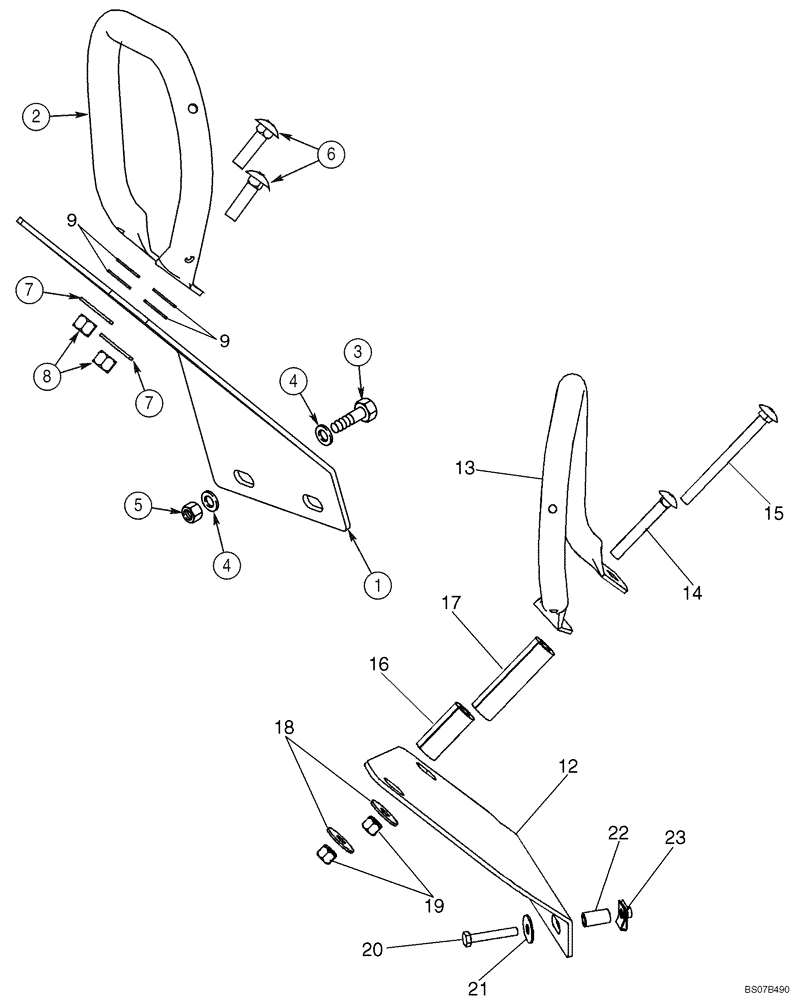

Запчасти Case 570MXT (09-56) - CANOPY, ROPS - HANDLE, GRAB (09) - CHASSIS/ATTACHMENTS

1

414677A3

PLATE

Replaces 414677A1, 414677A2; Mounts To Left-Hand Fender on Figure 09-28

1шт.

2

392930A1

GRAB RAIL

Replaces 414797A1, 414797A2

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

4

495-81001

WASHER,5/16"

4шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

2шт.

7

495-81002

WASHER,3/8"

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

12

87580820

BACKING PLATE

Plate, Handle Support; Mounts To Left-Hand Fender on Figure 09-28A

1шт.

13

87601383

GRAB RAIL

Grab Handle

1шт.

14

87602939

CARRIAGE BOLT,Reg Sq Nk, M10 x 1.5 x 80mm, Cl 8.8

M10 x 80

1шт.

15

9780090

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 125mm, Cl 8.8

1шт.

16

87580818

SPACER

58 mm long Spacer

1шт.

17

87580815

SPACER

94.5 mm long spacer

1шт.

18

495-81002

WASHER,3/8"

2шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

20

614-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

2шт.

21

495-81001

WASHER,5/16"

2шт.

22

87580819

SPACER

26 mm long Spacer

2шт.

23

833-40408

NUT,M8, U

2шт.
